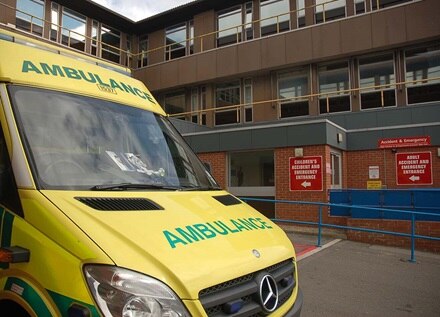

Winchester Hospital

Our new Klik lighting control system with dual supply marshalling box has saved Winchester hospital both equipment and time during the electrical installation.

Winchester Hospital

Winchester Hospital | Hager Lighting System

Our new lighting control system with dual supply marshalling box has saved Winchester hospital both equipment and time during the electrical installation.

The lighting solution provides sensors that will have both presence detection and also daylight linking in areas where there is some natural light and have just occupancy control in areas where there is none, such as corridors.

In addition, our dual supply marshalling box has saved Winchester hospital both equipment and time during the installation of essential and non-essential lighting circuits for its new 2000m2 outpatient’s clinic.

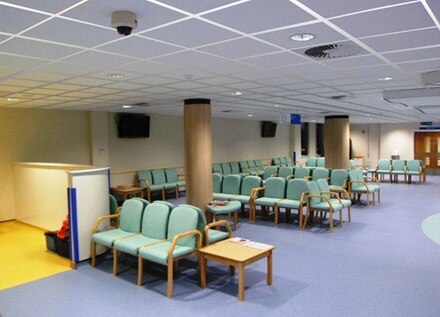

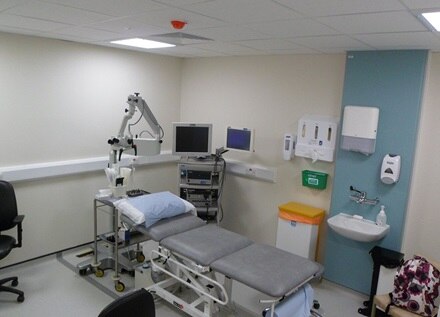

The new outpatient’s department will have a large open plan area plus a number of consulting and treatment rooms.


"Providing two lighting circuits in all of the rooms and corridors reduces the load on the essential supply if there is a main outage."
Derek Hardy, Electrical Engineer for Estates Design & Technical Services, NHS.

Using our Klik system dual linking marshalling box, both essential and non-essential lighting circuits can be fed from the same marshalling box and also be controlled by a single digital sensor and wall switch, instead of doubling up on equipment.

The sensors will have both presence detection and also daylight linking in areas where there is some natural light and have just occupancy control in areas where there is none, such as corridors. All of the circuits are wired for semi-automatic control so that a wall switch can override them where needed.

Says Derek Hardy, an electrical engineer for Estates Design & Technical Services at the NHS: “Providing two lighting circuits in all of the rooms and corridors reduces the load on the essential supply if there is a mains outage. This allows the emergency generator infrastructure to be used for more essential services such as operating theatres."

“Achieving this configuration without a dual supply marshalling box would prove far harder. A conventionally wired system would involve two light switches and/or two sensors, one for each lighting circuit. Even if marshalling boxes were used you would still need to double up which involves extra expense and time.”

By using the new dual supply marshalling box if either supply is lost, the luminaires on the essential supply side will remain on. The occupancy sensor and other control are connected to the essential side of the unit.



Hager products used in this case study

Get inspired and discover how you can use our electrical installations in your next project!

test

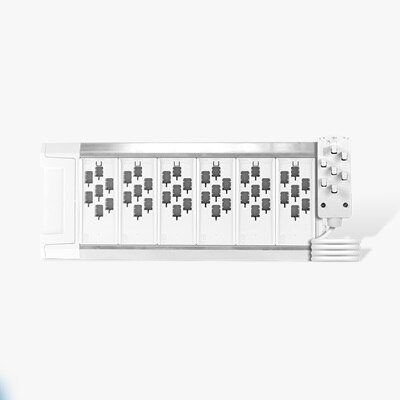

Klik Lighting Connection

Klik is a secure lighting and control connection system that provides simultaneous mechanical and electrical connection in one plug-in action. Control solutions are provided utilising Hager wall switching, occupancy sensing, the Klik Lighting Control Module and integrating our KNX control products.

test



Discover
Similar case studies

Enjoyed what you read? Below are similar case studies where we provided an ideal solution for a variety of projects!

test

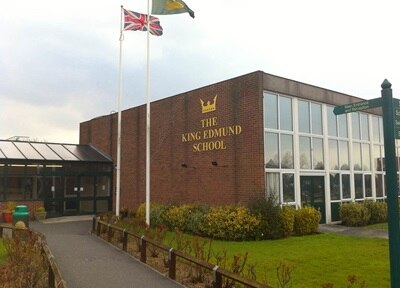

The King Edmund School | Hager Energy Monitoring

Leading electrical solutions and services provider, Hager, has worked with Gainsborough Electrical contractors to install an energy monitoring solution at King Edmund School in Essex that will enable detailed reporting and manage energy consumption.

test

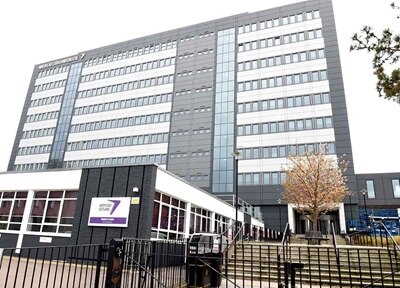

Aberdeen City Campus | Hager Lighting Connection Module

Hager’s Klik lighting control module (LCM) solution has been specified at a busy theatre at the Aberdeen City Campus, part of the North East Scotland College.

test

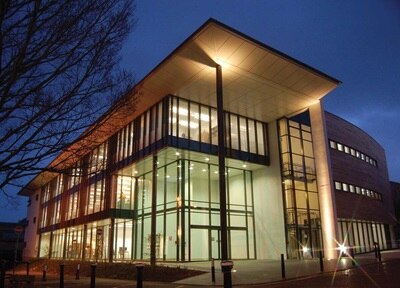

Dundee University | Hager Lighting Connection System
