Moulded Case Circuit Breaker h3+ P630 LSI 4P4D N0-50-100% 630A 50kA FTC HMW631JR
EAN-Nr.
3250613198251
Packaging
1 piece
Price
£2,535.41
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
AOB MCCB type A 2 products available -
Shunt release 5 products available -
Under voltage coil 8 products available -
Auxiliaries contact block 4 products available -
Locking interlocking functions 6 products available -
See more 37 other products available
Complete your system
-
HBW630H
RCD add on P630 4P 630A Idn adj
£2,573.22 / piece* -
HBW630LAlarm add on P630 4P 630A Idn adj
£2,367.36 / piece*
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA021H
Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece* -
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£96.56 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£101.51 / piece* -
HXW066HMechanical interlock front cover x630/P630
£106.37 / piece* -
HXW166HLink interlock kit x630/P630 - 4P
£137.24 / piece* -
HXW890HKey lock kit for Draw-out kit for x630/P630
£75.48 / piece*
-
HXS920HShaft guide for handle S1&S2 (P160-P250-x630-P630)
£48.04 / piece* -
HYW256HSafety trip (x630/P630)
£102.94 / piece*
-
HXW030HDirect rotary handle for x630/P630
£92.64 / piece* -
HXW031HRotary grey handle on door x/P630
£147.51 / piece*
-
HXW032HDirect rotary handle for x630/P630, with door lock
£92.64 / piece*
-
HXW040HMotor Operator x630/P630 24-48VDC with Auto-Reset
£1,338.08 / piece* -
HXW040HKMotor Operator x630/P630 24-48VDC with Auto-Reset + key
£1,482.18 / piece* -
HXW041HMotor Operator x630/P630 100-120VDC with Auto-Reset
£1,348.37 / piece* -
HXW041HKMotor Operator x630/P630 100-120VDC with Auto-Reset + key
£1,475.32 / piece* -
HXW042HMotor Operator x630/P630 100-240VAC with Auto-Reset
£1,348.37 / piece* -
HXW042HKMotor Operator x630/P630 100-240VAC with Auto-Reset + key
£1,482.18 / piece* -
HXW043HMotor Operator x630/P630 24-48VDC without Auto-Reset
£1,348.38 / piece* -
HXW043HKMotor Operator x630/P630 24-48VDC without Auto-Reset + key
£1,482.18 / piece* -
HXW044HMotor Operator x630/P630 100-240VAC without Auto-Reset
£1,338.08 / piece* -
HXW044HKMotor Operator x630/P630 100-240VAC without Auto-Reset + key
£1,475.32 / piece* -
HXW046HMotor Operator x630/P630 100-120VDC without Auto-Reset
£1,348.37 / piece* -
HXW046HKMotor Operator x630/P630 100-120VDC without Auto-Reset + key
£1,482.18 / piece*
-
HXW901HHandle size 2 IP55 (10x10mm)
£113.23 / piece*
-
HXW912HShaft 14x14mm 200mm (10x10mm)
£54.22 / piece* -
HXW913HShaft 14x14mm 320mm (10x10mm)
£75.49 / piece* -
HXW915HShaft 14x14mm 500mm (10x10mm)
£116.66 / piece*
-
HYW002HCage terminal x630/P630 Cu/Al 4P 1x 35-300mm²
£240.17 / piece* -
HYW008HCage terminal x630/P630 Cu/Al 4P 2x 35-300mm²
£387.71 / piece* -
HYW013HStraight terminal extension x630/P630 4P (up to 630A)
£140.68 / piece* -
HYW015HSpread terminal extension x630/P630 4P (up to 630A)
£147.54 / piece* -
HYW328HL connection terminal Plug-in (x630/P630) 1P
£61.77 / piece*
-
HYW019HInterphase barrier for x630/P630 3/4P
£27.45 / piece*
-
HYW201HPlug-in base for x630/P630 4P
£823.43 / piece* -
HYW331HDraw-out base 4P x630/P630
£1,320.93 / piece*
-
HYD322HPM Terminal Cover Base Plug In h630 4P
£84.67 / piece* -
HYW022HTerminal cover for Straight terminal extension x630/P630 4P
£96.07 / piece* -
HYW024HTerminal cover for Spread terminal extension x630/P630 4P
£96.07 / piece* -
HYW026HTerminal cover for Rear & Plug-in connection x630/P630 4P
£137.24 / piece* -
HYW051HEarth plate for Straight terminal extension P630 4P
£78.93 / piece* -
HYW053HEarth plate for Spread terminal extension P630 4P
£89.21 / piece*

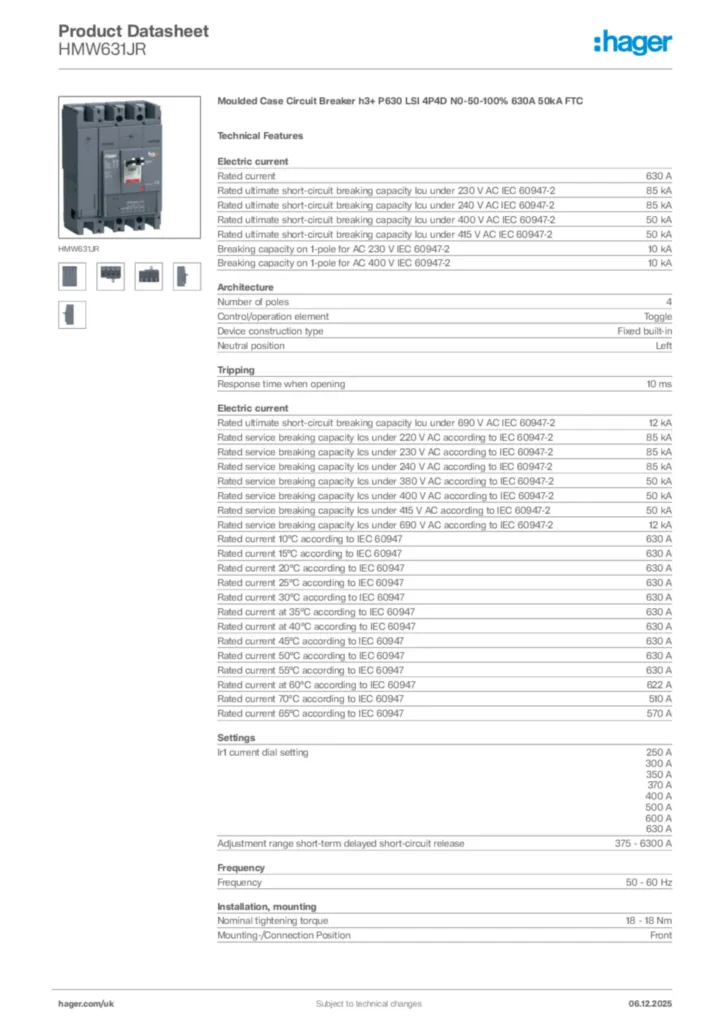

Technical characteristics
Electric current
-
Rated current630 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-210 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-210 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-212 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-212 kA
-
Rated current 10°C according to IEC 60947630 A
-
Rated current 15°C according to IEC 60947630 A
-
Rated current 20°C according to IEC 60947630 A
-
Rated current 25°C according to IEC 60947630 A
-
Rated current 30°C according to IEC 60947630 A
-
Rated current at 35°C according to IEC 60947630 A
-
Rated current at 40°C according to IEC 60947630 A
-
Rated current 45°C according to IEC 60947630 A
-
Rated current 50°C according to IEC 60947630 A
-
Rated current 55°C according to IEC 60947630 A
-
Rated current at 60°C according to IEC 60947622 A
-
Rated current 70°C according to IEC 60947510 A
-
Rated current 65°C according to IEC 60947570 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Tripping
-
Response time when opening10 ms
Settings
-
Ir1 current dial setting250 A, 300 A, 350 A, 370 A, 400 A, 500 A, 600 A, 630 A
-
Adjustment range short-term delayed short-circuit release375 - 6,300 A
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque18 - 18 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitLSI
Power
-
Total power loss under IN131.6 W
-
Power loss per pole at In46.2 W
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-23
Connection
-
Connector/plug typeTerminal
Cable
-
Cable materialCopper, Aluminium
Dimensions
-
Height260 mm
-
Width185 mm
-
Depth150 mm
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
-
Compatible with RDC AOBYes
-
Suitable for distribution boardYes
Power supply
-
Position power supplyBidirectional
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 3, 4, 5, 6, 7, 8, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 4, 5, 6, 7, 8, 9, 10, 11
