    • Moulded case circuit breakers elec­tromech­an­ical accessories
    • HXA024H
    EAN
    3250613346423
    VPE
    1 piece
    • Moulded case circuit breakers elec­tromech­an­ical accessories

    Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630) HXA024H

    Price
    £68.53
    / piece *
    £68.53
    / piece *
    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

    HXA024H

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Elec­tric current
    • Rated current IN
      3 A
    • Rated current 230 V AC15
      3 A
    Connectivity
    • Type of connec­tion
      quick­con­nect
    • Mounting type
      Click mounting
    Connec­tion
    • Type of contacts
      1NC+1NO
    • Cross-sec­tion flex­ible conductor
      0.5 - 1.25 mm²
    • Cross-sec­tion rigid conductor
      0.5 - 1.25 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      250 V
    • Rated impulse with­stand voltage Uimp
      1,500 V
    • Type voltage supply
      AC/DC
    • Rated oper­a­tional voltage Ue
      250 - 250 V
    Power
    • Power dissip­a­tion at IN
      3 W
    Equip­ment
    • Number of INV contacts
      0
    • Number of NC contacts
      1
    Safety
    • Ingress Protec­tion (IP) class
      IP4X

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration HXA024H
    PDF
    RoHS report HXA024H
    PDF

    Downloads

    • Product image

      Image HXA024H | Hager UK

      Product Image HXA024H

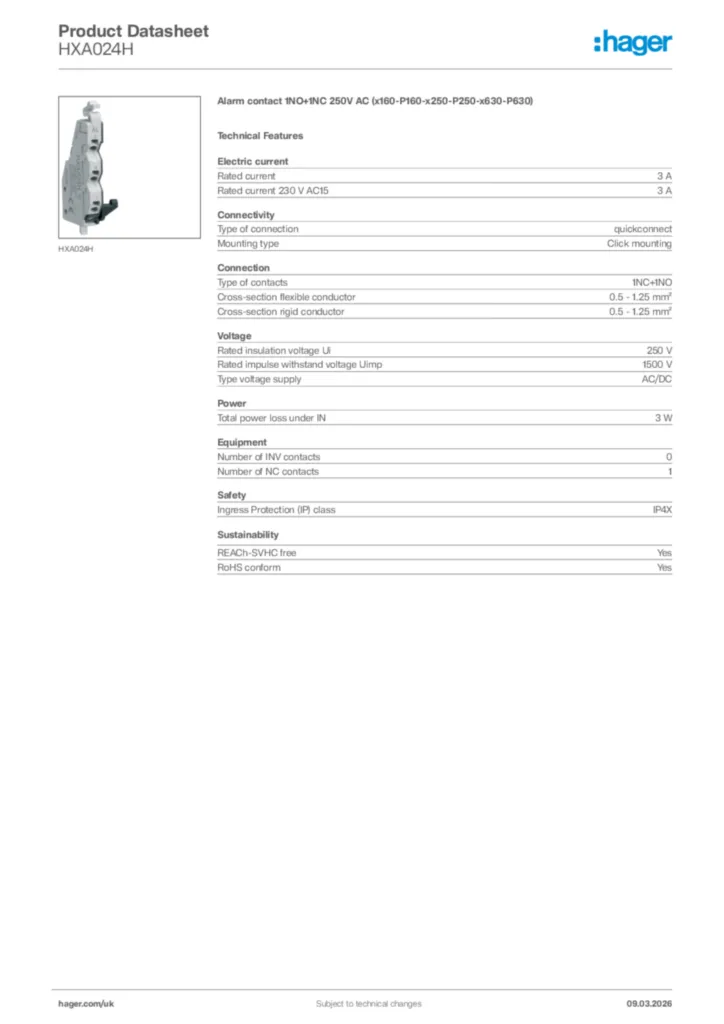

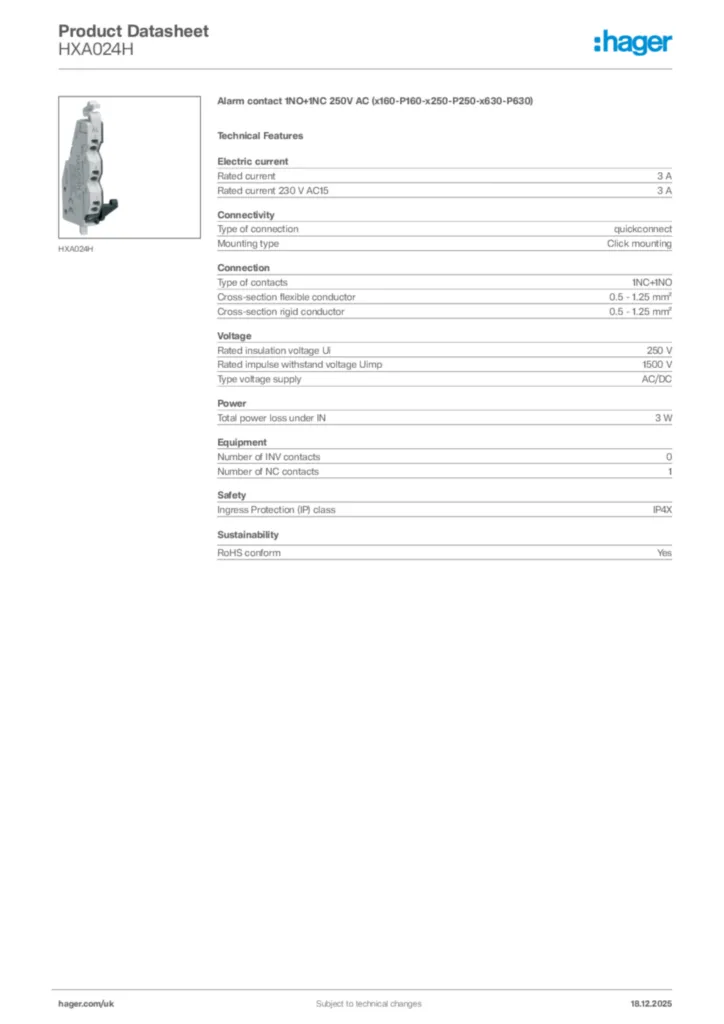

    • GeneratedProductDatasheet

      Image Hager Product data sheet HXA024H | Hager UK

      Hager Product data sheet HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

      PDF

    • ProductInstallationManual

      Image Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06) | Hager UK

      Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)

      Installation manual International 2017-06-20

      PDF
      6,65 MB

    • ProductManuals

      Image Technical catalogue | Hager UK

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,21 MB

    • ProductECDeclaration

      Image Declaration of conformity en-US 2026-07-14 | Hager UK

      Declaration of conformity en-US 2026-07-14

      PDF
      343,86 kB
      Image Declaration of conformity en-US 2026-07-14 | Hager UK

      Declaration of conformity en-US 2026-07-14

      PDF
      437,81 kB
