Moulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 50kA FTC HMW630NR
EAN-Nr.
3250613197537
Packaging
1 piece
Price
£2,815.10
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 3 products available -
Auxiliaries data cable adaptor 1 products available -
Shunt release 5 products available -
Under voltage coil 8 products available -
Auxiliaries contact block 7 products available -
See more 41 other products available
Complete your system
-
HTC100H
Side support h3+ for wire
£31.20 / piece* -
HXS920HShaft guide for handle S1&S2 (P160-P250-x630-P630)
£48.04 / piece* -
HYW256HSafety trip (x630/P630)
£102.94 / piece*
-
HTC160H
NSP cable adaptor length 1,20 m
£68.62 / piece*
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA021H
Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece* -
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece* -
HXS120HAX/AL Energy Counter
£284.78 / piece* -
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
£274.48 / piece* -
HXS122HAX/AL Energy - low level 125VAC 30VDC
£274.48 / piece*
-
HXA039HPadlock (x160-P160-x250-P250-x630)
£20.60 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£96.56 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£101.51 / piece* -
HXW066HMechanical interlock front cover x630/P630
£106.37 / piece* -
HXW165HLink interlock kit x630/P630 - 3P
£137.24 / piece* -
HXW890HKey lock kit for Draw-out kit for x630/P630
£75.48 / piece*
-
HXW030HDirect rotary handle for x630/P630
£92.64 / piece* -
HXW031HRotary grey handle on door x/P630
£147.51 / piece*
-
HXW032HDirect rotary handle for x630/P630, with door lock
£92.64 / piece*
-
HXW040HMotor Operator x630/P630 24-48VDC with Auto-Reset
£1,338.08 / piece* -
HXW040HKMotor Operator x630/P630 24-48VDC with Auto-Reset + key
£1,482.18 / piece* -
HXW041HMotor Operator x630/P630 100-120VDC with Auto-Reset
£1,348.37 / piece* -
HXW041HKMotor Operator x630/P630 100-120VDC with Auto-Reset + key
£1,475.32 / piece* -
HXW042HMotor Operator x630/P630 100-240VAC with Auto-Reset
£1,348.37 / piece* -
HXW042HKMotor Operator x630/P630 100-240VAC with Auto-Reset + key
£1,482.18 / piece* -
HXW043HMotor Operator x630/P630 24-48VDC without Auto-Reset
£1,348.38 / piece* -
HXW043HKMotor Operator x630/P630 24-48VDC without Auto-Reset + key
£1,482.18 / piece* -
HXW044HMotor Operator x630/P630 100-240VAC without Auto-Reset
£1,338.08 / piece* -
HXW044HKMotor Operator x630/P630 100-240VAC without Auto-Reset + key
£1,475.32 / piece* -
HXW046HMotor Operator x630/P630 100-120VDC without Auto-Reset
£1,348.37 / piece* -
HXW046HKMotor Operator x630/P630 100-120VDC without Auto-Reset + key
£1,482.18 / piece*
-
HXW901HHandle size 2 IP55 (10x10mm)
£113.23 / piece*
-
HXW912HShaft 14x14mm 200mm (10x10mm)
£54.22 / piece* -
HXW913HShaft 14x14mm 320mm (10x10mm)
£75.49 / piece* -
HXW915HShaft 14x14mm 500mm (10x10mm)
£116.66 / piece*
-
HYW001HCage terminal x630/P630 Cu/Al 3P 1x 35-300mm²
£188.71 / piece* -
HYW007HCage terminal x630/P630 Cu/Al 3P 2x 35-300mm²
£291.64 / piece* -
HYW013HStraight terminal extension x630/P630 4P (up to 630A)
£140.68 / piece* -
HYW014HSpread terminal extension x630/P630 3P (up to 630A)
£120.10 / piece* -
HYW328HL connection terminal Plug-in (x630/P630) 1P
£61.77 / piece*
-
HYW019HInterphase barrier for x630/P630 3/4P
£27.45 / piece*
-
HYW200HPlug-in base for x630/P630 3P
£634.74 / piece* -
HYW330HDraw-out base for x630/P630 3P
£994.98 / piece*
-
HYD321HPM Terminal Cover Base Plug In h630 3P
£63.49 / piece* -
HYW021HTerminal cover for Straight terminal extension x630/P630 3P
£89.21 / piece* -
HYW023HTerminal cover for Spread terminal extension x630/P630 3P
£89.21 / piece* -
HYW025HTerminal cover for Rear & Plug-in connection x630/P630 3P
£102.94 / piece* -
HYW050HEarth plate for Straight terminal extension P630 3P
£61.77 / piece* -
HYW052HEarth plate for Spread terminal extension P630 3P
£75.48 / piece*

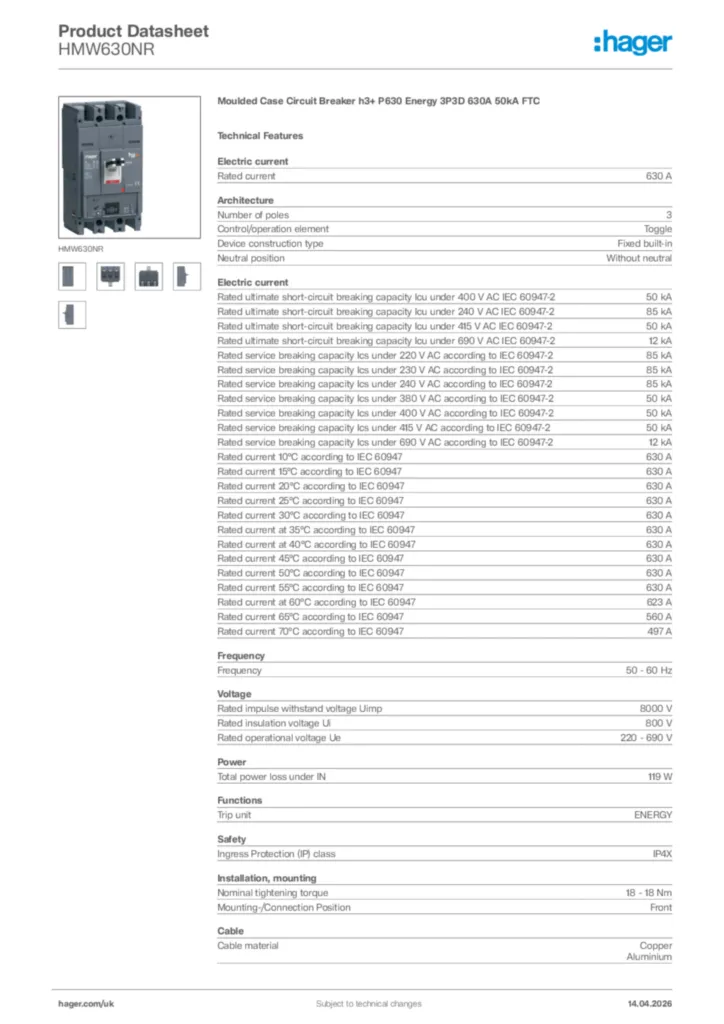

Technical characteristics
Electric current
-
Rated current630 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-212 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-212 kA
-
Rated current 10°C according to IEC 60947630 A
-
Rated current 15°C according to IEC 60947630 A
-
Rated current 20°C according to IEC 60947630 A
-
Rated current 25°C according to IEC 60947630 A
-
Rated current 30°C according to IEC 60947630 A
-
Rated current at 35°C according to IEC 60947630 A
-
Rated current at 40°C according to IEC 60947630 A
-
Rated current 45°C according to IEC 60947630 A
-
Rated current 50°C according to IEC 60947630 A
-
Rated current 55°C according to IEC 60947630 A
-
Rated current at 60°C according to IEC 60947623 A
-
Rated current 65°C according to IEC 60947560 A
-
Rated current 70°C according to IEC 60947497 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Total power loss under IN131.6 W
Installation, mounting
-
Nominal tightening torque18 - 18 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBYes
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height260 mm
-
Width140 mm
-
Depth150 mm
Settings
-
Adjustment range short-term delayed short-circuit release341.25 - 6,300.0 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Operating manual
Operating manual International 2020-09-21
PDF13,53 MB -
Instruction manual
Instruction manual International 2025-01-21
PDF10,29 MB -
Installation manual
Installation manual International 2019-10-09
PDF2,77 MB -
STEP files
CAD file for MCCB 630A 3P
STEP files International 2023-11-24
STP921,20 kB -
Handbook
Handbook International 26-08-2024
Handbook International 2019-10-09
PDF48,75 MB -
Declaration of conformity
EU Declaration of Conformity
PDF588,41 kB
EU declaration of conformity
PDF569,34 kB
More documentation
