Fl. st. encl., Quadro5, 1710x700x400 mm • FM217 | Hager
Location Hager in the world

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN
    3250612632176
    Packaging
    1 Piece

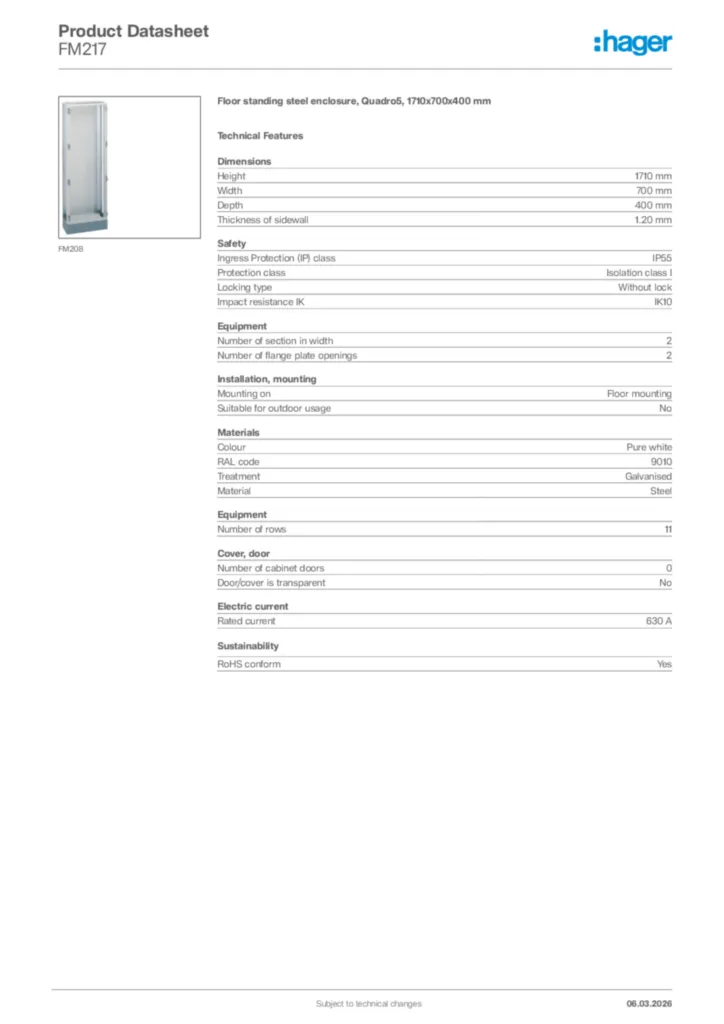

    Floor standing steel enclosure, Quadro5, 1710x700x400 mm FM217

    Complete your system

    Optional accessories

  • See more (133)
    • Door/­op­er­ating panel 2 products available
    • Screw mounting set 1 products available
    • Cover strip 2 products available
    • Compon­ents for wiring, cable entry and cable fixing 5 products available
    • Vent­il­a­tion plate 6 products available
    • Cable tree 9 products available

    Technical properties

    Dimen­sions
    • Height
      1710 mm
    • Width
      700 mm
    • Depth
      400 mm
    • Thick­ness of side­wall
      1.20 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP55
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      2
    • Number of rows
      11
    Install­a­tion, mounting
    • Mounting on
      Floor mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Galvan­ised
    • Material
      Steel
    Cover, door
    • Number of cabinet doors
      0
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration FM217
    PDF
    RoHS report FM217
    PDF

    Downloads

    More documentation
