Floor standing steel enclosure, Quadro5, 2010x700x260 mm FM209
EAN
3250612632091
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Screw mounting set 1 products available -
Cover strip 2 products available -
Components for wiring, cable entry and cable fixing 3 products available -
Ventilation plate 6 products available -
Cable tree 9 products available
Complete your system
-
KZ075
Connecting cable, 500mm, black, 10mm², with plug, for Distribution bar 250Ae
-
KZ074Connecting cable, 500mm, blue, 10mm², with plug, for Distribution bar 250Ae
-
KZ052Connecting cable, 500mm, black, 6mm², with plug, for Distribution bar 250A
-
KZ051Connecting cable, 500mm, blue, 6mm², with plug, for distribution bar 250A
-
KZ007Crimp connector 4²-10mm², for distribution bar 250A
-
KZ005Connecting cable, 120mm, black, 10mm², with plug, for distribution bar 250A
-
KZ004Connecting cable, 120mm, blue, 10mm², with plug, for distribution bar 250A
-
KZ002Connecting cable, 120mm, black, 6mm², with plug, for distribution bar 250A
-
KZ001Connecting cable, 120mm, blue, 6mm², with plug, for distribution bar 250A
-
UC001Operating switch kit, quadro.system, HA125/160 A 300x600 mm
-
UC162XDVertical 1xMCCB kit X160, quadro evo, 600x200 mm
-
UC163PDVertical kit 3x4P/3x3P MCCBH3+ P160, Quadro.system, 598x298 mm
-
UC163PIVertical kit 2xMCCB H3+ P160 with interlock, Quadro.system, 598x298 mm
-
UC262PRMCCB horizontal kit, Quadro.system, H3+ P250, 598x198 mm with RCB
-
UC263P2xMCCB vertical kit, Quadro.system, H3+ P250, 598x298 mm
-
UC263PD
Vertical kit 3x4P/3x3P MCCB, Quadro.system, H3+ P250, 598x298 mm
-
UC263PI
2xMCCB vertical kit, Quadro.system, H3+ P250, 598x298, with interlock
-
UC263PM2xMCCB vertical kit, Quadro.system, H3+ P250, 598x298 mm, motorized
-
UC264PR2xMCCB vertical kit, Quadro.system, H3+ P250, 598x398 mm, with RCB
-
UC335Operating switch kit HA250 A, quadro.system, 600x400 mm
-
UC466PR
2xMCCB vertical kit, Quadro.system, H3+ P630, 600x600 mm, with RCB
-
UC003Operating switch kit, quadro.system, HA250/400 A 600x300 mm
-
UC005Operating switch kit, quadro.system, HA400/630 A 600x600mm
-
UC201MCB kit, quadro.system, 150x600 mm 24 mod
-
UC205MCB kit, quadro.system, 200x600 mm 24 mod
-
UC209MCB kit, quadro.system, 150x600 mm 22 mod
-
UC427H
Horizontal MCCB kit, quadro.system, h250 600x200 mm
-
UC463PR
MCCB horizontal kit, Quadro.system, H3+ P630, 600x300 mm with RCB
-
UC464P
MCCB vertical kit, Quadro.system, H3+ P630, 600x400 mm
-
UC323H
Vertical MCCB kit, quadro.system, x250 600x400 mm
-
UC321HMVertical MCCB interlock kit, quadro.system, x250 300x600 mm
-
UC321H
Vertical MCCB kit, quadro.system, x250 600x300 mm
-
UC313H
Horizontal MCCB kit, quadro.system, x125/160 350x600 mm
-
UC311HVertical MCCB kit, quadro.system, x125/160 600x300 mm
-
UC239Mounting plain front plate, quadro.system, 100x600 mm
-
UC236Mounting plain front plate, quadro.system, 600x600 mm
-
UC235Mounting plain front plate, quadro.system, 400x600 mm
-
UC234Mounting plain front plate, quadro.system, 300x600 mm
-
UC233Mounting plain front plate, quadro.system, 200x600 mm
-
UC232Mounting plain front plate, quadro.system, 150x600 mm
-
UC231Mounting plain front plate, quadro.system, 50x600 mm
-
UC230Mounting plain front plate, quadro.system, 75x600 mm
-
UC237Mounting plain front plate, quadro.system, 800x600 mm
-
UC3014x 92x92 hole kit, quadro.sys. 600x200 mm
-
UC300Perforated front plate quadro.system 200x600 mm
-
UC825Busbars bearing 4P 630-1600A 1 or 2 bars
-
UC824Busbars support 4P 630-1600A 1 or 2 bars
-
UC823Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC822Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC830Lateral busbar support, quadro.system, 250 A
-
UC820Busbar flat support, quadro.system, 250-630 A 4P
-
UC817Busbar support, quadro.system, 400-1250 A 2x(3P+N)
-
UC875Cableset connecting kit, quadro.system, HA250 A
-
UT87A
Perforated copper rail, quadro.system, 25x5 L400 mm
-
UT87GPerforated copper rail, quadro.system, 50x5 L700 mm
-
UT87FPerforated copper rail, quadro.system, 50x5 L400 mm
-
UM92VCopper insulated bar, quadro.system, 40x6 L2000 mm
-
UC833Perforated copper rail, quadro.system, M6 20x5 L1750 mm
-
UM92ZE
Copper insulated bar, quadro.system, 24x5 L2000 mm
-
UM92WE
Copper insulated bar, quadro.system, 24x8 L2000 mm
-
UM92VE
Copper insulated bar, quadro.system, 40x8 L2000 mm
-
UC843Perforated copper rail, quadro.system, M6 32x5 L1750 mm
-
UC832Perforated copper rail, quadro.system, M6 20x5 L1000 mm
-
UT88BCopper corner connection, quadro.system, 50x5 mm
-
KS72CCopper rail, univers, 12x5x1000mm, with 56 connection screws 5x8mm
-
UM30A1Busbar, universN, 30x5x430mm, for UE31D1
-
UM30A2Busbar, universN, 30x5x880mm, for 2x UE31D1
-
UM30A3Busbar, universN, 30x5x280mm, for UE21D4
-
UM30A4
Busbar, universN, 30x10x430mm, for UE31D1
-
UM92X
Copper insulated bar, quadro.system, 20x2 L2000 mm
-
UM92Y
Copper insulated bar, quadro.system, 20x3 L2000 mm
-
UM92Z
Copper insulated bar, quadro.system, 32x4 L2000 mm
-
UC834Protection shield busbar system, quadro.system, W1000 mm
-
UC828Busbar protection shield, quadro.system, 160/630 A 1000x212 mm
-
UC827Busbar protection shield, quadro.system, 160/630 A 1000x294 mm
-
UC826Couple angle busbar supports 400/630A 4P
-
UC816PROTECTION SHEILD L620 mm
-
UC812Busbar support bracket, quadro.system, 160-630 A W500 mm
Technical properties
Dimensions
-
Height2010 mm
-
Width700 mm
-
Depth260 mm
-
Thickness of sidewall2 mm
Safety
-
Ingress Protection (IP) classIP55
-
Locking typeKey lock
-
Impact resistance IKIK10
Equipment
-
Number of section in width2
-
Number of flange plate openings2
-
Number of rows13
Installation, mounting
-
Mounting onPedestal
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentPowder coated
-
MaterialSteel
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Electric current
-
Rated current630 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

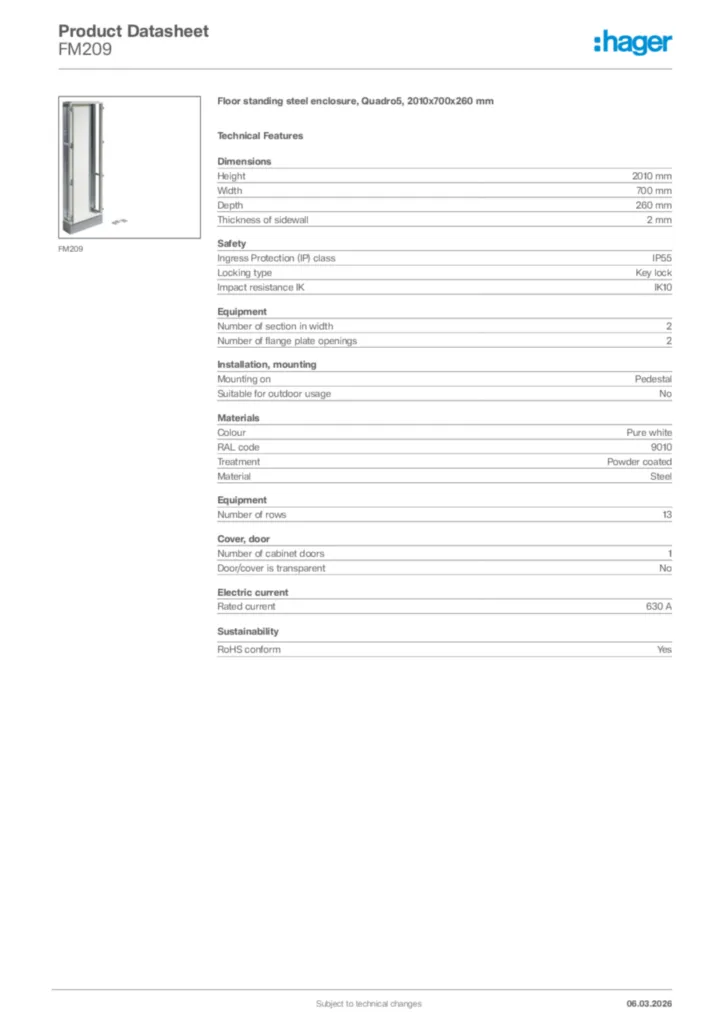

Product datasheet
