Moulded Case Circuit Breaker h3+ P250 TM ADJ 4P4D N0-100% 63A 50kA FTC HMT064DR
EAN-Nr.
3250613154738
Packaging
1 piece
Price
£427.70
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
AOB MCCB type A 8 products available -
Shunt release 5 products available -
Under voltage coil 8 products available -
Auxiliaries contact block 4 products available -
Locking interlocking functions 5 products available -
See more 45 other products available
Complete your system
-
HBT100F
RCD add on P250 4P 100A Idn fix
£1,218.00 / piece* -
HBT100HRCD add on P250 4P 100A Idn adj
£1,252.31 / piece* -
HBT100LAlarm add on P250 4P 100A Idn adj
£1,272.89 / piece* -
HBT160FRCD add on P250 4P 160A Idn fix
£1,296.91 / piece* -
HBT160HRCD add on P250 4P 160A Idn adj
£1,365.52 / piece* -
HBT160LAlarm add on P250 4P 160A Idn adj
£1,389.54 / piece* -
HBT250HRCD add on P250 4P 250A Idn adj
£1,972.81 / piece* -
HBT250LAlarm add on P250 4P 250A Idn adj
£1,938.50 / piece*
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA021H
Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece* -
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£96.56 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£101.51 / piece* -
HXT066HMechanical interlocking front cover P250
£61.77 / piece* -
HXT166HDirect interlocking kit P250 4P
£54.90 / piece*
-
HXT030HDirect rotary handle for P250
£96.07 / piece*
-
HXT031HRotary handle on door P250
£173.33 / piece*
-
HXT032HDirect rotary handle P250 with interlocking
£137.24 / piece*
-
HXT040HMotor Operator P250 24VDC with Auto-Reset
£1,166.53 / piece* -
HXT040HKMotor Operator P250 24VDC with Auto-Reset + key
£1,283.18 / piece* -
HXT041HMotor Operator P250 100-110VAC/DC with Auto-Reset
£1,142.52 / piece* -
HXT041HKMotor Operator P250 100-110VAC/DC with Auto-Reset + key
£1,245.45 / piece* -
HXT042HMotor Operator P250 230-240VAC with Auto-Reset
£1,142.52 / piece* -
HXT042HKMotor Operator P250 230-240VAC with Auto-Reset + key
£1,245.45 / piece* -
HXT043HMotor Operator P250 24VDC without Auto-Reset
£1,152.80 / piece* -
HXT043HKMotor Operator P250 24VDC without Auto-Reset + key
£1,269.46 / piece* -
HXT044HMotor Operator P250 230-240VAC without Auto-Reset
£1,142.52 / piece* -
HXT044HKMotor Operator P250 230-240VAC without Auto-Reset + key
£1,245.45 / piece* -
HXT045HMotor Operator P250 200-220VAC/DC with Auto-Reset
£1,152.80 / piece* -
HXT045HKMotor Operator P250 200-220VAC/DC with Auto-Reset +key
£1,245.45 / piece* -
HXT046HMotor Operator P250 100-110VAC/DC without Auto-Reset
£1,152.80 / piece* -
HXT046HKMotor Operator P250 100-110VAC/DC without Auto-Reset + key
£1,245.45 / piece* -
HXT047HMotor Operator P250 200-220VAC/DC without Auto-Reset
£1,152.80 / piece* -
HXT047HKMotor Operator P250 200-220VAC/DC without Auto-Reset +key
£1,245.45 / piece* -
HXT048HMotor Operator P250 48VDC with Auto-Reset
£1,152.80 / piece* -
HXT048HKMotor Operator P250 48VDC with Auto-Reset +key
£1,269.46 / piece* -
HXT049HMotor Operator P250 48VDC without Auto-Reset
£1,152.80 / piece* -
HXT049HKMotor Operator P250 48VDC without Auto-Reset +key
£1,269.46 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYB010HStraight extension (x/P250-P250) 4P
£72.06 / piece* -
HYB012HSpreader (x250-P250) 4P
£74.03 / piece* -
HYB032HRear connection (x/P250-P250) - 4P
£106.72 / piece* -
HYT002HCage terminal P250 cage version Cu/Al 4P 1x 10-150mm²
£65.20 / piece* -
HYT006HCage terminal P250 cage version Al 4P 1x 50-185mm²
£236.75 / piece* -
HYT008HCage terminal P250 cage version Cu/Al 4P 2x 35-120mm²
£247.03 / piece* -
HYT066HCage terminal P250 cage version Cu/Al 4P 6x 6-35mm²
£411.71 / piece* -
HYT328HL connection terminal Plug-in (P250-h250) 1P
£48.04 / piece*
-
HYS256HSafety trip (P160-P250)
£68.62 / piece*
-
HYT019HInterphase barrier for P250 3/4P
£13.73 / piece*
-
HYT201HPlug-in base for P250 4P
£384.27 / piece* -
HYT331HDraw-out base for P250 4P
£308.79 / piece* -
HYT333HDraw-out adaptor for MCCB P250 4P
£394.57 / piece*
-
HYC322HPM Terminal Cover Base Plug In (P250-h250) LSI 4P
£63.01 / piece* -
HYT022HTerminal cover for Straight terminal extension P250 4P
£51.47 / piece* -
HYT024HTerminal cover for Spread terminal extension P250 4P
£65.20 / piece* -
HYT026HTerminal cover for Rear & Plug-in connection P250 4P
£77.21 / piece* -
HYT051HEarth plate for Straight terminal extension P250 4P
£61.77 / piece* -
HYT053HEarth plate for Spread terminal extension P250 4P
£61.77 / piece*
Technical characteristics
Electric current
-
Rated current63 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-265 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated current 10°C according to IEC 6094783.10 A
-
Rated current 15°C according to IEC 6094780.90 A
-
Rated current 20°C according to IEC 6094778.60 A
-
Rated current 25°C according to IEC 6094776.20 A
-
Rated current 30°C according to IEC 6094773.70 A
-
Rated current at 35°C according to IEC 6094771.20 A
-
Rated current at 40°C according to IEC 6094768.60 A
-
Rated current 45°C according to IEC 6094765.90 A
-
Rated current 50°C according to IEC 6094763 A
-
Rated current 55°C according to IEC 6094760 A
-
Rated current at 60°C according to IEC 6094756.90 A
-
Rated current 65°C according to IEC 6094753.50 A
-
Rated current 70°C according to IEC 6094750 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitTM A/A
Power
-
Total power loss under IN13.95 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations40,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Cover, door
-
InterlockableYes
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBYes
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height165 mm
-
Width140 mm
-
Depth97 mm
-
Downstream busbar: width, height, diameter screw (max.)4 mm, 8.5 mm, 25 mm
-
Top stream busbar: width, height, diameter screw (max.)4 mm, 8.5 mm, 25 mm
Installation, mounting
-
Mounting-/Connection PositionFront
-
Nominal tightening torque12 - 12 Nm
-
Nominal tightening torque down terminal12 - 12 Nm
-
Nominal tightening torque top terminal12 - 12 Nm
Electrical protection
-
Instantaneous protection (li): dial setting coefficient6, 8, 10, 13
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03)
Installation manual International 2015-11-02
PDF4,67 MB -
STEP files
CAD file for MCCB 250A 4P
STEP files International 2023-11-24
STP805,89 kB -
Handbook
Handbook International 26-08-2024
Handbook International 2019-10-09
PDF48,75 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-25
PDF349,41 kB
Declaration
Declaration of conformity International 2022-04-25
PDF461,97 kB
More documentation
Discover our other products of this range
-
5
-
1

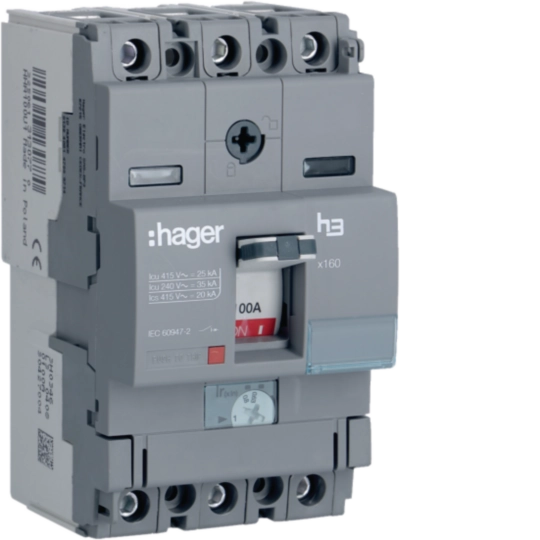

HDA014EMoulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 18kA CTCPrice£185.76/ piece * -
