Specify with confidence
Planning your next project with h3+ Panel Board?
Hager h3+ panel board. Built for evolving project demands.
Commercial projects evolve – details shift, loads change, requirements tighten. When they do, technical decisions need justification, and panel boards need to adapt to your specifications, not restrict them. The Hager h3+ panel board is a modular platform designed to adapt to evolving requirements, offering the structural flexibility needed to meet your exact specification. For M&E consultants and design engineers, that means specifying, validating, and delivering commercial power systems with more confidence.
Features and benefits
The h3+ panel board is designed for flexibility, helping you respond to real-world project demands – without compromising safety, compliance, or performance.
Compact footprint
Maximise valuable plant room space. The h3+ panel board’s optimised design allows for a 250A outgoing breaker to fit within a compact 900mm width
Greater reliability
With its electronic circuit breaker and advanced trip unit, the h3+ range offers flexible protection settings for all electrical distribution applications.
Enhanced safety
Form 4 Type 6 group mounted helps reduce exposure to live parts, supporting safer maintenance throughout the product lifecycle.
Simplified compliance
In compliance with BS EN IEC 61439-2:2021 certification and IP2X protection for greater peace of mind

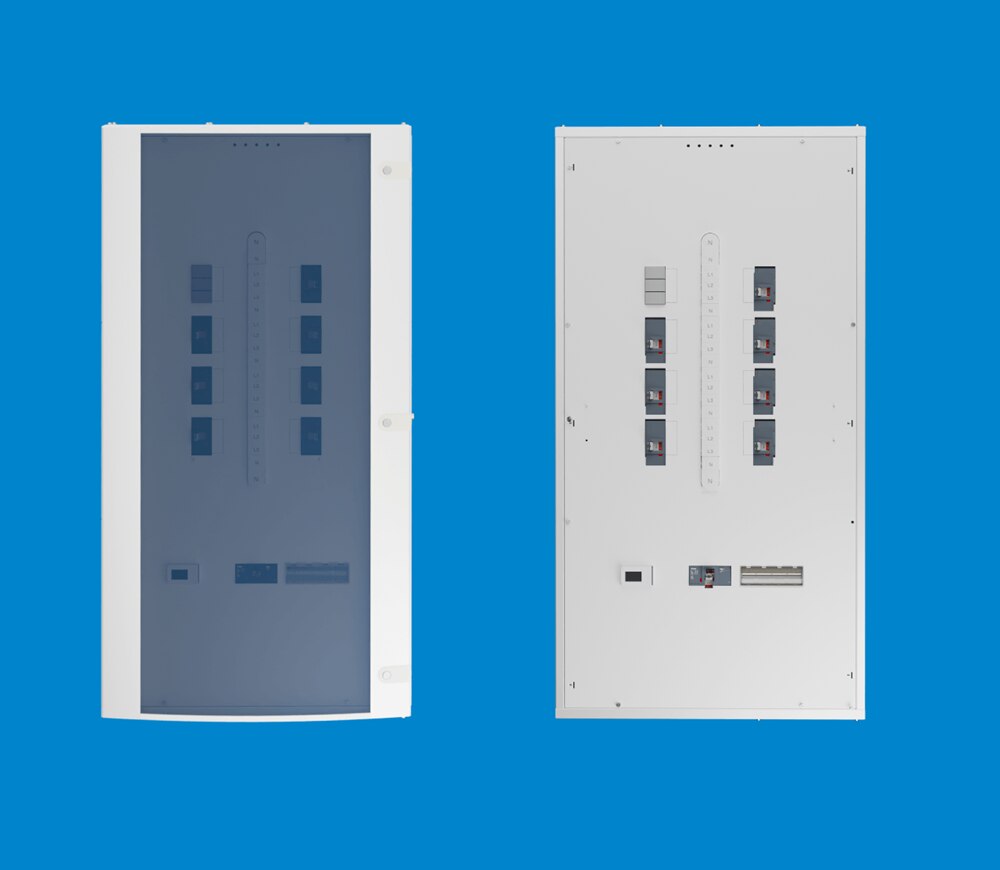

Built around your configuration
With scalable incoming capacities, flexible outgoing ways, 3-pole and 4-pole busbar options, and hybrid outgoing capability, the h3+ panel board gives you the flexibility to configure the system around the project.

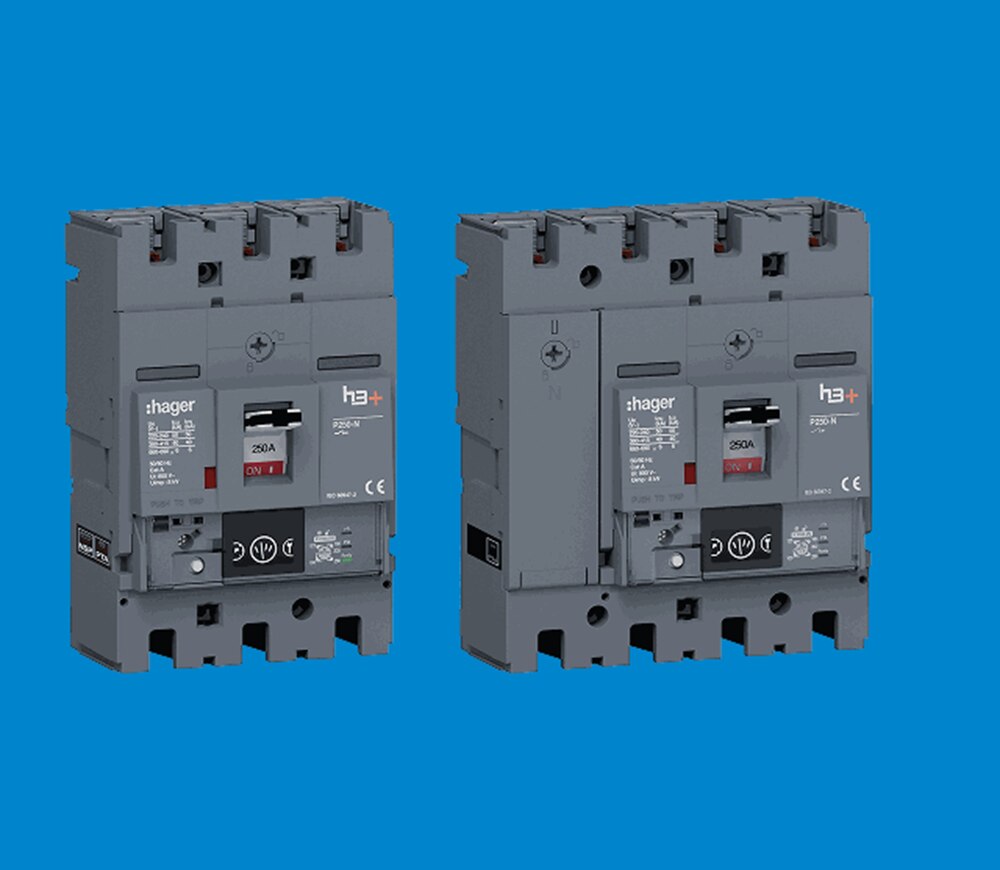

Guaranteed protection
The range is built to house our h3+ MCCBs - this includes our P160, P250, P630 & PW1600 with 6 trip unit variants to cover every installation requirement.
Explore the Range

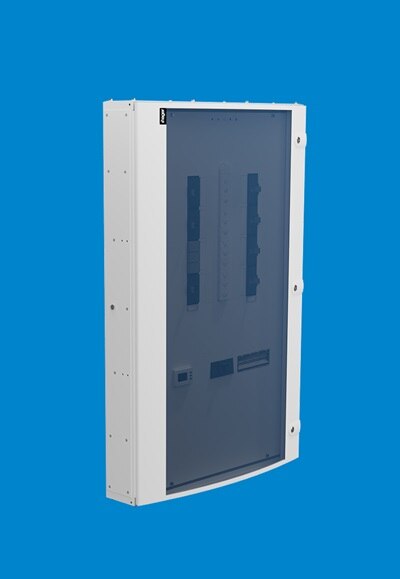

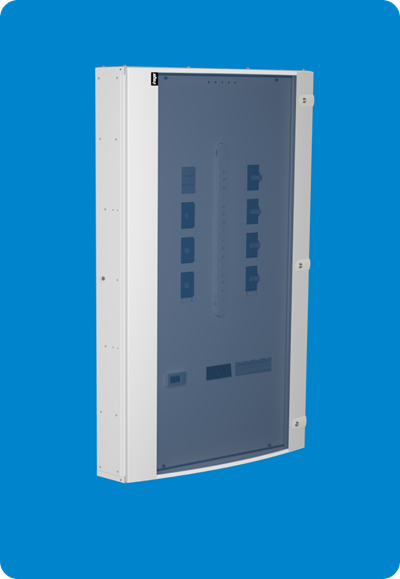

250A – 3 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
- Conforms to BS EN IEC 61439-2. InA = 250A, Inc = 125A, Icc = 25kA.
- Form 3B type 2 using outgoing terminal shield.
250A – 4 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
- Conforms to BS EN IEC 61439-2. InA = 250A, Inc = 125A, Icc = 25kA.
- Form 4 type 6 group mounted using outgoing terminal shield.

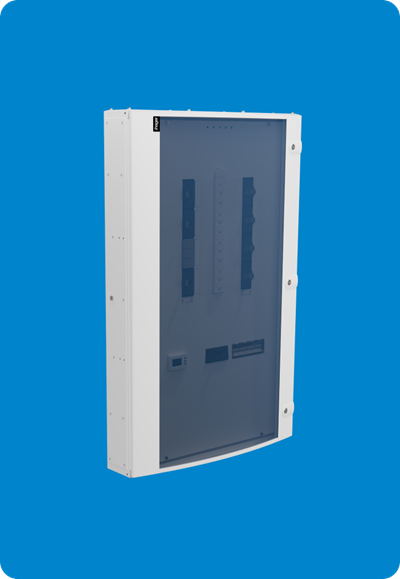

400A – 3 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
- Conforms to BS EN IEC 61439-2. InA = 400A, Inc = 125A, Icc = 25kA.
- Form 3B type 2 using outgoing terminal shield.

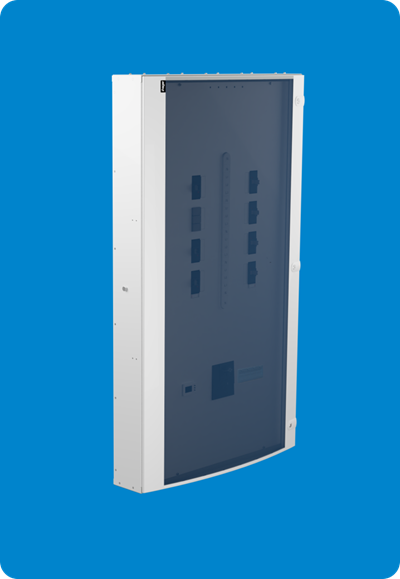

400A – 4 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
- Conforms to BS EN IEC 61439-2. InA = 400A, Inc = 125A, Icc = 25kA.
- Form 4 type 6 group mounted using outgoing terminal shield.

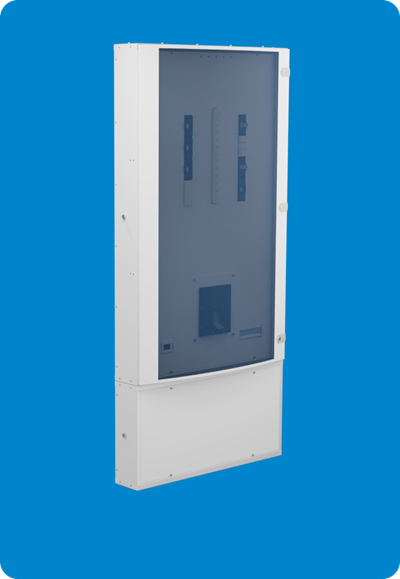

630/800A – 3 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin neutral and earth bars.
- Supplied without incoming kit, JFP 630A or 800A incomer kit must be used.
- Form 3B type 2 using outgoing terminal shield.

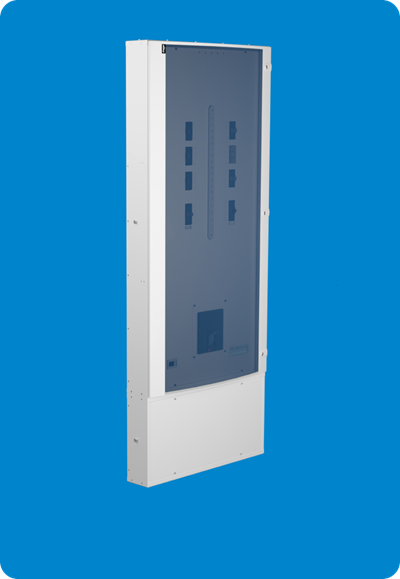

630/800A – 4 pole
- Comprises of IP3XD rated enclosure, pan assembly, twin earth bars.
- Supplied without incoming kit, JFP 630A or 800A incomer kit must be used.
- Form 4 type 6 using outgoing terminal shield.
Project flexibility in practice

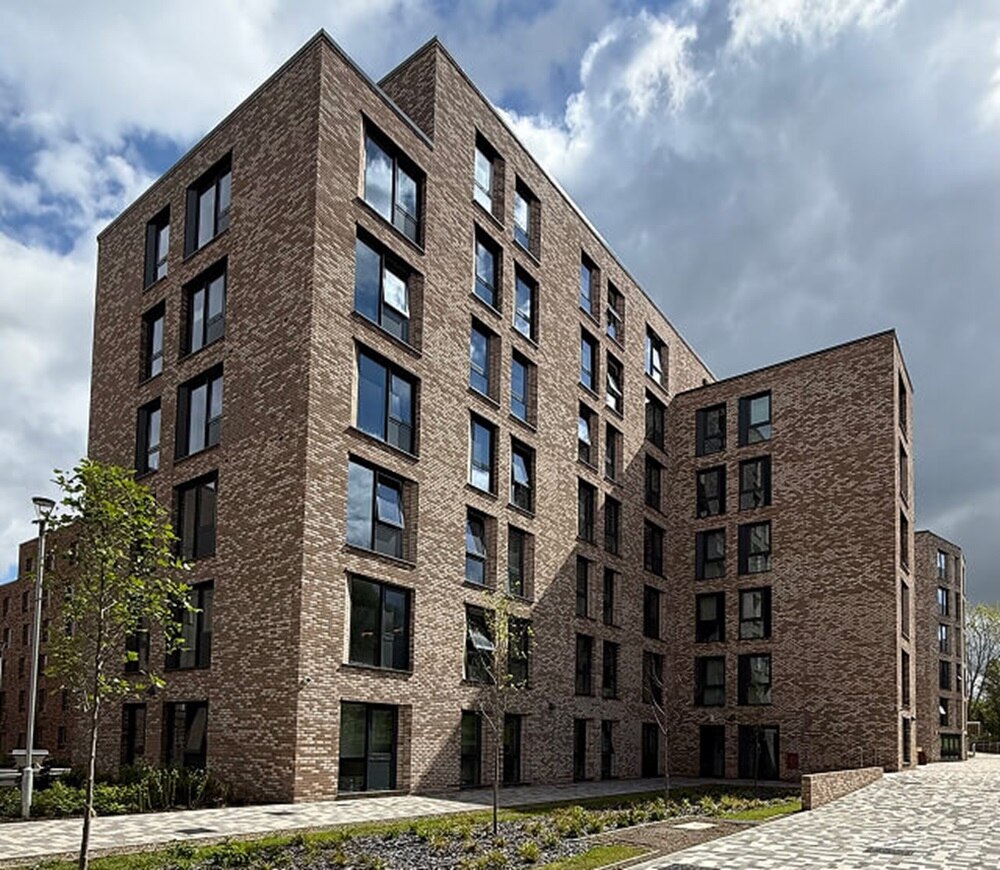

This landmark student accommodation near Coventry city centre required an electrical infrastructure solution capable of supporting a complex, high-occupancy environment. Hager delivered a tailored package including bespoke switchboards, distribution boards and consumer units, designed to accommodate installation constraints while enhancing ongoing performance and energy management.
Want to learn more about h3+ panel board?

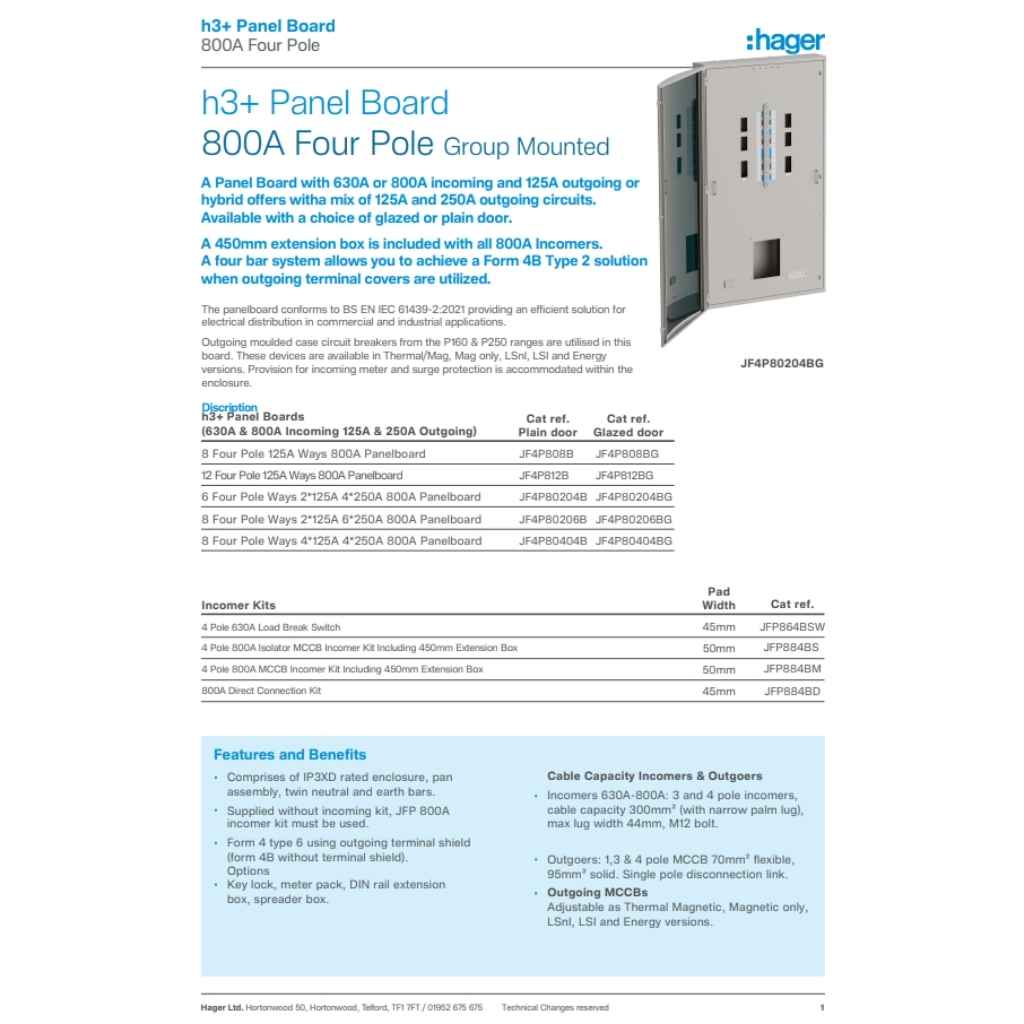

Discover our brochure and datasheets
-
pdf23.49 MB
-
pdf38.06 MB
