Hager Quadro5 floor-standing steel enclosure 2010x450x260 mm delivers robust indoor housing for distribution/control gear up to 630 A. IP55 and IK10 with 2 mm sidewalls and key-locked single door ensure protection and security. Pedestal-mounted, it offers 13 rows, 1 section width, and 2 flange plate openings. Powder-coated steel in pure white RAL9010, ideal for commercial and industrial panels.
EAN
3250612631094
Packaging
1 Piece
Wall-mount steel enclosure Quadro5 660x700x260 IP55 IK10 630A Key lock FM109
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mounting accessories 5 products available -
Distributor assembly for serial built-in device 14 products available -
Hinge for distribution systems 1 products available -
DIN rail 4 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
UC436PR
1xMCCB vertical kit, Quadro.system, H3+ P630, 350x600 mm, with RCB
-
UC434PMCCB vertical kit, Quadro.system, H3+ P630, 350x400 mm
-
UC427H
Horizontal MCCB kit, quadro.system, h250 600x200 mm
-
UC200MCB kit, quadro.system, 150x350 mm 10 mod
-
UC009Operating switch kit, quadro.system, HA250 A 300x350 mm
-
UC008Operating switch kit, quadro.system, HA125/160 A 300x350 mm
-
UC234PR
Vertical MCCB kit, Quadro.system, H3+ P250, 348x39 8mm, with RCB
-
UC233P
MCCB vertical kit H3+ P250, Quadro.system, 348x298 mm
-
UC133P
Vertical kit 1xMCCB H3+ P160, Quadro.system, 348x298 mm
-
UC233PW
Vertical kit 1xMCCB H3+ P250, Quadro.system, 348x298 mm, withdrawable
-
UC010HVertical MCCB kit, quadro.system, x160 200x600 mm
-
UC020HVertical MCCB kit, quadro.system, x250 300x350 mm
-
UC030HVertical MCCB kit, quadro.system, x250 350x800 mm
-
UCBS80BBGroup mounted busbar support, quadro, 800A
-
UT88BCopper corner connection, quadro.system, 50x5 mm
-
UT88ACopper corner connection, quadro.system, 25x5 mm
-
UM92ZCopper insulated bar, quadro.system, 32x4 L2000 mm
-
UM92Y
Copper insulated bar, quadro.system, 20x3 L2000 mm
-
UM92X
Copper insulated bar, quadro.system, 20x2 L2000 mm
-
KS72CCopper rail, univers, 12x5x1000mm, with 56 connection screws 5x8mm
-
UC875Cableset connecting kit, quadro.system, HA250 A
-
UC832Perforated copper rail, quadro.system, M6 20x5 L1000 mm
-
UC843Perforated copper rail, quadro.system, M6 32x5 L1750 mm
-
UM92VE
Copper insulated bar, quadro.system, 40x8 L2000 mm
-
UM92WE
Copper insulated bar, quadro.system, 24x8 L2000 mm
-
UT87FPerforated copper rail, quadro.system, 50x5 L400 mm
-
UT87GPerforated copper rail, quadro.system, 50x5 L700 mm
-
UT87A
Perforated copper rail, quadro.system, 25x5 L400 mm
-
UM92V
Copper insulated bar, quadro.system, 40x6 L2000 mm
-
UC239Mounting plain front plate, quadro.system, 100x600 mm
-
UC236Mounting plain front plate, quadro.system, 600x600 mm
-
UC235Mounting plain front plate, quadro.system, 400x600 mm
-
UC234Mounting plain front plate, quadro.system, 300x600 mm
-
UC233Mounting plain front plate, quadro.system, 200x600 mm
-
UC232Mounting plain front plate, quadro.system, 150x600 mm
-
UC231Mounting plain front plate, quadro.system, 50x600 mm
-
UC230Mounting plain front plate, quadro.system, 75x600 mm
-
UC226Mounting plain front plate, quadro.system, 600x350 mm
-
UC225Mounting plain front plate, quadro.system, 400x350 mm
-
UC224Mounting plain front plate, quadro.system, 300x350 mm
-
UC223Mounting plain front plate, quadro.system, 200x350 mm
-
UC222Mounting plain front plate, quadro.system, 150x350 mm
-
UC221Mounting plain front plate, quadro.system, 50x350 mm
-
UC220Mounting plain front plate, quadro.system, 75x350 mm
-
UC227Mounting plain front plate, quadro.system, 800x350 mm
Technical properties
Dimensions
-
Height2010 mm
-
Width450 mm
-
Depth260 mm
-
Thickness of sidewall2 mm
Safety
-
Ingress Protection (IP) classIP55
-
Locking typeKey lock
-
Impact resistance IKIK10
Equipment
-
Number of section in width1
-
Number of flange plate openings2
-
Number of rows13
Installation, mounting
-
Mounting onPedestal
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentPowder coated
-
MaterialSteel
Cover, door
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Electric current
-
Rated current IN630 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

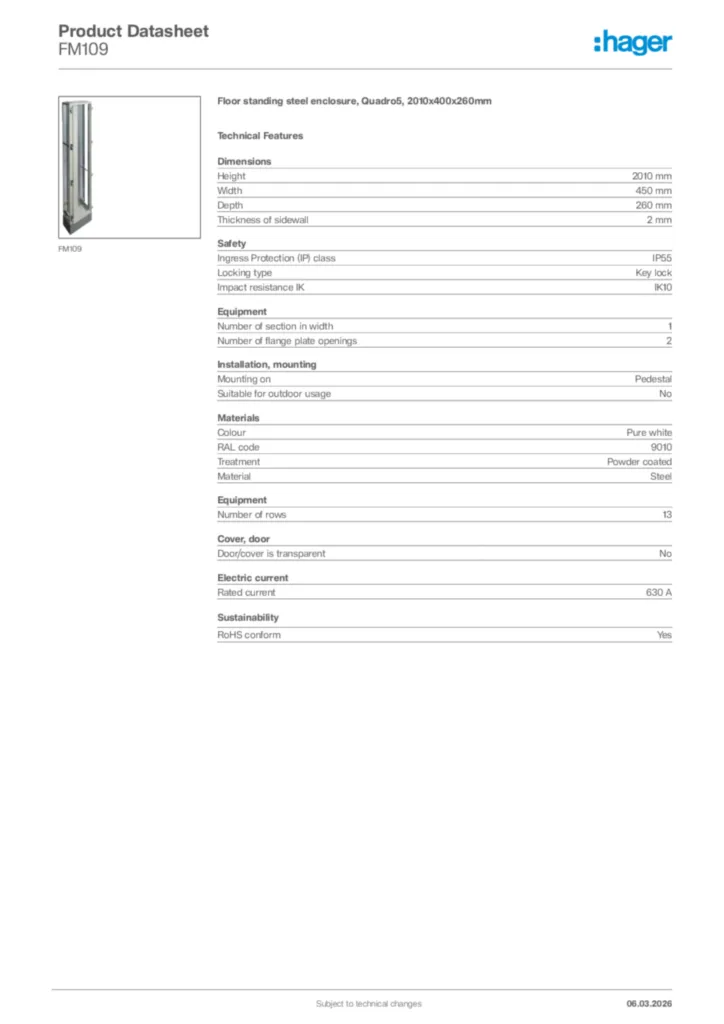

Product datasheet
Hager Product data sheet FM109
Floor standing steel enclosure, Quadro5, 2010x400x260mm
PDF -
Instruction manual
