The Hager MCCB Vertical Kit H3+ P250 for Quadro.system enables secure, tidy mounting of H3+ P250 breakers in distribution panels. Robust steel construction, RAL 9010 pure white, and Class II insulation ensure durability and safety. Compact 300x350x200 mm design with 12 x 75 mm height steps offers flexible device positioning. Ideal for reliable MCCB installations in residential and commercial boards.
EAN
3250616375109
VPE
1 piece
Vertical MCCB kit H3+ P250 with RCB, Quadro.system, RAL9010 Steel UC233P
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Hinge for distribution systems 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 12 product.page.accessories.products-available
product.page.accessories.referenced_by.title
-
FM109Floor standing steel enclosure, Quadro5, 2010x400x260mm
-
FM108Floor standing steel enclosure, Quadro5, 1860x400x260 mm
-
FM107Floor standing steel enclosure, Quadro5, 1710x400x260 mm
-
FC119Back plate, Quadro4, H1800 W370 mm
-
FC118Back plate, Quadro4, H1650 W370 mm
-
FC116
Back plate, Quadro4, H1350 W370 mm
-
FC115
Back plate, Quadro4, H1200 W370 mm
-
FC114
Back plate, Quadro4, H1050 W370 mm
-
FC113
Back plate, Quadro4, H900 W370 mm
-
FC112
Back plate, Quadro4, H750 W370 mm
-
FC111
Back plate, Quadro4, H600 W370 mm
-
FC110
Back plate, Quadro4, H450 W370 mm
Technical characteristics
Dimensions
-
Height300 mm
-
Width350 mm
-
Depth200 mm
Safety
-
Protection classIsolation class II
Materials
-
MaterialSteel
-
RAL code9010
-
Product colourPure white
Internal use only
-
Number of 75 mm steps in height per distribution panel12
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

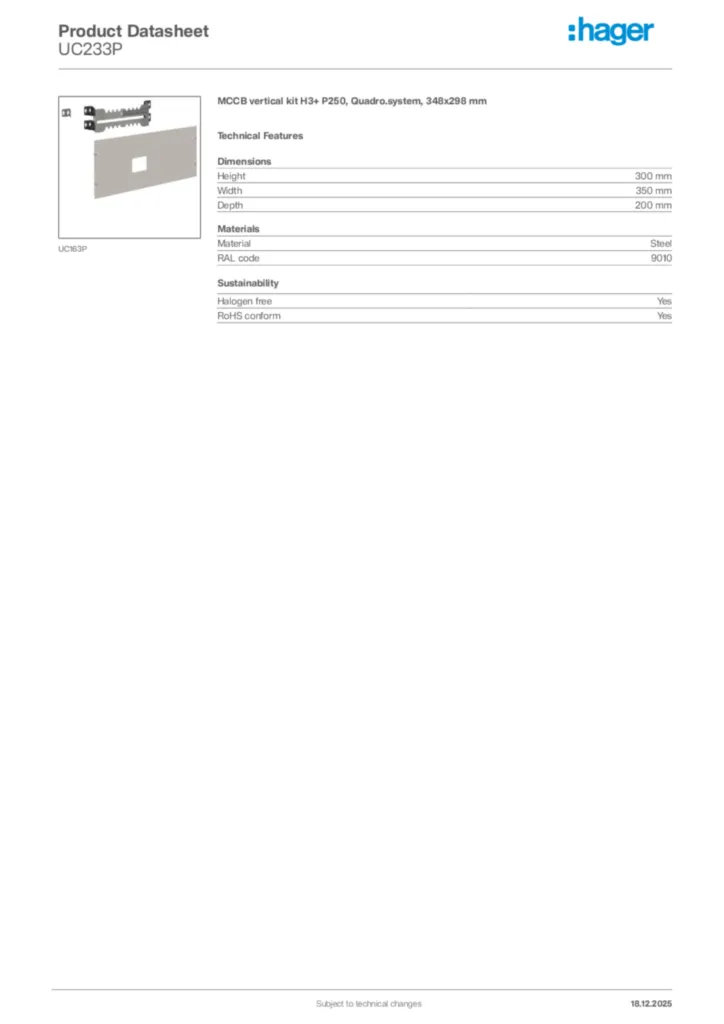

Hager Product data sheet UC233P
MCCB vertical kit H3+ P250, Quadro.system, 348x298 mm
PDF -
ProductECDeclaration
CE 24_3523_04_24
Quadro 5 CE DofC
PDF417,60 kB
UKCA 24_3522_04_24
Quadro 5 UKCA DofC
PDF405,40 kB
