Floor standing steel enclosure, Quadro5, 1860x400x260 mm FM108
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 1 products available -
Screw mounting set 1 products available -
Cover strip 2 products available -
Components for wiring, cable entry and cable fixing 2 products available -
Ventilation plate 6 products available -
Cable tree 9 products available
Complete your system
-
KZ075
Connecting cable, 500mm, black, 10mm², with plug, for Distribution bar 250Ae
-
KZ074Connecting cable, 500mm, blue, 10mm², with plug, for Distribution bar 250Ae
-
KZ052Connecting cable, 500mm, black, 6mm², with plug, for Distribution bar 250A
-
KZ051Connecting cable, 500mm, blue, 6mm², with plug, for distribution bar 250A
-
KZ007Crimp connector 4²-10mm², for distribution bar 250A
-
KZ005Connecting cable, 120mm, black, 10mm², with plug, for distribution bar 250A
-
KZ004Connecting cable, 120mm, blue, 10mm², with plug, for distribution bar 250A
-
KZ002Connecting cable, 120mm, black, 6mm², with plug, for distribution bar 250A
-
KZ001Connecting cable, 120mm, blue, 6mm², with plug, for distribution bar 250A
-
UC436PR1xMCCB vertical kit, Quadro.system, H3+ P630, 350x600 mm, with RCB
-
UC434PMCCB vertical kit, Quadro.system, H3+ P630, 350x400 mm
-
UC427H
Horizontal MCCB kit, quadro.system, h250 600x200 mm
-
UC200MCB kit, quadro.system, 150x350 mm 10 mod
-
UC009Operating switch kit, quadro.system, HA250 A 300x350 mm
-
UC008Operating switch kit, quadro.system, HA125/160 A 300x350 mm
-
UC234PR
Vertical MCCB kit, Quadro.system, H3+ P250, 348x39 8mm, with RCB
-
UC233P
MCCB vertical kit H3+ P250, Quadro.system, 348x298 mm
-
UC133P
Vertical kit 1xMCCB H3+ P160, Quadro.system, 348x298 mm
-
UC233PW
Vertical kit 1xMCCB H3+ P250, Quadro.system, 348x298 mm, withdrawable
-
UC010HVertical MCCB kit, quadro.system, x160 200x600 mm
-
UC020HVertical MCCB kit, quadro.system, x250 300x350 mm
-
UC030HVertical MCCB kit, quadro.system, x250 350x800 mm
-
UC239Mounting plain front plate, quadro.system, 100x600 mm
-
UC236Mounting plain front plate, quadro.system, 600x600 mm
-
UC235Mounting plain front plate, quadro.system, 400x600 mm
-
UC234Mounting plain front plate, quadro.system, 300x600 mm
-
UC233Mounting plain front plate, quadro.system, 200x600 mm
-
UC232Mounting plain front plate, quadro.system, 150x600 mm
-
UC231Mounting plain front plate, quadro.system, 50x600 mm
-
UC230Mounting plain front plate, quadro.system, 75x600 mm
-
UC226Mounting plain front plate, quadro.system, 600x350 mm
-
UC225Mounting plain front plate, quadro.system, 400x350 mm
-
UC224Mounting plain front plate, quadro.system, 300x350 mm
-
UC223Mounting plain front plate, quadro.system, 200x350 mm
-
UC222Mounting plain front plate, quadro.system, 150x350 mm
-
UC221Mounting plain front plate, quadro.system, 50x350 mm
-
UC220Mounting plain front plate, quadro.system, 75x350 mm
-
UC227Mounting plain front plate, quadro.system, 800x350 mm
-
UC825Busbars bearing 4P 630-1600A 1 or 2 bars
-
UC824Busbars support 4P 630-1600A 1 or 2 bars
-
UC823Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC822Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC830Lateral busbar support, quadro.system, 250 A
-
UC820Busbar flat support, quadro.system, 250-630 A 4P
-
UC811Busbar support bracket, quadro.system, 160-630 A W250 mm
-
UC817Busbar support, quadro.system, 400-1250 A 2x(3P+N)
-
UT88BCopper corner connection, quadro.system, 50x5 mm
-
UT88ACopper corner connection, quadro.system, 25x5 mm
-
UM30A4Busbar, universN, 30x10x430mm, for UE31D1
-
UM30A3Busbar, universN, 30x5x280mm, for UE21D4
-
UM30A2Busbar, universN, 30x5x880mm, for 2x UE31D1
-
UM30A1Busbar, universN, 30x5x430mm, for UE31D1
-
KS72CCopper rail, univers, 12x5x1000mm, with 56 connection screws 5x8mm
-
UC875Cableset connecting kit, quadro.system, HA250 A
-
UC832Perforated copper rail, quadro.system, M6 20x5 L1000 mm
-
UC833Perforated copper rail, quadro.system, M6 20x5 L1750 mm
-
UT87FPerforated copper rail, quadro.system, 50x5 L400 mm
-
UT87GPerforated copper rail, quadro.system, 50x5 L700 mm
-
UT87A
Perforated copper rail, quadro.system, 25x5 L400 mm
Technical properties
Dimensions
-
Height1860 mm
-
Width450 mm
-
Depth260 mm
-
Thickness of sidewall2 mm
Safety
-
Ingress Protection (IP) classIP55
-
Protection classIsolation class I
-
Locking typeWith lock
-
Impact resistance IKIK10
Equipment
-
Number of section in width1
-
Number of flange plate openings2
-
Number of rows12
Installation, mounting
-
Mounting onPedestal
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentPowder coated
-
MaterialSteel
Cover, door
-
Door/cover is transparentNo
Electric current
-
Rated current630 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

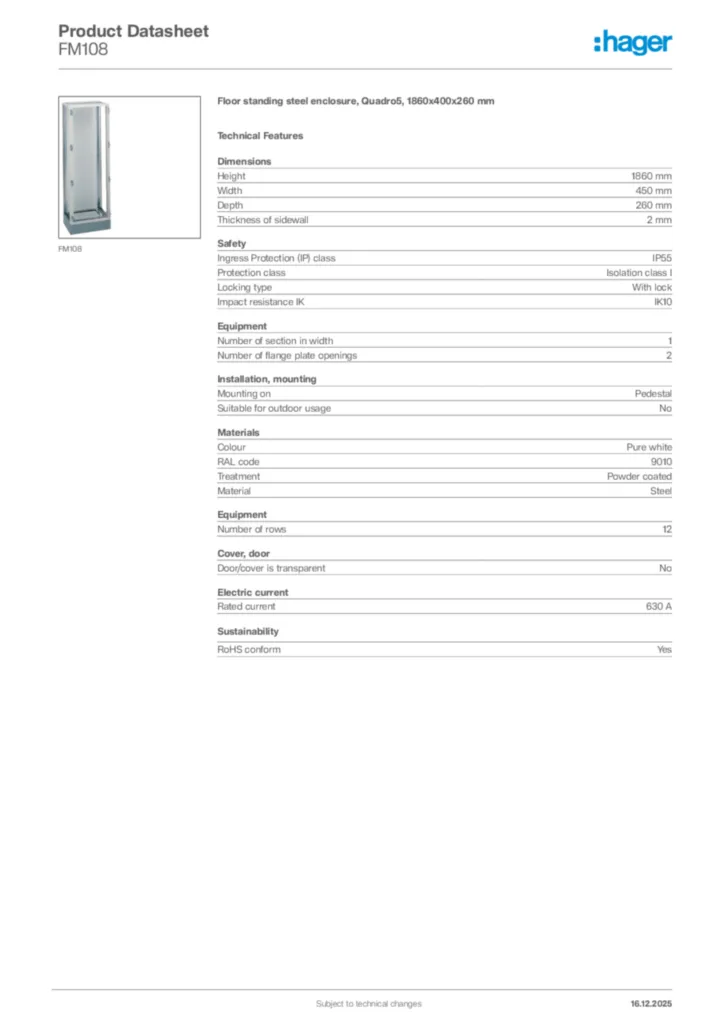

Hager Product data sheet FM108
Floor standing steel enclosure, Quadro5, 1860x400x260 mm
PDF -
Instruction manual
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF5,63 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
