Moulded Case Circuit Breaker h3+ P160 MAG 4P4D 63A 70kA CTC HES064BC

EAN-Nr.
3250613177034
Packaging
1 piece
Price
£499.23
/ piece *
£499.23
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h3+ P160 MAG 4P4D 63A 70kA CTC

HES064BC

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • See more (43)
    • Terminal cover 6 products available
    • Under voltage coil 8 products available
    • Connec­tion Func­tions 6 products available
    • Shunt release 5 products available
    • Locking inter­locking func­tions 5 products available
    • Auxil­i­aries contact block 4 products available

    Complete your system

    • Terminal cover
    • Under voltage coil
    • Connec­tion Func­tions
    • Shunt release
    • Locking inter­locking func­tions
    • Auxil­i­aries contact block
    • Auxil­i­aries cable adaptor
    • DIN rail adapter
    • Handle for power circuit breaker
    • Door coup­ling handle
    • Handle with inter­lock for power breaker
    • Phase separ­a­tion func­tions
    • Chassis power breaker
    • Mech­anic accessories for low-­voltage compon­ents
    • HYS051H

      Earth plate for Straight terminal extension P160 4P
      £41.18  / piece*
    • HYS026H

      Terminal cover for Rear & Plug-in connection P160 4P
      £41.18  / piece*
    • HYS024H

      Terminal cover for Spread terminal extension P160 4P
      £58.34  / piece*
    • HYS022H

      Terminal cover for Straight terminal extension P160 4P
      £48.04  / piece*
    • HYS053H

      Earth plate for Spread terminal extension P160 4P
      £41.18  / piece*
    • HYS322H

      Terminal cover for Plug-in base P160 4P
      £48.04  / piece*
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      £171.96  / piece*
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      £140.31  / piece*
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      £151.55  / piece*
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      £0.00  / *
    • HYS013H

      Straight terminal extension P160 4P cage version
      £68.62  / piece*
    • HYS015H

      Spread terminal extension P160 4P cage version
      £72.06  / piece*
    • HYS006H

      Cage terminal P160 cage version Al 4P 1x35-120mm²
      £72.06  / piece*
    • HYS132H

      Rear connection for P160 4P (63-160A)
      £80.64  / piece*
    • HYS002H

      Cage terminal P160 cage version Cu/Al 4P 1x 10-95mm²
      £51.47  / piece*
    • HYS328H

      L connection terminal Plug-in P160 1P
      £30.89  / piece*
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      £247.02  / piece*
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      £185.68  / piece*
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      £136.93  / piece*
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      £142.56  / piece*
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      £244.69  / piece*
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      £20.60  / piece*
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      £96.56  / piece*
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      £101.51  / piece*
    • HXS066H

      Mechanical interlocking front cover P160
      £68.62  / piece*
    • HXS166H

      Direct interlocking kit P160 4P
      £75.48  / piece*
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      £51.71  / piece*
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      £110.27  / piece*
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      £65.27  / piece*
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      £189.60  / piece*
    • HYA035H

      Connecting kit 3P/4P
      £32.36  / piece*
    • HYS033H

      DIN Rail adaptator P160 3P/4P
      £27.45  / piece*
    • HXS030H

      Direct rotary handle for P160
      £82.35  / piece*
    • HXS031H

      Rotary handle on door for P160
      £197.13  / piece*
    • HXS032H

      Direct rotary handle P160 with interlocking
      £144.11  / piece*
    • HYS019H

      Interphase barrier for P160 3/4P
      £15.45  / piece*
    • HYS201H

      Plug-in base for P160 4P
      £277.92  / piece*
    • HYS301H

      Plug-in adaptor for P160 4P (63-160A)
      £154.40  / piece*
    • HYS256H

      Safety trip (P160-P250)
      £68.62  / piece*

    Technical characteristics

    Elec­tric current
    • Rated current
      63 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      70 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      50 kA
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Left
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated insu­la­tion voltage Ui
      800 V
    Func­tions
    • Trip unit
      MAG (ICB)
    Power
    • Total power loss under IN
      10.50 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10,000
    • Number of mech­an­ical oper­a­tions
      40,000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 70 mm²
    • Cross-sec­tion rigid conductor
      6 - 95 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    Cover, door
    • Inter­lock­able
      Yes
    Cable
    • Cable material
      Copper
    Dimen­sions
    • Height
      130 mm
    • Width
      120 mm
    • Depth
      97 mm
    Compat­ib­ility
    • Compat­ible with RDC AOB
      No
    • Suit­able for DIN Rail
      No
    • Suit­able for distri­bu­tion board
      Yes
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    • Nominal tight­ening torque down terminal
      6 - 6 Nm
    • Nominal tight­ening torque top terminal
      6 - 6 Nm
    Elec­trical protec­tion
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      6, 8, 10, 12

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 18kA CTC
    PDF
    14,81 MB
    Hager REACH declaration HES064BC
    PDF
    Hager RoHS report HES064BC
    PDF

    Downloads

    • Product image

      Image HES064BC | Hager

      Product Image HES064BC

    • Product datasheet

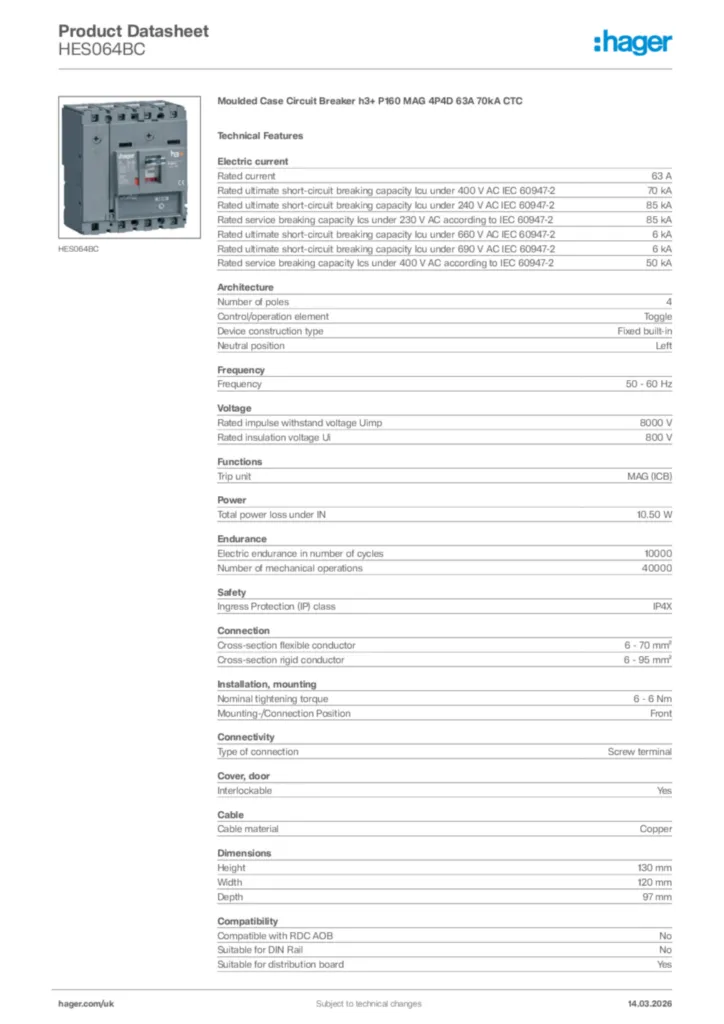

      Image Hager Product data sheet HES064BC | Hager
