HED631H

Moulded Case Circuit Breaker h630 4P 70kA 630A LSI
EAN
3250613349646
Quantity
1
Trade price*
£2,602.85 /prt.*
  • Architecture
    • Number of poles
      4 P
    • Type of pole
      4P4D N:0;50;100%
  • Main electrical features
    • Frequency
      50/60 Hz
    • Rated current
      630 A
  • Voltage
    • Rated insulation voltage
      800 V
    • Rated impulse withstand voltage
      8000 V
  • Power
    • Total power loss under IN
      120 W
  • Endurance
    • Electric endurance in number of cycles
      1000
    • Number of mechanical operations
      4000
  • Capacity
    • Number of modules
      10.5
  • Cover, door
    • Interlockable
      No
  • Installation, mounting
    • Tightening torque
      22Nm
  • Connection
    • Connection cross-sect. flexible conductor
      35 / 240mm²
    • Connection cross-sect. rigid cable
      35 / 240mm²
    • Type of connection
      Terminal
  • Equipment
    • Can be accessorized
      No
  • Standards
    • Standard text
      IEC 60947-2
    • European directive WEEE
      concerned
  • Safety
    • Protection index IP
      IP4X
  • Use conditions
    • Storage temperature
      -35/70 °C
  • Temperature
    • Operating temperature
      -25/70 °C
Documentations

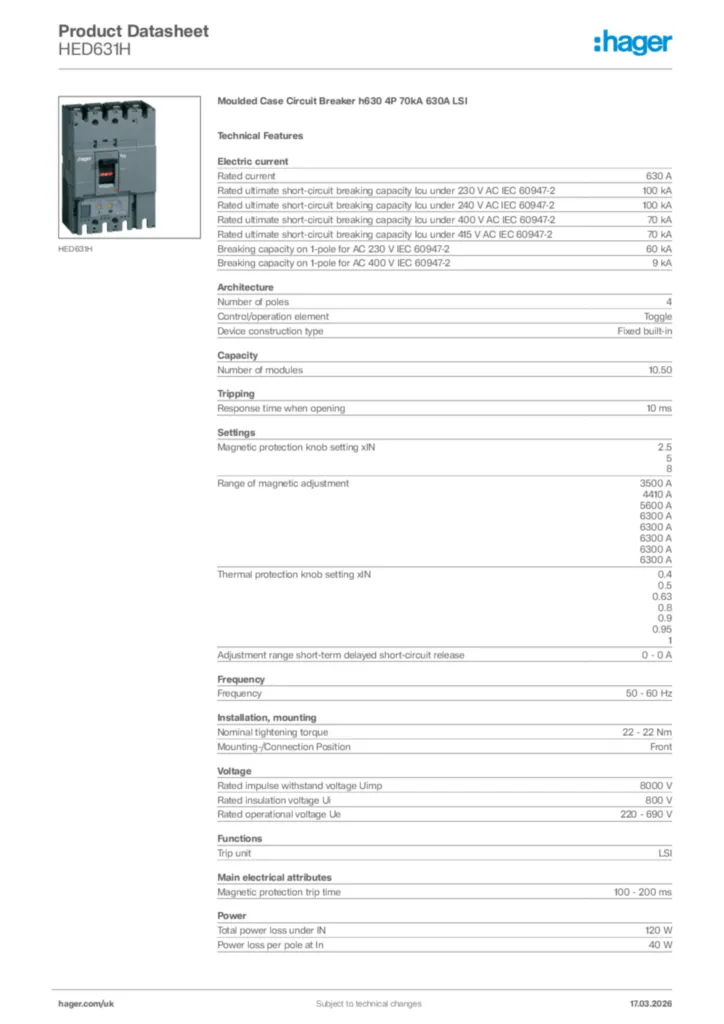

Instruction manuals for HED631H 2173 kbpdfDownload
More documentation
