250A 8 Way 125A Outgoers Glazed JN208BG
EAN-Nr.
5015652263029
Packaging
1 piece
Price
£1,698.06
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Insert for lock system 1 products available -
Distributor assembly with main switch 4 products available -
Small distribution board 3 products available -
Accessories/spare parts for low-voltage switch technology 3 products available -
Cable entry cabinet 5 products available -
Switch disconnector AC 1 products available
Complete your system
-
JK222PK
JK1/JK2 Door Lock Kit
£24.66 / piece*
-
JN224BM
250A 4 Pole MCCB Incomer Kit
£1,498.03 / piece* -
JN223BM250A 3 Pole MCCB Incomer Kit
£1,106.21 / piece* -
JN213BM125A 3 Pole MCCB Incomer Kit
£558.56 / piece* -
JN214BM125A 4 Pole MCCB Incomer Kit
£625.22 / piece*
-
JN224BS
250A 4 Pole Isolator Incomer Kit
£1,067.59 / piece* -
JN224BD250A 4 Pole Direct Connect Incomer kit
£159.39 / piece* -
JN223BS250A 3 Pole Isolator Incomer Kit
£745.03 / piece*
-
JN202SPD
250A Panelboard Surge Protection Kit Type II
£560.30 / piece* -
JN201SPD250A Panelboard Surge Protection Kit Type I
£920.49 / piece* -
JN001BPSingle Pole Blank 125A Frame
£12.83 / piece*
-
JN300CF
300mm Corner Filler Side Enclosure JN
£307.69 / piece* -
JN3003TM300mm Top Extension
£337.96 / piece* -
JN11004SM6 *8 Way Side Extension Encl 1100mm DIN 96 x 4 Meters
£726.37 / piece* -
JN4506TM450mm Top Extension Encl DIN 96 x 6 Meters
£445.24 / piece* -
JN450CF450mm Corner Filler Side Enclosure JN
£339.94 / piece*
-
JAB410B
Enclosed Switch Disconnector TPSN 100A
£666.72 / piece*
-
JK11254D125A Direct Connect Incomer Kit
£97.37 / piece*
-
JAB402B
Enclosed Switch Disconnector TPSN 20A
£233.29 / piece* -
JAB403B
Enclosed Switch Disconnector TPSN 32A
£280.80 / piece* -
JAB406B
-
JAC412B
Enclosed Switch Disconnector TPSN 125A
£766.46 / piece* -
JKD125MID125A Dual Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side.
£2,688.94 / piece* -
JKD125TMID125A Triple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side
£3,217.64 / piece*
-
JN201NSJN2 FORM 3B NEUTRAL SHROUD 4-16W
£183.84 / piece*
-
JN250SL250A JN X250 Spreader Link Kit 3 Pole
£70.60 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,100 mm
-
Width710 mm
-
Depth178.40 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035, 9001
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Quarter turn lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

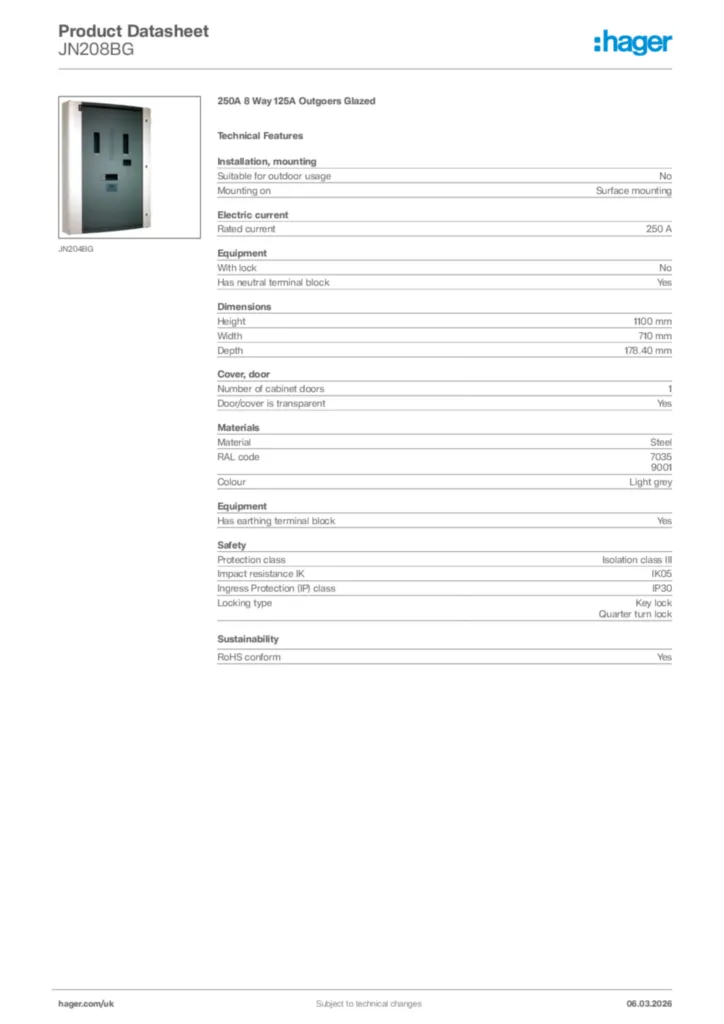

Product datasheet
Hager Product data sheet JN208BG
250A 8 Way 125A Outgoers Glazed
PDF -
Installation manual
UK_HAGER_INS_ZD0695.PDF
Installation manual en-GB 2024-03-22
PDF1,16 MB -
BIM Revit objects
Panelboard Invicta 3 (250A) -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,10 MB
Panelboard Invicta 3 (250A) -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,09 MB
Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,11 MB
Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,09 MB -
Product data sheet
UK_COMMERCIAL_TDS_250APANELBOARD.pdf
Product data sheet en-GB 2017-12-15
PDF261,25 kB -
Declaration of conformity
Declaration of conformity en-GB 2025-07-07
PDF255,65 kB
Declaration of conformity en-GB 2025-07-07
PDF257,00 kB
More documentation
