250A Panelboard Surge Protection Kit Type I JN201SPD

Name: JN201SPD
Brand: Hager
SKU: JN201SPD
Price: 1014.84 GBP

Price

£1,014.84

/ piece *

Technical characteristics
Environmental value
Documentations
More products

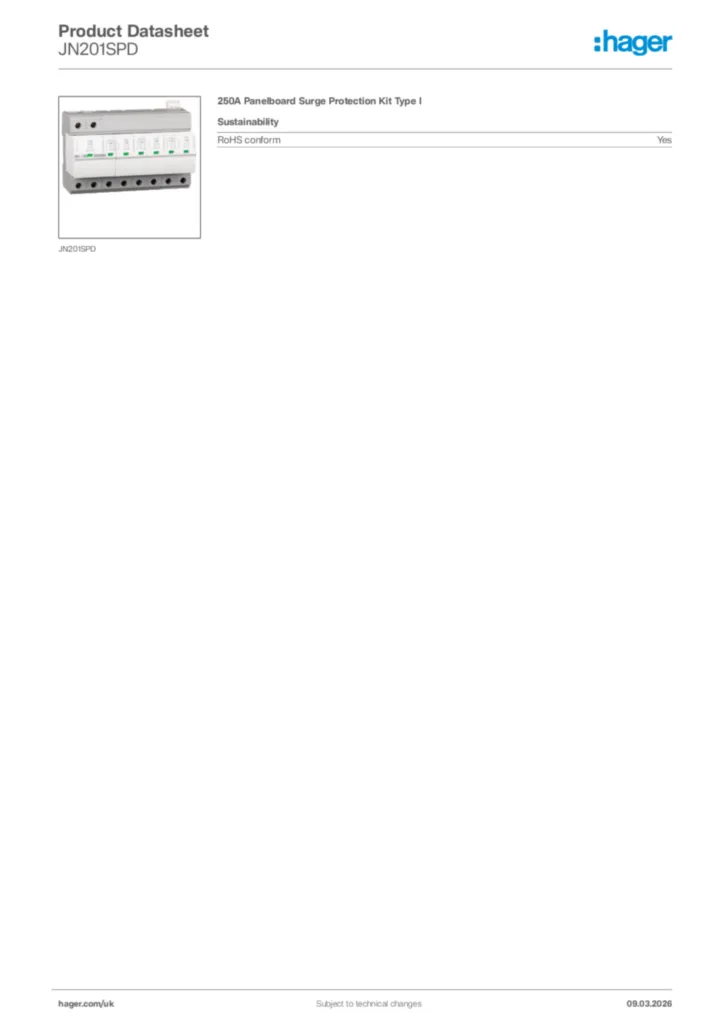

Download the sheet

Technical characteristics

Max. discharge (Imax) L-N(PEN)/ N-PE

50 kA
Leakage-current free

Yes
Max. overcurrent protection device, parallel connection (fuse)

315 A
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE

25 kA, 100 kA

Network type

TN-S, TT

Type of connection

Screw connection

With remote signalling contact

Yes

Number of modules

4

Voltage protection level Up according to IEC 61643-1

1.5 kV
Continuous operating voltage Uc according to IEC 61643-1

350 V
Rated operational voltage Ue

230 - 400 V
Voltage level Up L-N/PEN IEC 61643-11

1.5 kV

Type of pole

3P+N

Operating temperature

-40 - 80 °C

Height

90 mm
Width

205 mm
Depth

205 mm

With indicator lamp

Yes

Requirement class IEC 61643

T1, T2

Nominal tightening torque

4.5 - 4.5 Nm
Mounting on

DIN rail

Cross-section of input and output with screws, for flexible conductors

2.5 - 35 mm²
Cross-section of input and output with screws, for massive conductors

2.5 - 35 mm²
Cross-section signal contact

0.14 - 1.5 mm²

Frequency

50 - 60 Hz

Ingress Protection (IP) class

IP20

With integrated protection fuse

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
