400A 18 Way 125A Outgoers Glazed JF418BG

EAN-Nr.
5015652269786
Packaging
1 piece
Price
£2,798.30
/ piece *
£2,798.30
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

400A 18 Way 125A Outgoers Glazed

JF418BG

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • See more (26)
    • Door/­op­er­ating panel 2 products available
    • Gland plate for enclosure 1 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Small distri­bu­tion board 9 products available
    • Switch discon­nector AC 1 products available
    • Insert for lock system 1 products available

    Complete your system

    • Door/­op­er­ating panel
    • Gland plate for enclosure
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Small distri­bu­tion board
    • Switch discon­nector AC
    • Insert for lock system
    • Distrib­utor assembly for device surface mounting
    • Distrib­utor assembly with main switch
    • Small equipped distri­bu­tion board
    • Accessor­ies/s­pare parts for bus system
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • JF806DK

      Large Extension Box Door Kit
      £429.95  / piece*
    • JF805DK

      Small Spreader Box Door Kit
      £410.62  / piece*
    • JFPLATE

      Spare Endplate for JF boards
      £67.62  / piece*
    • JN001BP

      Single Pole Blank 125A Frame
      £12.83  / piece*
    • JF806E

      Large Extension Box No Door
      £451.13  / piece*
    • JF805E

      Small Extension Box No Door
      £327.18  / piece*
    • JF803EG

      Large DIN Rail Box Glazed
      £437.69  / piece*
    • JF801EG

      Small DIN Rail Box Glazed
      £352.91  / piece*
    • JF450CF

      450mm Corner Filler Side Enclosure
      £375.10  / piece*
    • JF4508TM

      450mm Top Extension Encl DIN 96 x 8
      £438.48  / piece*
    • JF300CF

      300mm Corner Filler Side Enclosure
      £359.86  / piece*
    • JF3004TM

      300mm Top Extension Encl DIN 96 x 4
      £395.29  / piece*
    • JF17009SM

      18 Way Side Extension Encl DIN 96 x 9
      £899.78  / piece*
    • JAB410B

      Enclosed Switch Disconnector TPSN 100A
      £666.72  / piece*
    • JK222PK

      JK1/JK2 Door Lock Kit
      £24.66  / piece*
    • JF444BD

      400A 4 Pole Direct Connect Incomer Kit
      £160.91  / piece*
    • JF444BS

      400A 4 Pole Isolator Incomer Kit
      £1,403.90  / piece*
    • JF444BM

      400A 4 Pole Adjustable MCCB Incomer Kit
      £1,751.63  / piece*
    • JF443BS

      400A 3 Pole Isolator Incomer Kit
      £1,072.04  / piece*
    • JF443BM

      400A 3 Pole adjustable MCCB Incomer Kit
      £1,357.76  / piece*
    • JAB402B

      Enclosed Switch Disconnector TPSN 20A
      £233.29  / piece*
    • JAB403B

      Enclosed Switch Disconnector TPSN 32A
      £280.80  / piece*
    • JAB406B

      £0.00  / *
    • JAC412B

      Enclosed Switch Disconnector TPSN 125A
      £766.46  / piece*
    • JF400NDL

      400A Neutral Disconnection Link With Shroud 45mm Pitch
      £201.92  / piece*
    • JF861SPD

      400/630/800A Panelboard SPD Kit Type I +II
      £2,039.16  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      400 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Dimen­sions
    • Height
      1,700 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class III
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Barrel lock, Key lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
    PDF
    1,80 MB
    Hager REACH declaration JF418BG
    PDF
    Hager RoHS report JF418BG
    PDF

    Downloads

    • Product image

      Image JF418BG | Hager

      Product Image JF418BG

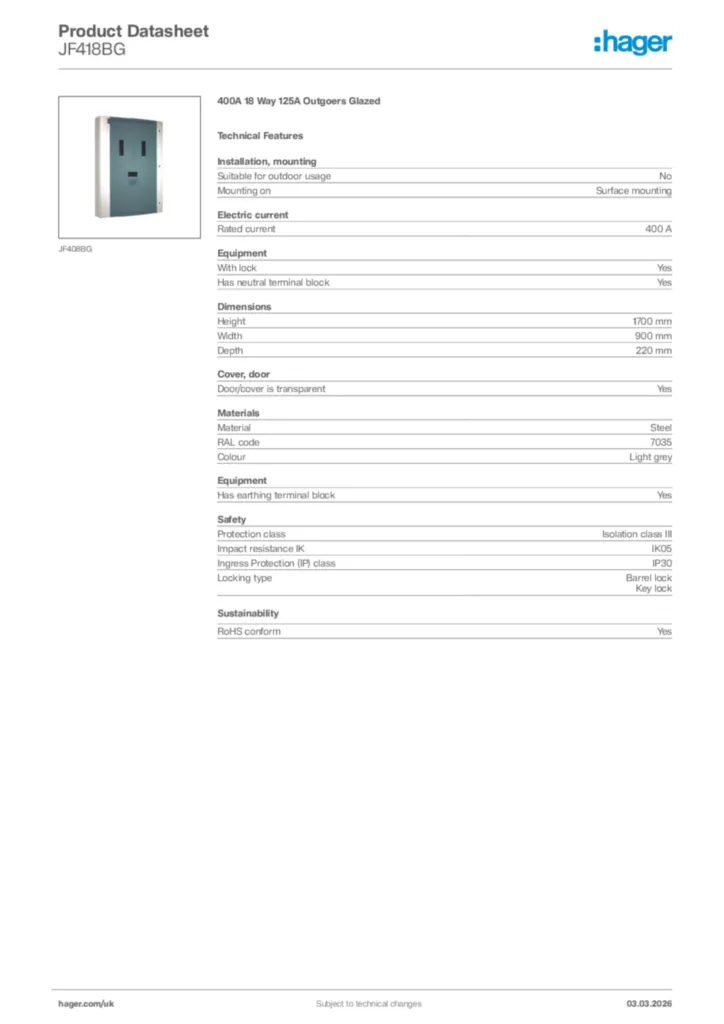

    • Product datasheet

      Image Hager Product data sheet JF418BG | Hager

      Hager Product data sheet JF418BG

      400A 18 Way 125A Outgoers Glazed

      PDF

    • BIM Revit objects

      Image Range : Panelboards. Switchboard. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,11 MB
      Image Range : Panelboards. Switchboard. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,10 MB
      Image Range Panelboard 400A Incoming -Revit Family 2020 hosted-V2021 | Hager

      Range Panelboard 400A Incoming -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,10 MB
      Image Range Panelboard 400A Incoming -Revit Family 2020 no hosted-V2021 | Hager

      Range Panelboard 400A Incoming -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,09 MB

    • Product data sheet

      Image UK_CD_TDS_Invicta3Panelboards | Hager

      UK_CD_TDS_Invicta3Panelboards

      Technical data sheet including characteristics for Invicta 3 Panelboards 250A - 800A

      PDF
      45,13 kB
      Image UK_CD_TDS_Invicta3400-800Adimensions | Hager

      UK_CD_TDS_Invicta3400-800Adimensions

      Technical data sheet including dimension for 400A-800A rated Invicta 3 Panelboards.

      PDF
      90,67 kB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      255,65 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      257,00 kB
