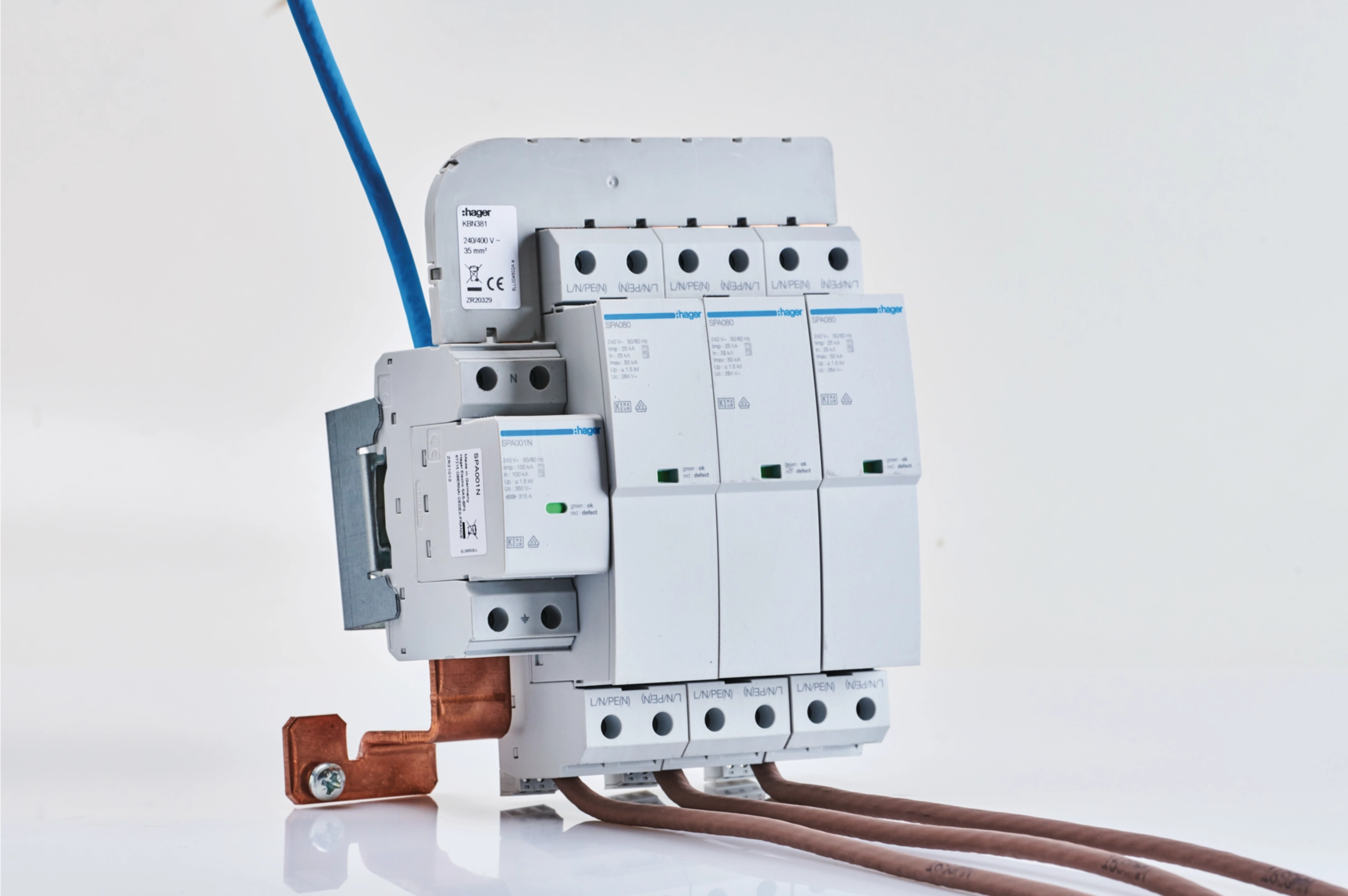

The Hager 400/630/800A Panelboard SPD Kit Type I+II safeguards main switchboards against lightning and switching surges, combining primary and secondary protection in one assembly. Rated current 250 A, it suits 400-800 A panelboards in commercial and industrial sites, enhancing uptime and equipment life. Supplied as a kit for straightforward integration into Hager boards.

EAN-Nr.

5015652608677

Packaging

1 piece

Surge Protection Device (SPD)

Panelboard SPD Kit Type I+II 400/630/800A, 250A rated JF861SPD

Name: JF861SPD
Brand: Hager
SKU: JF861SPD
Price: 2248.18 GBP

Price

£2,248.18

/ piece *

Technical characteristics
Environmental value
Documentations
More products

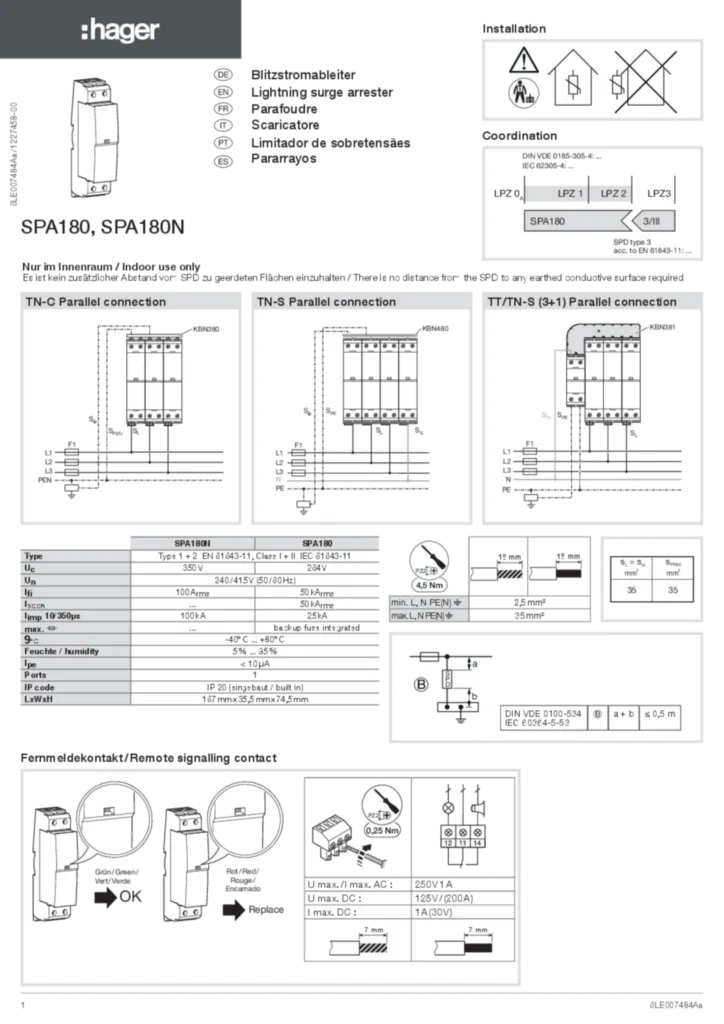

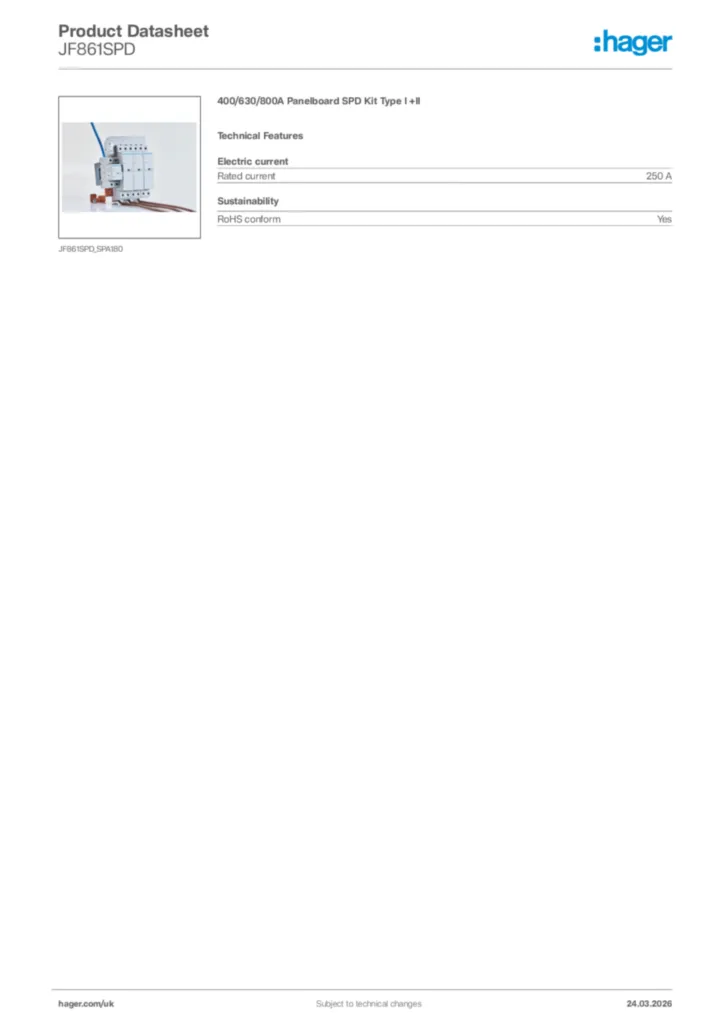

Download the sheet

Technical characteristics

Max. discharge (Imax) L-N(PEN)/ N-PE

50 kA
Leakage-current free

Yes
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE

25 kA

Network type

TN-S, TT

Type of connection

Screw connection, Plug-in connection

With remote signalling contact

Yes

Number of modules

2

Voltage protection level Up according to IEC 61643-1

1.5 kV
Continuous operating voltage Uc according to IEC 61643-1

264 V
Rated operational voltage Ue

240 - 240 V
Voltage level Up L-N/PEN IEC 61643-11

1.5 kV

Type of pole

1P

Operating temperature

-40 - 80 °C

Height

100 mm
Width

230 mm
Depth

500 mm

With indicator lamp

Yes

Requirement class IEC 61643

T1, T2

Nominal tightening torque

4.5 - 4.5 Nm

Cross-section of input and output with screws, for flexible conductors

2.5 - 35 mm²
Cross-section of input and output with screws, for massive conductors

2.5 - 35 mm²
Cross-section signal contact

0.14 - 5 mm²

Frequency

50 - 60 Hz

Ingress Protection (IP) class

IP20

With integrated protection fuse

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
