18 Way Side Extension Encl DIN 96 x 9

JF17009SM

  • Commer­cial & Resid­en­tial Distri­bu­tion Boards

18 Way Side Extension Encl DIN 96 x 9 JF17009SM

EAN-Nr.
5015654791780
Packaging
1 piece
Price
£899.78
/ piece *
£899.78
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Blanking plate for enclosure 1 products available
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available

Complete your system

  • Blanking plate for enclosure
  • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
  • JF96BP

    Blanking Plate DIN 96
    £34.74  / piece*
    Add to a list
    Add to a list
  • JF130VMF

    Voltage to Meter Fuse Pack
    £341.87  / piece*
    Add to a list
    Add to a list

Technical characteristics

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Equip­ment
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,700 mm
  • Width
    350 mm
  • Depth
    160 mm
  • Number of width units
    9
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP2XC
  • Locking type
    Without lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

PEP - 125A 6 Way TPN Board with 4 pole SD & Type II SPD Glazed (english)
PDF
1,80 MB
REACH declaration JF17009SM (english)
PDF
103,10 kB
RoHS declaration JF17009SM (english)
PDF
103,59 kB

Downloads

  • Product image

    Image JF17009SM | Hager

    Product Image JF17009SM

  • BIM Revit objects

    Image Panelboard JF Side Meter Enclosure -Revit Family 2020 hosted-V2021 | Hager

    Panelboard JF Side Meter Enclosure -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    960,00 kB
    Image Panelboard JF Side Meter Enclosure -Revit Family 2020 no hosted-V2021 | Hager

    Panelboard JF Side Meter Enclosure -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    960,00 kB
    Image Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    964,00 kB
    Image Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Panelboard Meter Enclosures. Side meter enclosure IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    980,00 kB

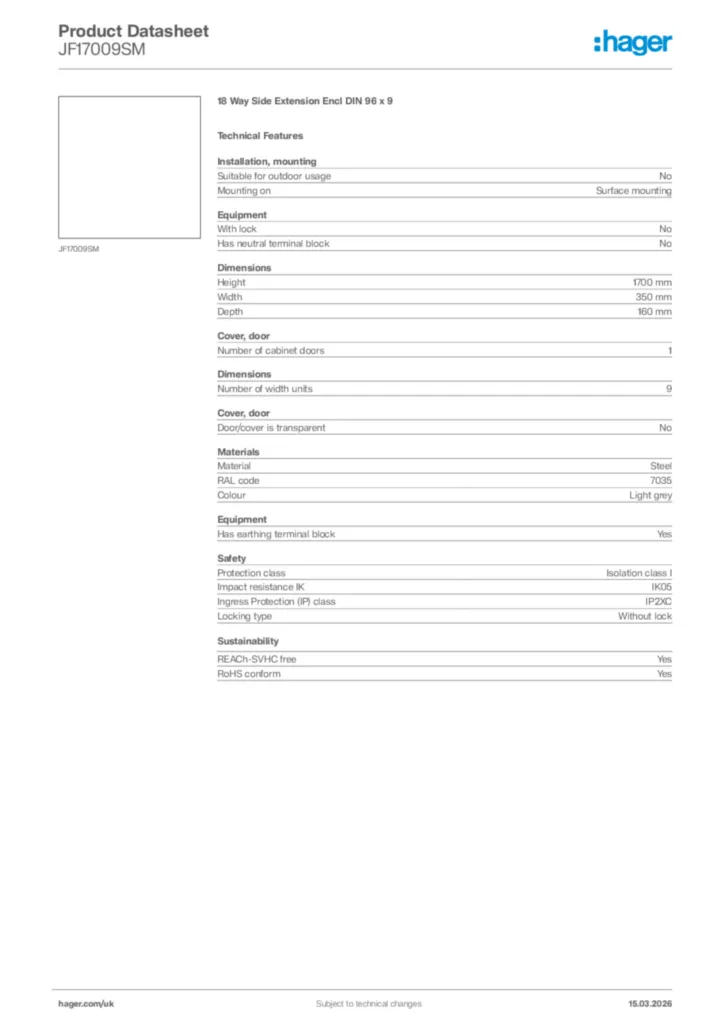

  • Product data sheet

    Image UK_CD_TDS_MeterEnclosures.pdf | Hager

    UK_CD_TDS_MeterEnclosures.pdf

    Technical data sheets including dimensions for Meter Enclosures

    PDF
    234,41 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    142,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    132,32 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-06-07

    PDF
    446,57 kB
