Moulded Case Circuit Breaker h3+ P160 MAG 3P3D 160A 40kA CTC HNS160BC

EAN-Nr.
3250613177850
Packaging
1 piece
Price
£652.24
/ piece *
£652.24
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker h3+ P160 MAG 3P3D 160A 40kA CTC

HNS160BC

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • See more (42)
    • Terminal cover 6 products available
    • Under voltage coil 8 products available
    • Connec­tion Func­tions 5 products available
    • Shunt release 5 products available
    • Locking inter­locking func­tions 5 products available
    • Auxil­i­aries contact block 4 products available

    Complete your system

    • Terminal cover
    • Under voltage coil
    • Connec­tion Func­tions
    • Shunt release
    • Locking inter­locking func­tions
    • Auxil­i­aries contact block
    • Auxil­i­aries cable adaptor
    • DIN rail adapter
    • Handle for power circuit breaker
    • Door coup­ling handle
    • Handle with inter­lock for power breaker
    • Phase separ­a­tion func­tions
    • Chassis power breaker
    • Mech­anic accessories for low-­voltage compon­ents
    • HYS321H

      Terminal cover for Plug-in base P160 3P
      £41.18  / piece*
    • HYS021H

      Terminal cover for Straight terminal extension P160 3P
      £40.79  / piece*
    • HYS023H

      Terminal cover for Spread terminal extension P160 3P
      £51.47  / piece*
    • HYS025H

      Terminal cover for Rear & Plug-in connection P160 3P
      £34.31  / piece*
    • HYS050H

      Earth plate for Straight terminal extension P160 3P
      £34.31  / piece*
    • HYS052H

      Earth plate for Spread terminal extension P160 3P
      £34.31  / piece*
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      £171.96  / piece*
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      £140.31  / piece*
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      £643.52  / piece*
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      £151.55  / piece*
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      £0.00  / *
    • HYS014H

      Spread terminal extension P160 3P cage version
      £61.77  / piece*
    • HYS131H

      Rear connection for P160 3P (63-160A)
      £65.20  / piece*
    • HYS001H

      Cage terminal P160 cage version Cu/Al 3P 1x 10-95mm²
      £51.47  / piece*
    • HYS005H

      Cage terminal P160 cage version Al 3P 1x35-120mm²
      £58.34  / piece*
    • HYS328H

      L connection terminal Plug-in P160 1P
      £30.89  / piece*
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      £247.02  / piece*
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      £185.68  / piece*
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      £136.93  / piece*
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      £142.56  / piece*
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      £244.69  / piece*
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      £20.60  / piece*
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      £96.56  / piece*
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      £101.51  / piece*
    • HXS066H

      Mechanical interlocking front cover P160
      £68.62  / piece*
    • HXS165H

      Direct interlocking kit P160 3P
      £54.90  / piece*
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      £51.71  / piece*
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      £110.27  / piece*
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      £65.27  / piece*
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      £189.60  / piece*
    • HYA035H

      Connecting kit 3P/4P
      £32.36  / piece*
    • HYS033H

      DIN Rail adaptator P160 3P/4P
      £27.45  / piece*
    • HXS030H

      Direct rotary handle for P160
      £82.35  / piece*
    • HXS031H

      Rotary handle on door for P160
      £197.13  / piece*
    • HXS032H

      Direct rotary handle P160 with interlocking
      £144.11  / piece*
    • HYS019H

      Interphase barrier for P160 3/4P
      £15.45  / piece*
    • HYS200H

      Plug-in base for P160 3P
      £199.00  / piece*
    • HYS300H

      Plug-in adaptor for P160 3P (63-160A)
      £120.10  / piece*
    • HYS256H

      Safety trip (P160-P250)
      £68.62  / piece*

    Technical characteristics

    Elec­tric current
    • Rated current
      160 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      40 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      40 kA
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Without neutral
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated insu­la­tion voltage Ui
      800 V
    Func­tions
    • Trip unit
      MAG (ICB)
    Power
    • Total power loss under IN
      42.30 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10,000
    • Number of mech­an­ical oper­a­tions
      40,000
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 70 mm²
    • Cross-sec­tion rigid conductor
      6 - 95 mm²
    Connectivity
    • Type of connec­tion
      Screw terminal
    Cover, door
    • Inter­lock­able
      Yes
    Cable
    • Cable material
      Copper
    Dimen­sions
    • Height
      130 mm
    • Width
      90 mm
    • Depth
      97 mm
    Compat­ib­ility
    • Compat­ible with RDC AOB
      No
    • Suit­able for DIN Rail
      No
    • Suit­able for distri­bu­tion board
      Yes
    Install­a­tion, mounting
    • Nominal tight­ening torque
      6 - 6 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Elec­trical protec­tion
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      6, 7, 8, 9, 10

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 100A 18kA CTC
    PDF
    14,81 MB
    Hager REACH declaration HNS160BC
    PDF
    Hager RoHS report HNS160BC
    PDF

    Downloads

    • Product image

      Image HNS160BC | Hager

      Product Image HNS160BC

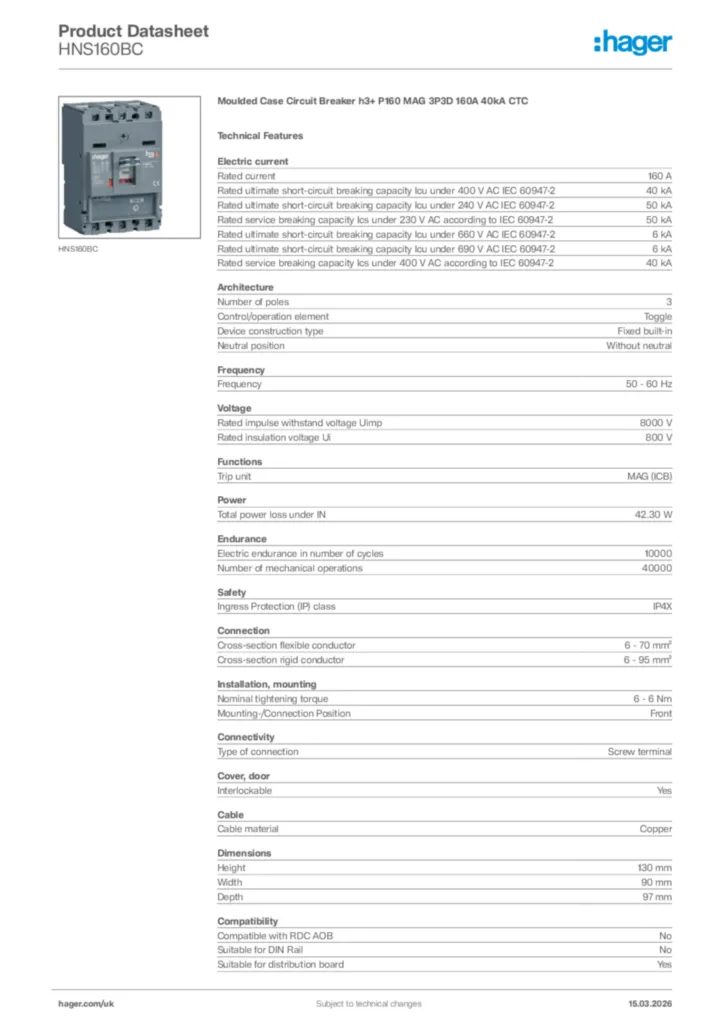

    • Product datasheet
