Moulded Case Circuit Breaker h3+ P250 Energy 4P4D N0-50-100% 100A 50kA FTC HMT101NR
Price
£1,696.78
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Locking interlocking functions 5 product.page.accessories.products-available -
Terminal cover 6 product.page.accessories.products-available -
Connection Functions 8 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Under voltage coil 8 product.page.accessories.products-available -
Chassis power breaker 3 product.page.accessories.products-available
product.page.accessories.title-modal
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£21.63 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£101.39 / piece* -
HXT066HMechanical interlocking front cover P250
£61.77 / piece* -
HXT166HDirect interlocking kit P250 4P
£54.90 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£106.59 / piece*
-
HYT026H
Terminal cover for Rear & Plug-in connection P250 4P
£77.21 / piece* -
HYT024HTerminal cover for Spread terminal extension P250 4P
£65.20 / piece* -
HYT053HEarth plate for Spread terminal extension P250 4P
£61.77 / piece* -
HYT051HEarth plate for Straight terminal extension P250 4P
£61.77 / piece* -
HYC322HPM Terminal Cover Base Plug In (P250-h250) LSI 4P
£66.16 / piece* -
HYT022HTerminal cover for Straight terminal extension P250 4P
£51.47 / piece*
-
HYT328H
L connection terminal Plug-in (P250-h250) 1P
£48.04 / piece* -
HYB010HStraight extension (x/P250-P250) 4P
£75.66 / piece* -
HYB032HRear connection (x/P250-P250) - 4P
£112.06 / piece* -
HYB012HSpreader (x250-P250) 4P
£77.73 / piece* -
HYT002HCage terminal P250 cage version Cu/Al 4P 1x 10-150mm²
£65.20 / piece* -
HYT006HCage terminal P250 cage version Al 4P 1x 50-185mm²
£236.75 / piece* -
HYT008HCage terminal P250 cage version Cu/Al 4P 2x 35-120mm²
£247.03 / piece* -
HYT066HCage terminal P250 cage version Cu/Al 4P 6x 6-35mm²
£411.71 / piece*
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£259.37 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£194.96 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£143.78 / piece* -
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£149.69 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£256.92 / piece*
-
HXA051H
UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£180.56 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£147.33 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£159.13 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HYT333H
Draw-out adaptor for MCCB P250 4P
£394.58 / piece* -
HYT331HDraw-out base for P250 4P
£308.79 / piece* -
HYT201HPlug-in base for P250 4P
£384.27 / piece*
-
HBT250HRCD add on P250 4P 250A Idn adj
£1,972.81 / piece* -
HBT100FRCD add on P250 4P 100A Idn fix
£1,218.00 / piece* -
HBT100HRCD add on P250 4P 100A Idn adj
£1,252.31 / piece* -
HBT100LAlarm add on P250 4P 100A Idn adj
£1,272.89 / piece* -
HBT160FRCD add on P250 4P 160A Idn fix
£1,296.91 / piece* -
HBT160HRCD add on P250 4P 160A Idn adj
£1,365.52 / piece* -
HBT160LAlarm add on P250 4P 160A Idn adj
£1,389.54 / piece* -
HBT250LAlarm add on P250 4P 250A Idn adj
£1,938.50 / piece*
-
HXT047HKMotor Operator P250 200-220VAC/DC without Auto-Reset +key
£1,245.45 / piece* -
HXT047HMotor Operator P250 200-220VAC/DC without Auto-Reset
£1,152.81 / piece* -
HXT046HKMotor Operator P250 100-110VAC/DC without Auto-Reset + key
£1,245.45 / piece* -
HXT046HMotor Operator P250 100-110VAC/DC without Auto-Reset
£1,152.81 / piece* -
HXT045HKMotor Operator P250 200-220VAC/DC with Auto-Reset +key
£1,245.45 / piece* -
HXT045HMotor Operator P250 200-220VAC/DC with Auto-Reset
£1,152.81 / piece* -
HXT044HKMotor Operator P250 230-240VAC without Auto-Reset + key
£1,245.45 / piece* -
HXT044HMotor Operator P250 230-240VAC without Auto-Reset
£1,142.53 / piece* -
HXT043HKMotor Operator P250 24VDC without Auto-Reset + key
£1,269.46 / piece* -
HXT043HMotor Operator P250 24VDC without Auto-Reset
£1,152.81 / piece* -
HXT042HKMotor Operator P250 230-240VAC with Auto-Reset + key
£1,245.45 / piece* -
HXT042HMotor Operator P250 230-240VAC with Auto-Reset
£1,142.53 / piece* -
HXT041HKMotor Operator P250 100-110VAC/DC with Auto-Reset + key
£1,245.45 / piece* -
HXT041HMotor Operator P250 100-110VAC/DC with Auto-Reset
£1,142.53 / piece* -
HXT040HKMotor Operator P250 24VDC with Auto-Reset + key
£1,283.19 / piece* -
HXT040HMotor Operator P250 24VDC with Auto-Reset
£1,166.53 / piece*
-
HXS120HAX/AL ON/OFF & counting ON/OFF at Energy MCCB
£284.78 / piece* -
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
£274.48 / piece* -
HXS122HAX/AL Energy - low level 125VAC 30VDC
£274.48 / piece*
-
HXT030HDirect rotary handle for P250
£96.07 / piece*
-
HXT031HRotary handle on door P250
£173.33 / piece*
-
HXT032HDirect rotary handle P250 with interlocking
£137.24 / piece*
-
HYS256HSafety trip (P160-P250)
£68.62 / piece*
-
HYT019HInterphase barrier for P250 3/4P
£13.73 / piece*
Technical characteristics
Electric current
-
Rated current IN100 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-265 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-265 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-26 kA
-
Rated current at 10°C according to IEC 60947100 A
-
Rated current at 15°C according to IEC 60947100 A
-
Rated current at 20°C according to IEC 60947100 A
-
Rated current at 25°C according to IEC 60947100 A
-
Rated current at 30°C according to IEC 60947100 A
-
Rated current at 35°C according to IEC 60947100 A
-
Rated current at 40°C according to IEC 60947100 A
-
Rated current at 45°C according to IEC 60947100 A
-
Rated current at 50°C according to IEC 60947100 A
-
Rated current at 55°C according to IEC 60947100 A
-
Rated current at 60°C according to IEC 60947100 A
-
Rated current at 65°C according to IEC 60947100 A
-
Rated current at 70°C according to IEC 60947100 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Power dissipation at IN7.20 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations40,000
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBYes
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Data act compliance
-
Is generating dataYes
-
Data typesAlarms, Basic information, Device energy management, Electrical measurement, Detailed electrical measurement, General diagnostics, Network diagnostics, Operational state, Software diagnostics
-
Data formatsMODBUS (RTU)
-
Estimated daily data volume< 1 KB
-
Real time data generationNo
-
Data stored on deviceNo
Dimensions
-
Height165 mm
-
Width140 mm
-
Depth97 mm
Settings
-
Adjustment range short-term delayed short-circuit release60 - 1,000 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

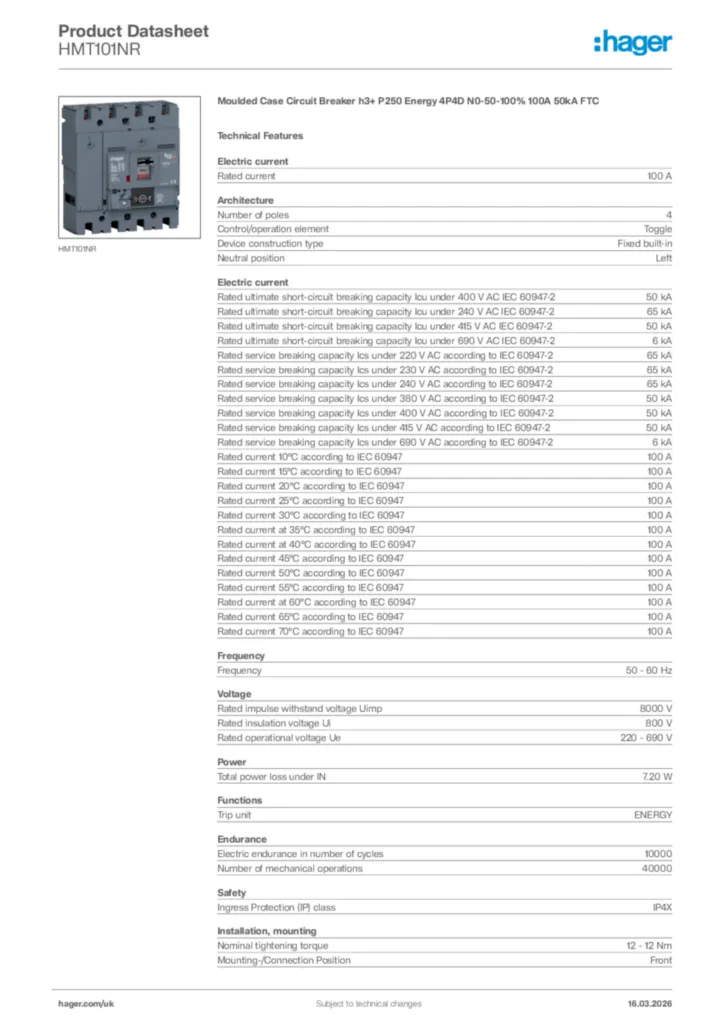

Hager Product data sheet HMT101NR
