The Hager cubyko 1-gang grey push-button is a composable momentary rocker for bells or lighting control. Rated 10 A, 250 V, 50-60 Hz, it uses secure turn-screw terminals. IP55 and IK05 provide weather and impact resistance for indoor/outdoor use. Suits flush or surface mounting. Compact (70.9×70.9×41.5 mm) matte thermoplastic design ensures durable, clean installations within the cubyko system.
EAN
3250617174206
Packaging
1 Piece
cubyko 2-way switch IP55 10A Grey IK07 Flush/Surface mounting WNA020
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 6 products available -
Cover frame for domestic switching devices 4 products available
Compatible products
-
Referenced by 23 products available
Complete your system
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
Referenced by
-
WNA681
cubyko Single box empty grey IP55
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementRocker
Materials
-
ColourGrey
-
Surface finishMatt, Satin finish
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
-
Contains recycled material (% of total plastic weight)0
-
Backside internalMatt
Dimensions
-
Height70.90 mm
-
Width70.90 mm
-
Depth41.50 mm
-
Built-in depth12 mm
-
Built-in depth flush-mounted boxes40 mm
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Indicator lampWithout
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connectivity
-
With claw mountingNo
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

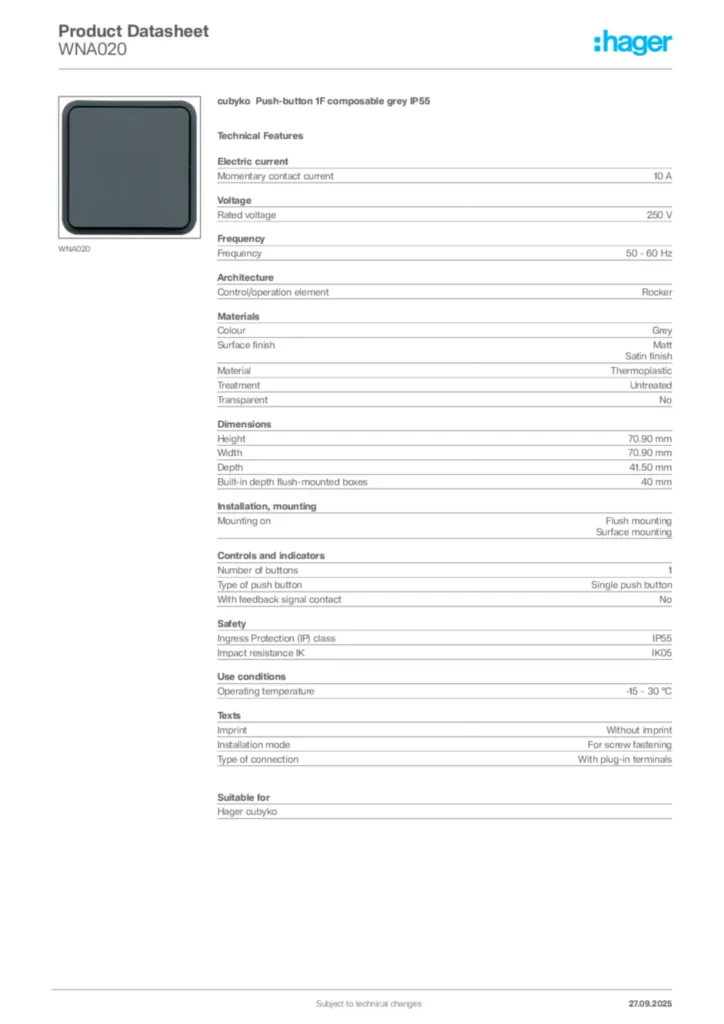

Product datasheet

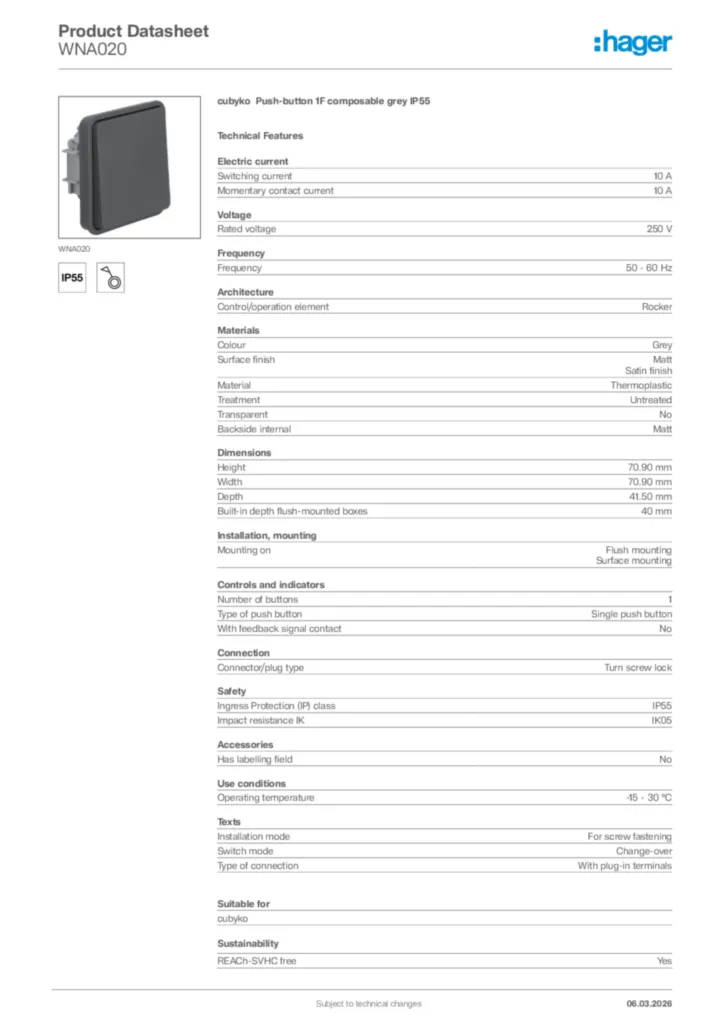

Hager Product data sheet WNA020
