SPD T1+T2 4P TN-S TT 50kA Up 1,2kV + Remote contact SPA931
EAN-Nr.
3250615515186
Packaging
1 piece
Price
£669.73
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Combined arrester for power supply systems 2 products available
Complete your system
-
SPA090
Cartridge 1P T1+T2 L-N SPA9xxx
£109.80 / piece* -
SPA090NCartridge1P T1+T2 N-PE SPA9xxx
£109.80 / piece*
Technical characteristics
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE50 kA
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE12.5 kA, 50 kA
Network configuration
-
Network typeTN-S, TT
Connectivity
-
Type of connectionScrew terminal
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules4
Voltage
-
Voltage protection level Up according to IEC 61643-11.20 kV
-
Continuous operating voltage Uc according to IEC 61643-1335 V
-
Rated operational voltage Ue240 - 415 V
-
Voltage level Up L-N/PEN IEC 61643-111.2 kV
Architecture
-
Number of poles4
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height98.7 mm
-
Width71.20 mm
-
Depth77.50 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2
Installation, mounting
-
Nominal tightening torque3 - 4.5 Nm
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 35.0 mm²
-
Cross-section signal contact0.4 - 1.5 mm²
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

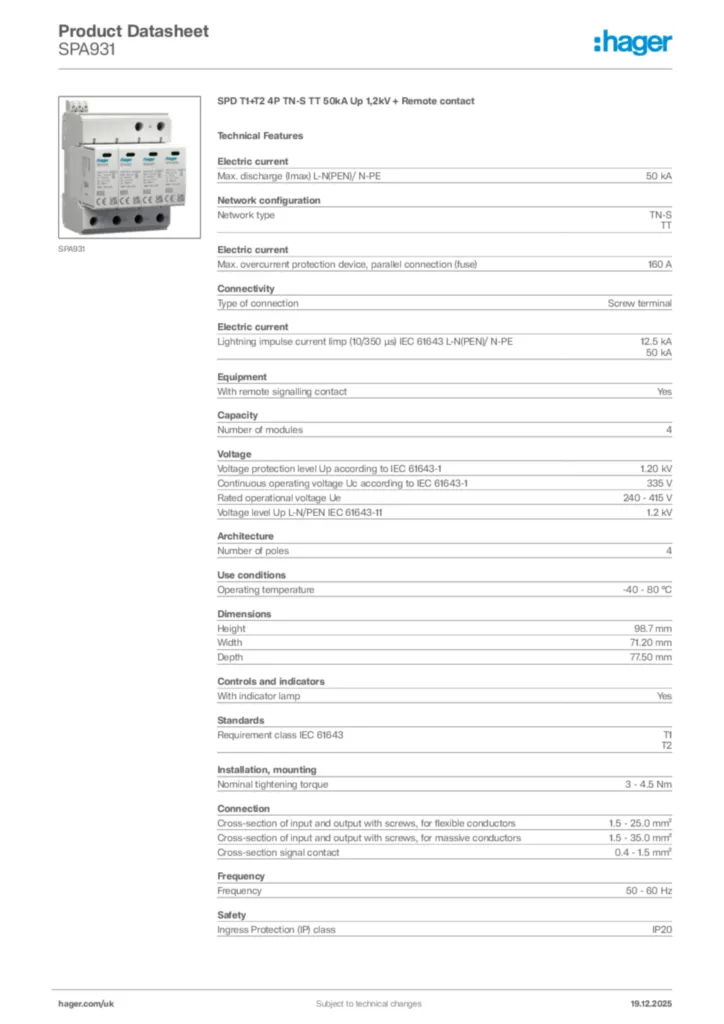

Product image
-
Installation manual
Installation manual en-GB, fr-FR, de-DE, pl-PL 2021-05-18
PDF810,00 kB
