MCB 4P 10kA/15kA D-10A 4M NDN410A
EAN-Nr.
3250614619373
Packaging
3 PCEs
Price
£169.53
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles4 P
-
Type of pole4 P
-
CurveD
Main electrical features
-
Rated operational voltage Ue400 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage500 V
-
Rated impulse withstand voltage6000 V
Electric current
-
Rated service breaking capacity Ics AC according IEC 60898-17.5 kA
-
Rated service breaking capacity Ics under 400V AC according IEC 60947-27.5 kA
-
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-110 kA
Electric current / temperature
-
Rating current 30°C10 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product83 mm
-
Width of installed product70 mm
Power
-
Total power loss under IN8.29 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Installation, mounting
-
Tightening torque2,8Nm
Equipment
-
Can be accessorizedYes
Standards
-
Standard textEN 60898-1 ; IEC 60947-2
Use conditions
-
Operating temperature-25…70 °C
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB -

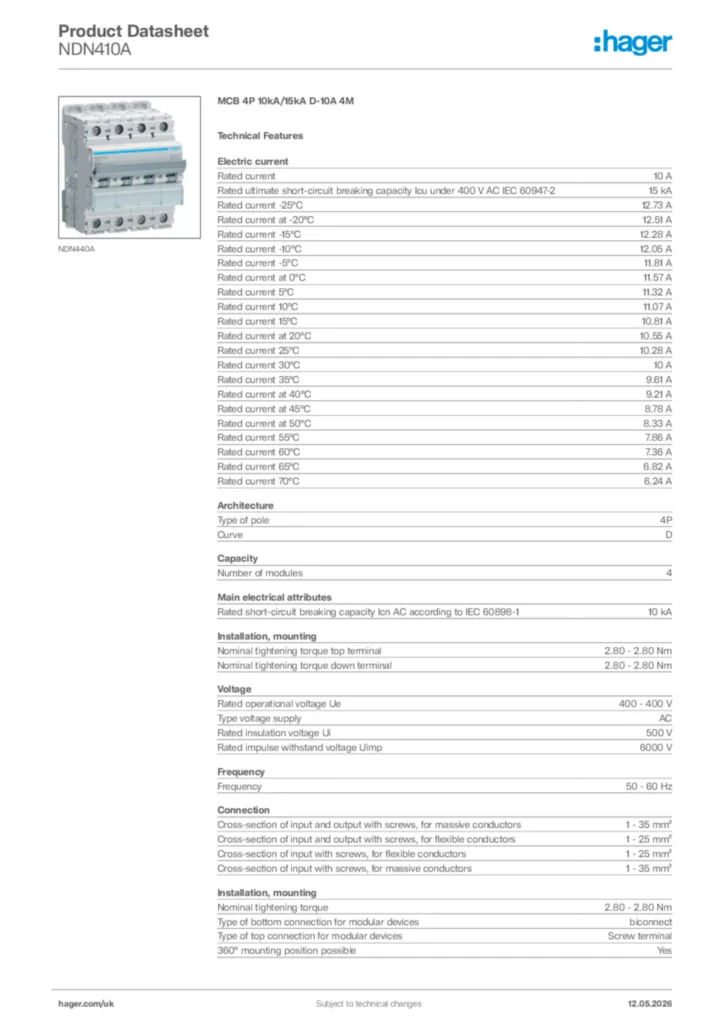

Product data sheet
Product data sheets for NDN410A
UK_PD_TDS_TransformerMotorprotection.pdf
PDF204 KB -
Product licence
Product licence for NDN410A
Licence for UNITED_KINGDOM
PDF243 KBProduct licence for NDN410A
Licence for ITALY
PDF519 KB -
Declaration of conformity
EU Declaration of conformity for NDN410A
Declaration
PDF689 KBEU Declaration of conformity for NDN410A
UKCA Declaration of Conformity
PDF653 KBEU Declaration of conformity for NDN410A
EU Declaration of Conformity
PDF650 KBEU Declaration of conformity for NDN410A
Declaration
PDF710 KBEU Declaration of conformity for NDN410A
Declaration
PDF786 KBEU Declaration of conformity for NDN410A
Declaration
PDF716 KB -
PEP document
Product environmental profile for NDN410A
PDF432 KB -
RoHS report
Pollutant guidelines for NDN410A
RoHS declaration NDN410A (english)
PDF103 KB
More documentation
