HMC499T

MCB 4P 15kA C-125A 6M
EAN
3250613231323
Quantity
1
Trade price*
£554.49 /prt.*
  • Architecture
    • Number of poles
      • 4 P
    • Type of pole
      • 4 P
    • Curve
      • C
  • Main electrical features
    • Rated operational voltage Ue
      • 415 V
    • Frequency
      • 50/60 Hz
    • Rated current
      • 125 A
    • Type of supply voltage
      • AC
  • Voltage
    • Rated insulation voltage
      • 500 V
    • Rated impulse withstand voltage
      • 6000 V
  • Electric current / temperature
    • Rating current 30°C
      • 125 A
  • Dimensions
    • Depth of installed product
      • 70 mm
    • Height of installed product
      • 90 mm
    • Width of installed product
      • 106 mm
  • Power
    • Total power loss under IN
      • 42.25 W
  • Endurance
    • Electric endurance in number of cycles
      • 4000
    • Number of mechanical operations
      • 20000
  • Capacity
    • Number of modules
      • 6
  • Installation, mounting
    • Tightening torque
      • 3,5 to 5Nm
  • Connection
    • Connection cross-sect. flexible conductor
      • 50mm²
    • Connection cross-sect. rigid cable
      • 70mm²
    • Type of connection
      • terminal with tightening compensation system
  • Standards
    • Standard text
      • EN 60898-1
      • IEC 60947-2
      • AS/NZS 60898-1
    • European directive WEEE
      • not concerned
  • Safety
    • Protection index IP
      • IP20
Documentations

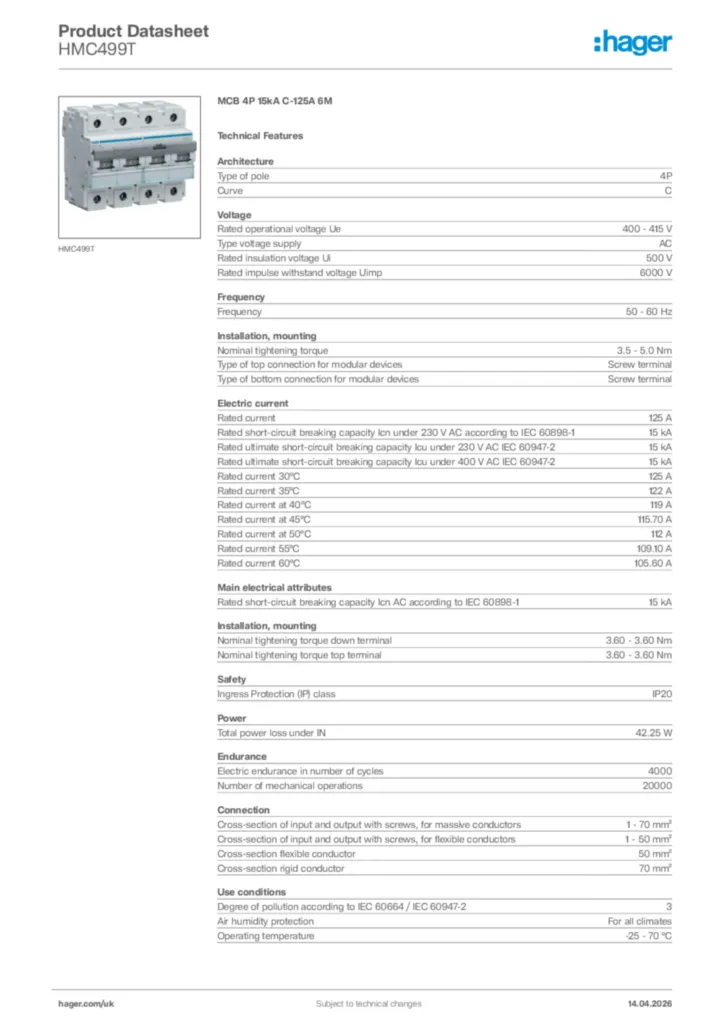

Commercial Distribution Catalogue 13 MBPDFDownload
