Alarm contact 1C+1O 6A 240V AC MZ202
EAN-Nr.
3250614562020
Packaging
1 piece
Price
£92.10
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 223 products available
Referenced by
-
HMC190TMCB 1P 15kA C-100A 1.5M
£100.79 / piece* -
NBN240AMCB 2P 10kA/15kA B-40A 2M
£67.96 / piece* -
HMC380TMCB 3P 15kA C-80A 4.5M
£185.82 / piece* -
HMC390T
MCB 3P 15kA C-100A 4.5M
£185.82 / piece* -
CFA690RCCB 3P+N 125A 300mA A
£550.27 / piece* -
CDC690RCCB 3P+N 125A 30mA AC
£600.24 / piece* -
CDB540ERCCB 1P+N 40A 30mA B
£331.04 / piece* -
HMF390TMCB 3P 10kA C-100A 4.5M
£295.35 / piece* -
CDB663ERCCB 3P+N 63A 30mA B
£950.55 / piece* -
HMC399T
MCB 3P 15kA C-125A 4.5M
£185.82 / piece* -
ADC832FRCBO 1P+N 4.5kA C-32A 30mA AC Class
£198.82 / piece* -
CDB640ERCCB 3P+N 40A 30mA B
£950.55 / piece* -
CDB525ERCCB 1P+N 25A 30mA B
£331.04 / piece* -
NCN220AMCB 2P 10kA/15kA C-20A 2M
£66.03 / piece* -
HMC490TMCB 4P 15kA C-100A 6M
£667.32 / piece* -
NDN163AMCB 1P 10kA/15kA D-63A 1M
£28.91 / piece* -
ADC806FRCBO 1P+N 4.5kA C-6A 30mA AC Class
£198.82 / piece* -
ADC810FRCBO 1P+N 4.5kA C-10A 30mA AC Class
£200.71 / piece* -
ADC816FRCBO 1P+N 4.5kA C-16A 30mA AC Class
£200.71 / piece* -
ADC820FRCBO 1P+N 4.5kA C-20A 30mA AC Class
£200.71 / piece*
Technical characteristics
Electric current
-
Rated current6 A
Connectivity
-
Type of connectionScrew terminal
Capacity
-
Number of modules0.50
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor6 mm²
-
Cross-section rigid conductor10 mm²
Voltage
-
Rated insulation voltage Ui4,000 V
-
Type voltage supplyAC
Endurance
-
Number of mechanical operations12,000
-
Electric endurance in number of cycles6,000
Use conditions
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 80 °C
Power
-
Total power loss under IN0.20 W
Dimensions
-
Width9 mm
-
Depth68 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

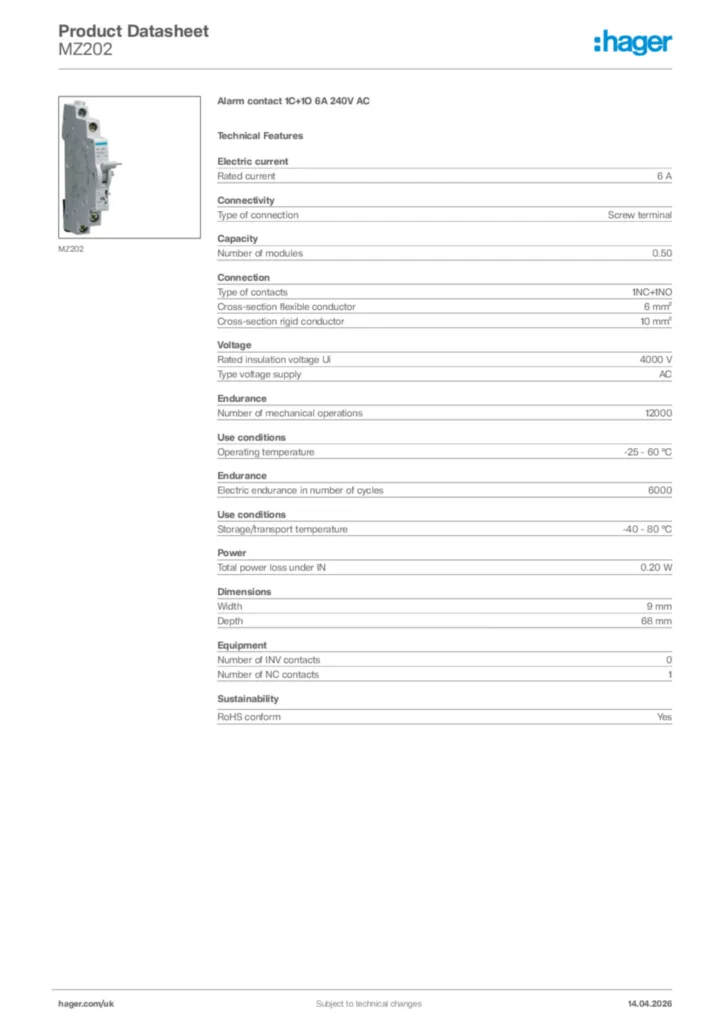

Hager Product data sheet MZ202
Alarm contact 1C+1O 6A 240V AC
PDF -
Installation manual
Notice Auxiliaire de signalisation MZ202
Installation manual cs-CZ, en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2015-04-07
PDF698,03 kB -
Product data sheet
UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf
Technical data sheet including characteristics for circuit breaker auxiliaries.
PDF97,81 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
