Shunt trip 230-415V AC 110-130V DC MZ203
EAN-Nr.
3250614562037
Packaging
1 piece
Price
£64.83
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Main electrical features
-
Rated operational voltage Ue230 / 415 V
-
Frequency50/60 Hz
-
Type of supply voltageAC/DC
Voltage
-
Rated insulation voltage4000 V
Dimensions
-
Depth of installed product68 mm
-
Height of installed product83 mm
-
Width of installed product18 mm
Power
-
Total power loss under IN25.3 W
Installation, mounting
-
Tightening torque1,2Nm
Connection
-
Connection cross-sect. flexible conductor6mm²
-
Connection cross-sect. rigid cable10mm²
Use conditions
-
Operating temperature-25…60 °C
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB -

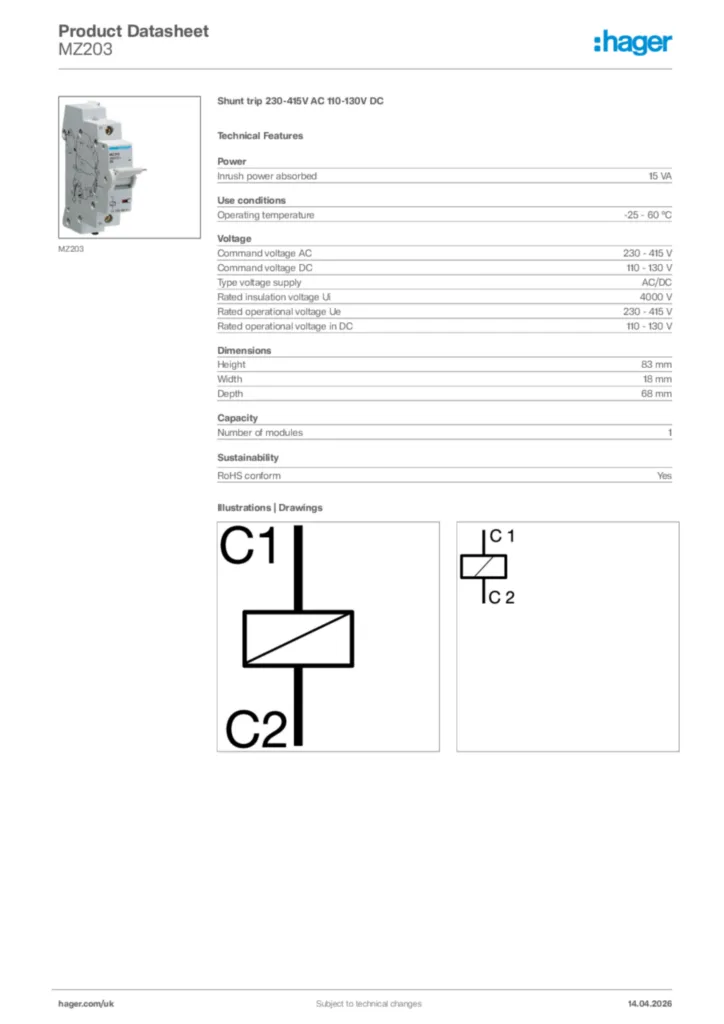

Product data sheet
Product data sheets for MZ203
UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf
PDF97 KB -
Declaration of conformity
EU Declaration of conformity for MZ203
Declaration
PDF182 KB
EU Declaration of conformity for MZ203
Declaration
PDF223 KB -
RoHS report
Pollutant guidelines for MZ203
RoHS-declaration 2023-10-20 (english)
PDF33 KB
Pollutant guidelines for MZ203
REACH-declaration 2023-10-20 (english)
PDF32 KB
More documentation
