Under voltage release 230V AC MZ206
EAN-Nr.
3250614562068
Packaging
1 piece
Price
£68.72
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 263 products available
Referenced by
-
HMD490TMCB 4P 15kA D-100A 6M
£770.66 / piece* -
HMC390TMCB 3P 15kA C-100A 4.5M
£185.82 / piece* -
HMD380TMCB 3P 15kA D-80A 4.5M
£187.59 / piece* -
HMF390TMCB 3P 10kA C-100A 4.5M
£295.35 / piece* -
HMD499T
MCB 4P 15kA D-125A 6M
£908.03 / piece* -
HMC380T
MCB 3P 15kA C-80A 4.5M
£185.82 / piece* -
HMD199TMCB 1P 15kA D-125A 1.5M
£101.75 / piece* -
CEA225URCCB 2P 25A 100mA A Class
£181.09 / piece* -
HMD390T
MCB 3P 15kA D-100A 4.5M
£187.59 / piece* -
HMD399T
MCB 3P 15kA D-125A 4.5M
£187.59 / piece* -
HMD299TMCB 2P 15kA D-125A 3M
£430.88 / piece* -
ADC832FRCBO 1P+N 4.5kA C-32A 30mA AC Class
£198.82 / piece* -
HMC490T
MCB 4P 15kA C-100A 6M
£667.32 / piece* -
HMF399T
MCB 3P 10kA C-125A 4.5M
£440.80 / piece* -
HMD190TMCB 1P 15kA D-100A 1.5M
£101.75 / piece* -
ADC806FRCBO 1P+N 4.5kA C-6A 30mA AC Class
£198.82 / piece* -
ADC810FRCBO 1P+N 4.5kA C-10A 30mA AC Class
£200.71 / piece* -
ADC816FRCBO 1P+N 4.5kA C-16A 30mA AC Class
£200.71 / piece* -
ADC820FRCBO 1P+N 4.5kA C-20A 30mA AC Class
£200.71 / piece* -
ADC825FRCBO 1P+N 4.5kA C-25A 30mA AC Class
£200.71 / piece*
Technical characteristics
Power
-
Inrush power absorbed3.50 VA
Use conditions
-
Operating temperature-25 - 60 °C
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
-
Rated insulation voltage Ui4,000 V
-
Type voltage supplyAC
Functions
-
DelayedNo
Dimensions
-
Width17.50 mm
-
Depth68 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

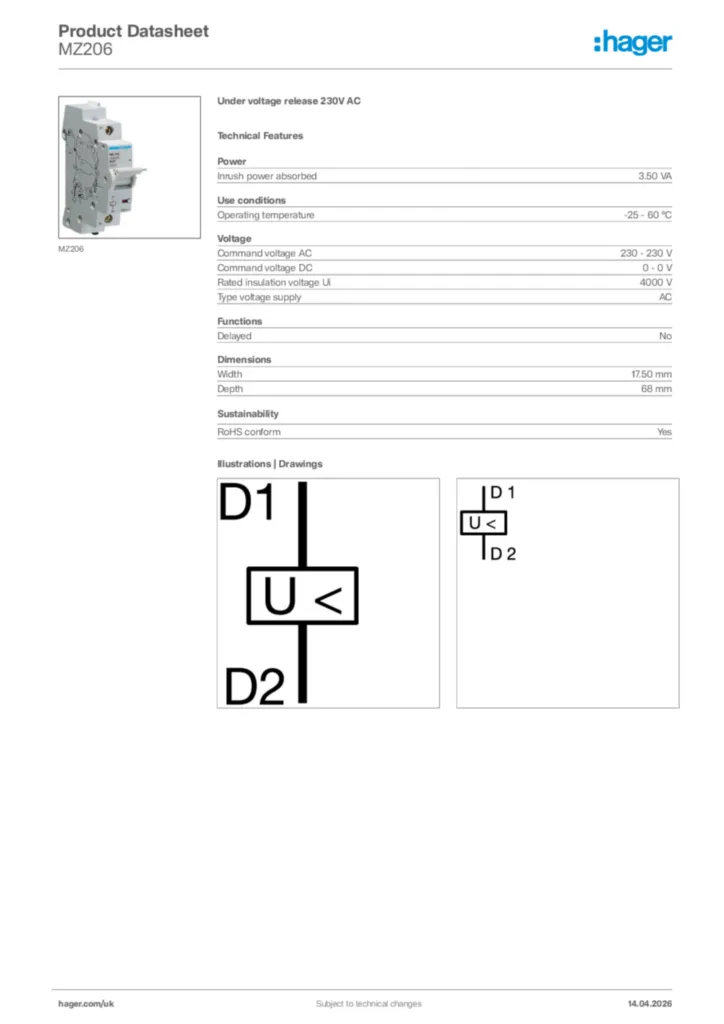

Hager Product data sheet MZ206
Under voltage release 230V AC
PDF -
Product data sheet
UK_PD_TDS_CIRCUITBREAKERAUXILLIARIES.pdf
Technical data sheet including characteristics for circuit breaker auxiliaries.
PDF97,81 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
