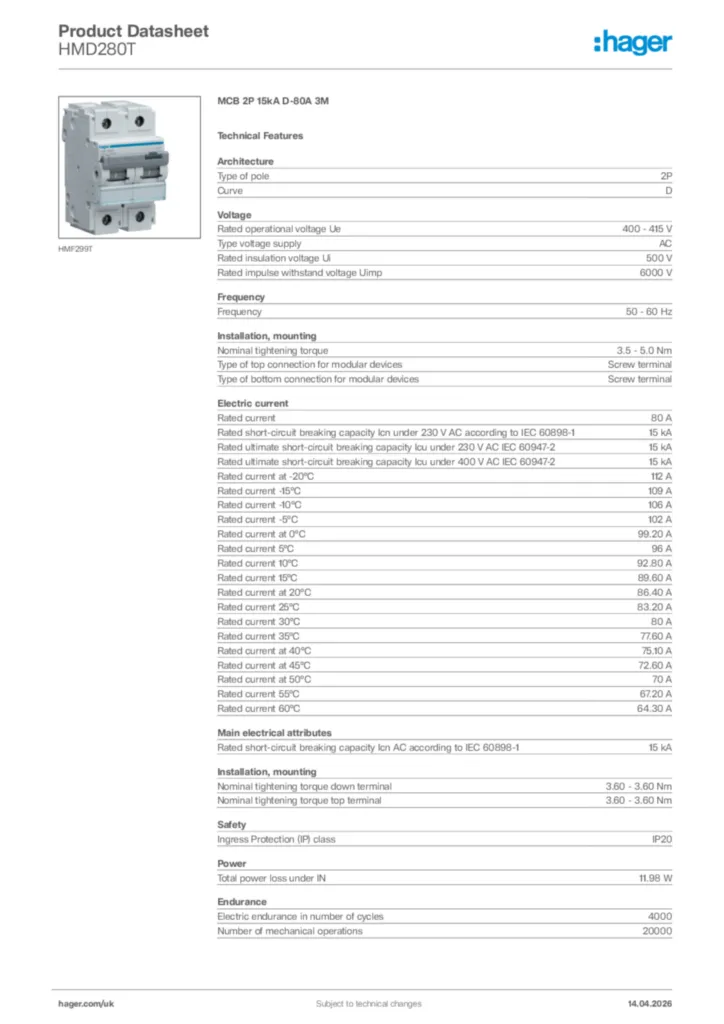

MCB 2P 15kA D-80A 3M HMD280T
EAN-Nr.
3250613231361
Packaging
1 piece
Price
£322.51
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 2 products available -
See more 1 other products available
Complete your system
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206
Under voltage release 230V AC
£68.72 / piece*
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece* -
MZN176Locking wire for modular product
£9.24 / piece*
-
MZN130Terminal cover 1P
£28.65 / piece*
Technical characteristics
Architecture
-
Type of pole2P
-
CurveD
Voltage
-
Rated operational voltage Ue400 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6,000 V
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Rated current80 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-115 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-215 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current at -20°C112 A
-
Rated current -15°C109 A
-
Rated current -10°C106 A
-
Rated current -5°C102 A
-
Rated current at 0°C99.20 A
-
Rated current 5°C96 A
-
Rated current 10°C92.80 A
-
Rated current 15°C89.60 A
-
Rated current at 20°C86.40 A
-
Rated current 25°C83.20 A
-
Rated current 30°C80 A
-
Rated current 35°C77.60 A
-
Rated current at 40°C75.10 A
-
Rated current at 45°C72.60 A
-
Rated current at 50°C70 A
-
Rated current 55°C67.20 A
-
Rated current 60°C64.30 A
Installation, mounting
-
Nominal tightening torque3.5 - 5.0 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
-
Nominal tightening torque down terminal3.60 - 3.60 Nm
-
Nominal tightening torque top terminal3.60 - 3.60 Nm
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-115 kA
Power
-
Total power loss under IN11.98 W
Endurance
-
Electric endurance in number of cycles4,000
-
Number of mechanical operations20,000
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 70 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 50 mm²
-
Cross-section flexible conductor50 mm²
-
Cross-section rigid conductor70 mm²
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-23
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Capacity
-
Number of modules3
Connectivity
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height90 mm
-
Width53 mm
-
Depth70 mm
