125A Power/Lighting Board 6/8 Way Pan Assemblies Modbus Comms JKD168TM

EAN-Nr.
5015652607670
Packaging
1 piece
Price
£3,477.52
/ piece *
£3,477.52
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

125A Power/Lighting Board 6/8 Way Pan Assemblies Modbus Comms

JKD168TM

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • See more (25)
    • Common Accessories 1 products available
    • Gland plate for enclosure 2 products available
    • Trans­ition cover section for install­a­tion duct 1 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 2 products available
    • Component for earth­ing/equi­po­ten­tial bonding 1 products available
    • Insert for lock system 1 products available

    Complete your system

    • Common Accessories
    • Gland plate for enclosure
    • Trans­ition cover section for install­a­tion duct
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Component for earth­ing/equi­po­ten­tial bonding
    • Insert for lock system
    • Distrib­utor assembly for device surface mounting
    • Distrib­utor assembly with main switch
    • Small equipped distri­bu­tion board
    • Cable entry cabinet
    • Mounting for labelling material
    • Lock system
    • Busbar system for distri­bu­tion boards
    • Compon­ents for arrange­ment/baying system
    • Busbar terminal
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • JKLABELPACK

      Spare Label Pack - All Sizes (One Pack)
      £11.87  / piece*
    • JK1PLATEM

      JK1 Spare Gland Plate 1.2mm
      £42.12  / piece*
    • JK1PLATEB

      JK1 Spare Brass Gland Plate 2mm
      £60.03  / piece*
    • JK06TK

      Trunking Kit for TPN 6"
      £158.72  / piece*
    • JK101SE

      JK1 Small Cable Spreader Box
      £157.73  / piece*
    • JK102SPD

      125A Surge Protection Kit Type II
      £457.38  / piece*
    • JK030BEB

      Earth Bar Hi Int, 2 x 15 Connections
      £89.96  / piece*
    • JK222PK

      JK1/JK2 Door Lock Kit
      £24.66  / piece*
    • JK11254D

      125A Direct Connect Incomer Kit
      £97.37  / piece*
    • JK11254S

      125A 4 Pole JK1 Switch Incomer Kit
      £170.11  / piece*
    • JK11253S

      125A 3 Pole JK1 Switch Incomer Kit
      £125.09  / piece*
    • JK11004S

      100A 4 Pole JK1 Switch Incomer Kit
      £107.28  / piece*
    • JK10634C

      63A 4 Pole JK1 Contactor Incomer Kit
      £1,696.14  / piece*
    • JK11004C

      100A 4 Pole Contactor Incomer Kit
      £1,854.96  / piece*
    • JK11254CO

      125A 4 pole Changeover Incomer Kit
      £1,155.35  / piece*
    • JKD125MID

      125A Dual Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side.
      £2,688.94  / piece*
    • JKD125TMID

      125A Triple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side
      £3,217.64  / piece*
    • JK102LE

      JK1 Large Cable Spreader Box
      £212.64  / piece*
    • JK01DC

      JK Door Document Clip (Pack of 10)
      £20.41  / piece*
    • JK222A

      KEYLOCK
      £35.81  / piece*
    • JKSINGLEPL

      125A Power & Lighting Single Phase Link
      £23.18  / piece*
    • JK100HK

      JK1 Horizontal Mechanical Connecting Kit
      £54.41  / piece*
    • JK02B

      1.5 Module Busbar Blank pack qty 3
      £8.20  / piece*
    • JK1/2TOPSHROUD

      JK Busbar Stack Top Shroud
      £24.18  / piece*
    • JKD101SPD

      125A Power & Lighting Surge Protection Kit Type I
      £711.48  / piece*

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Suit­able for outdoor usage
      No
    Archi­tec­ture
    • Number of poles
      3
    Func­tions
    • Has protec­tion main switch
      Yes
    • Over­voltage protec­tion
      No
    Capa­city
    • Number of modules
      42
    Elec­tric current
    • Rated current
      125 A
    Dimen­sions
    • Depth
      165.50 mm
    • Height
      1,250 mm
    • Width
      465 mm
    • Thick­ness of side­wall
      1 mm
    Cover, door
    • Inter­lock­able
      No
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • RAL code
      7035
    • Colour
      Light grey
    • Material
      Steel
    Connec­tion
    • Number of access­ible phases
      3
    Scope of delivery
    • Number of RCCB in enclosure
      0
    Equip­ment
    • With energy meter
      Yes
    • Exten­sion possible
      Yes
    Safety
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    Hager REACH declaration JKD168TM
    PDF
    Hager RoHS report JKD168TM
    PDF

    Downloads

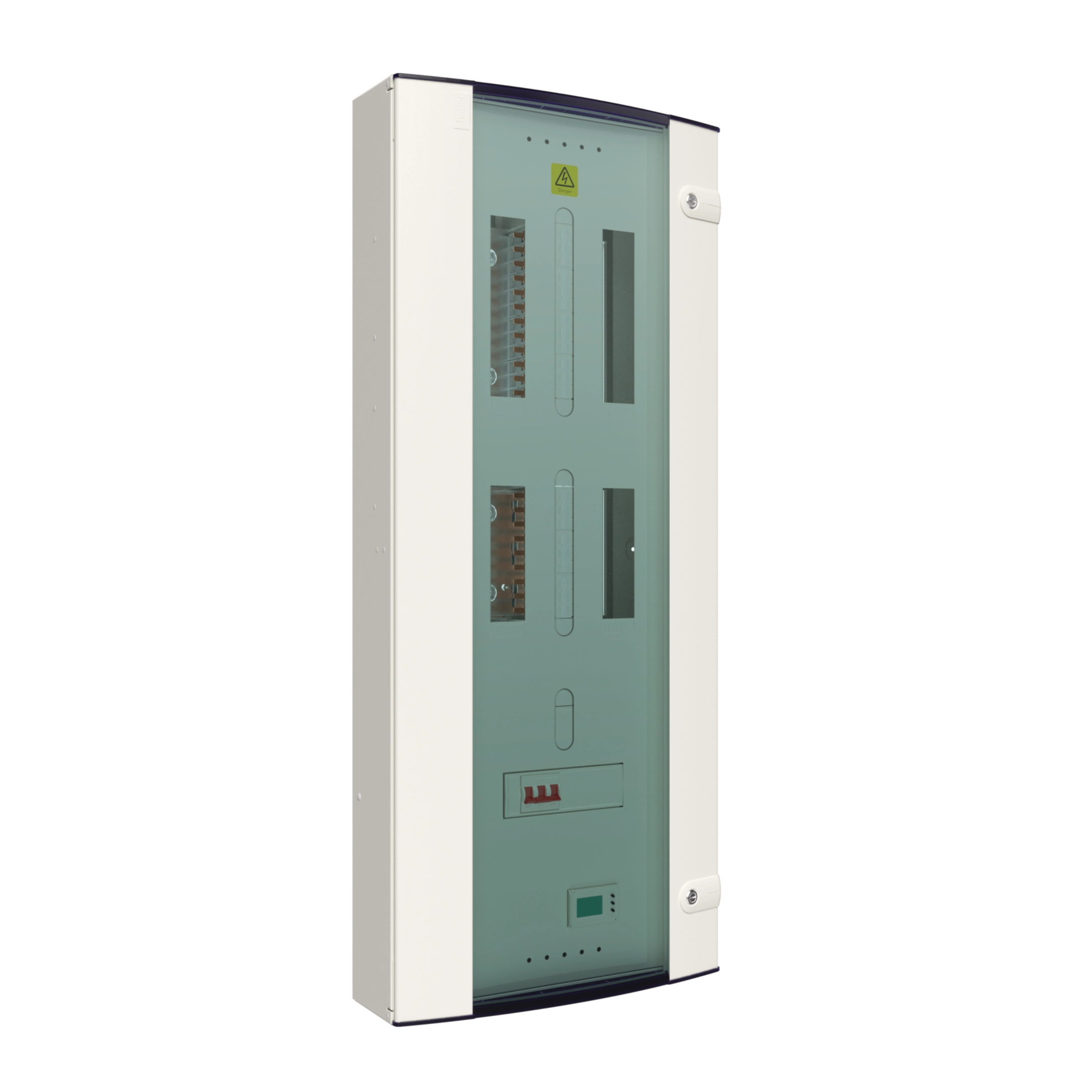

    • Product image

      Image JKD168TM | Hager

      Product Image JKD168TM

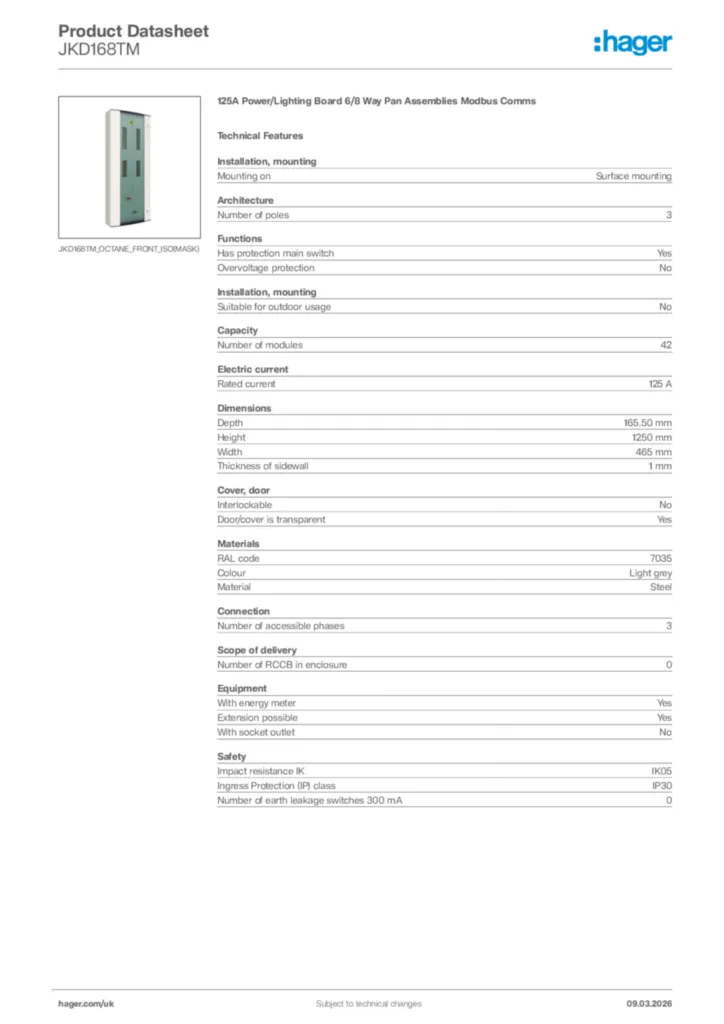

    • Product datasheet

      Image Hager Product data sheet JKD168TM | Hager

      Hager Product data sheet JKD168TM

      125A Power/Lighting Board 6/8 Way Pan Assemblies Modbus Comms

      PDF

    • Installation manual

      Image Installation manual en-GB 2016-04-26 | Hager

      Installation manual en-GB 2016-04-26

      PDF
      1,29 MB

    • Product data sheet

      Image HGR43 Meter Data | Hager

      HGR43 Meter Data

      Product data sheet en-GB 2022-09-29

      PDF
      552,32 kB
      Image Power & Lighting Board | Hager

      Power & Lighting Board

      Product data sheet en-GB 2020-08-26

      PDF
      912,73 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-03-17

      PDF
      875,99 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-24

      PDF
      820,60 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      248,06 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      253,91 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      229,40 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      235,36 kB
