    125A Surge Protection Kit Type II JK102SPD

    Price
    £471.10
    / piece *
    £471.10
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    125A Surge Protection Kit Type II

    JK102SPD

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Rated insu­la­tion voltage Ui
      440 V
    • Type voltage supply
      AC
    Equip­ment
    • With remote signalling contact
      No
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 50 °C
    • Max. alti­tude
      2,000 m
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      80 mm
    • Width
      110 mm
    • Depth
      145 mm
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      6 - 35 mm²
    • Cross-sec­tion rigid conductor
      6 - 50 mm²
    • Number of connec­tions
      1
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Mounting type
      DIN rail
    Install­a­tion, mounting
    • Suit­able for indoor usage
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Mater­ials
    • Material
      Ther­mo­plastic
    • Colour
      Light grey
    • RAL code
      7035

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration JK102SPD
    PDF
    RoHS report JK102SPD
    PDF

    Downloads

    • Product image

      Image JK102SPD | Hager

      Product Image JK102SPD

    • Product datasheet

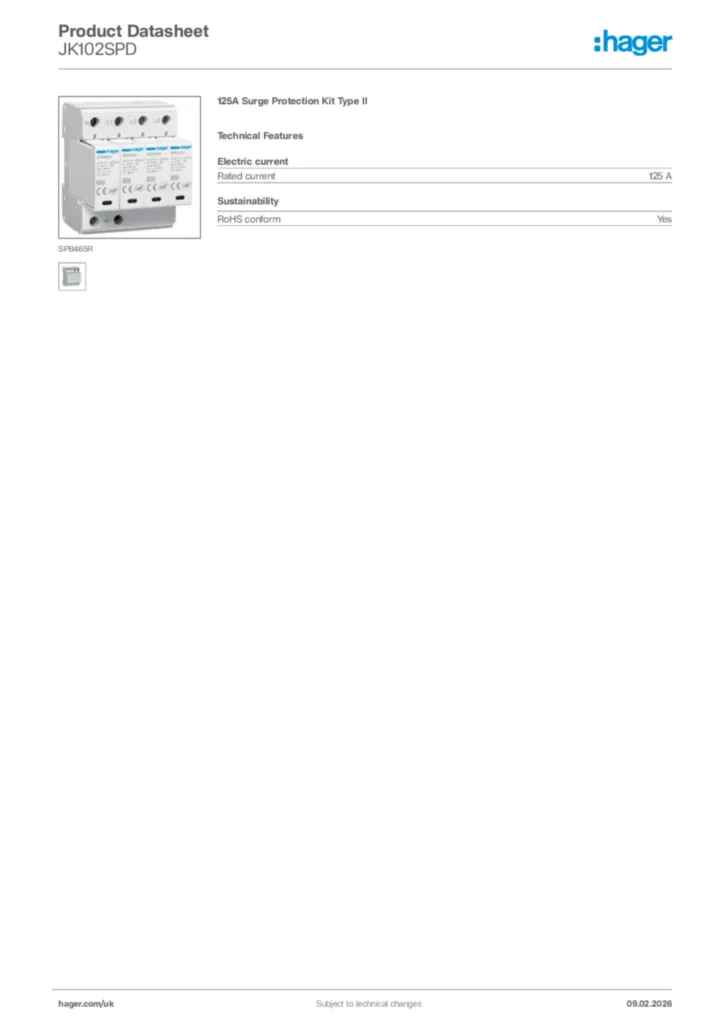

      Image Hager Product data sheet JK102SPD | Hager

      Hager Product data sheet JK102SPD

      125A Surge Protection Kit Type II

      PDF

    • Installation manual

      Image Installation manual en-GB 2017-05-17 | Hager

      Installation manual en-GB 2017-05-17

      PDF
      459,23 kB

    • Product data sheet

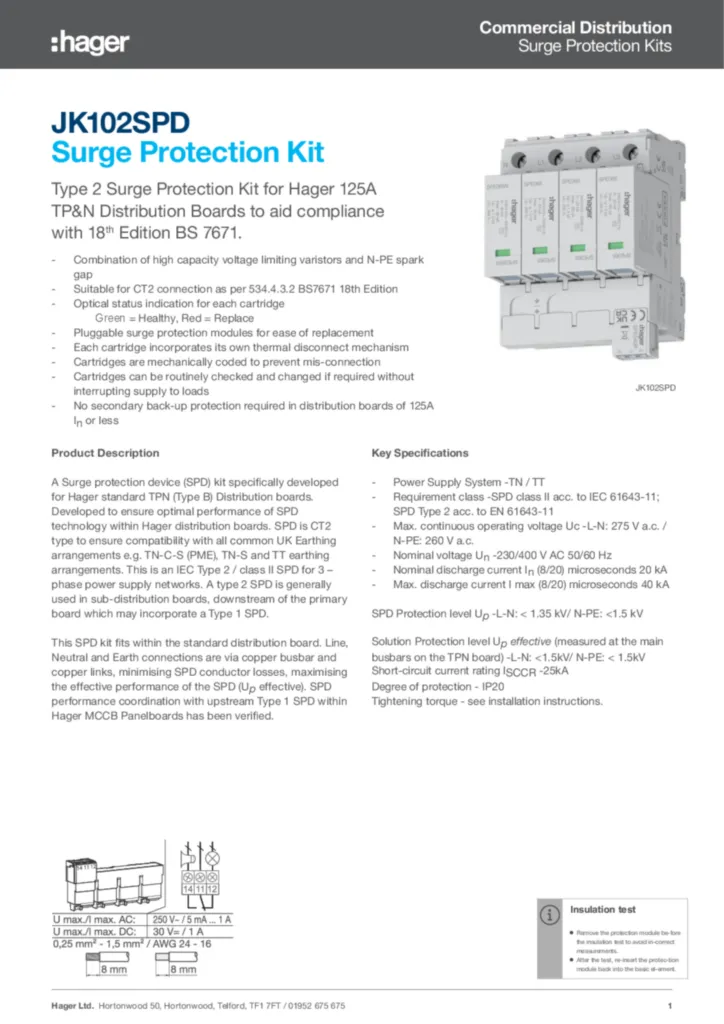

      Image Product data sheet en-GB 2026-05-07 | Hager
