Moulded Case Circuit Breaker X250 3P 25kA 100A TM HHB100Z
EAN-Nr.
3250613347536
Packaging
1 piece
Price
£350.19
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 5 products available -
Under voltage coil 8 products available -
Auxiliaries contact block 4 products available -
Locking interlocking functions 1 products available -
Handle for power circuit breaker 2 products available -
See more 15 other products available
Complete your system
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece* -
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA021H
Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece* -
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece*
-
HXB030H
Direct rotary handle x250
£103.15 / piece* -
HXB031HExtended rotary handle x250
£174.38 / piece*
-
HXB040HMotor operator x250 24V DC
£953.11 / piece* -
HXB042HMotor operator x250 230-240VAC
£1,000.78 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYB001HCollar terminal x250 Al/Cu 3P
£290.74 / piece* -
HYB005HCollar term Al 1x95-240mm²(x250/h250) 3P
£420.21 / piece* -
HYB010HStraight extension (x/P250-P250) 4P
£72.06 / piece* -
HYB011HSpreader (x/P250-P250) 3P
£72.06 / piece* -
HYB031HRear connection (x/P250-P250) - 3P
£81.62 / piece*
-
HYB019HInterphase barrier (x250-h250) 3/4P
£31.06 / piece*
-
HYB021HTerminal cover x250 3P long
£61.89 / piece* -
HYB023HTerminal cover x250 3P spreader
£61.94 / piece* -
HYB025HTerminal cover x250 3P short
£56.51 / piece* -
HYB027HTerminal cover for collar terminal for x250 3P
£61.94 / piece*
Technical characteristics
Electric current
-
Rated current100 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN17.70 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Settings
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Compatibility
-
Suitable for DIN RailNo
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual International 2021-06-09
PDF9,54 MB -

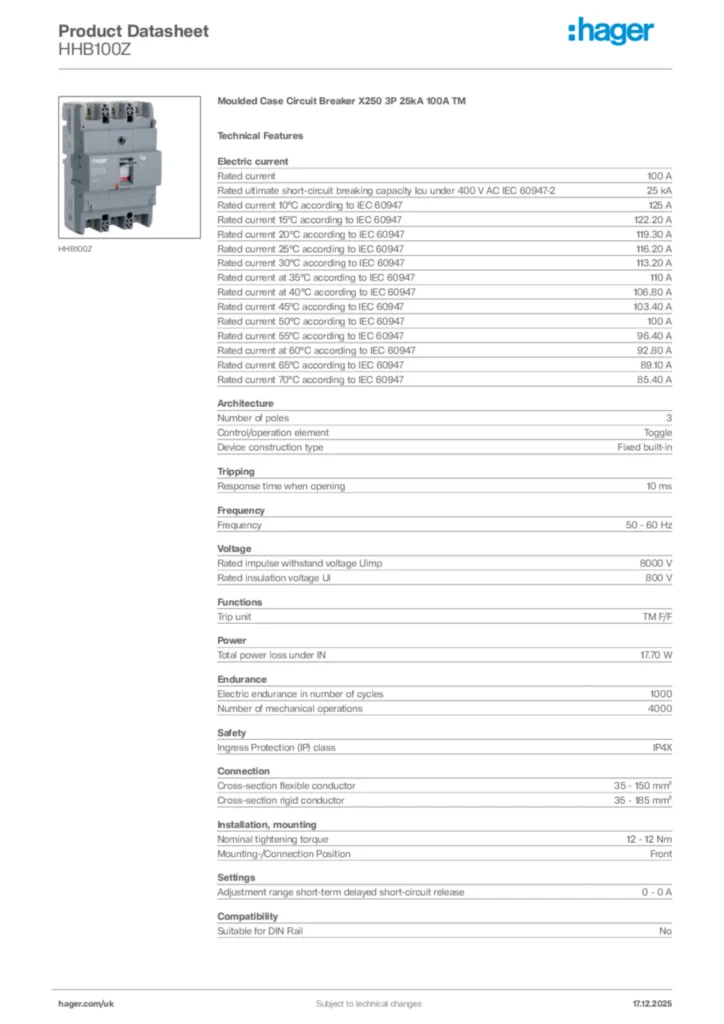

Product data sheet
UK_PD_TDS_MCCBx250.pdf
Technical data sheet for MCCB x250.
PDF1,63 MB -
Declaration of conformity
EU Declaration of Conformity
PDF326,09 kB
UKCA Declaration of Conformity
PDF329,43 kB
