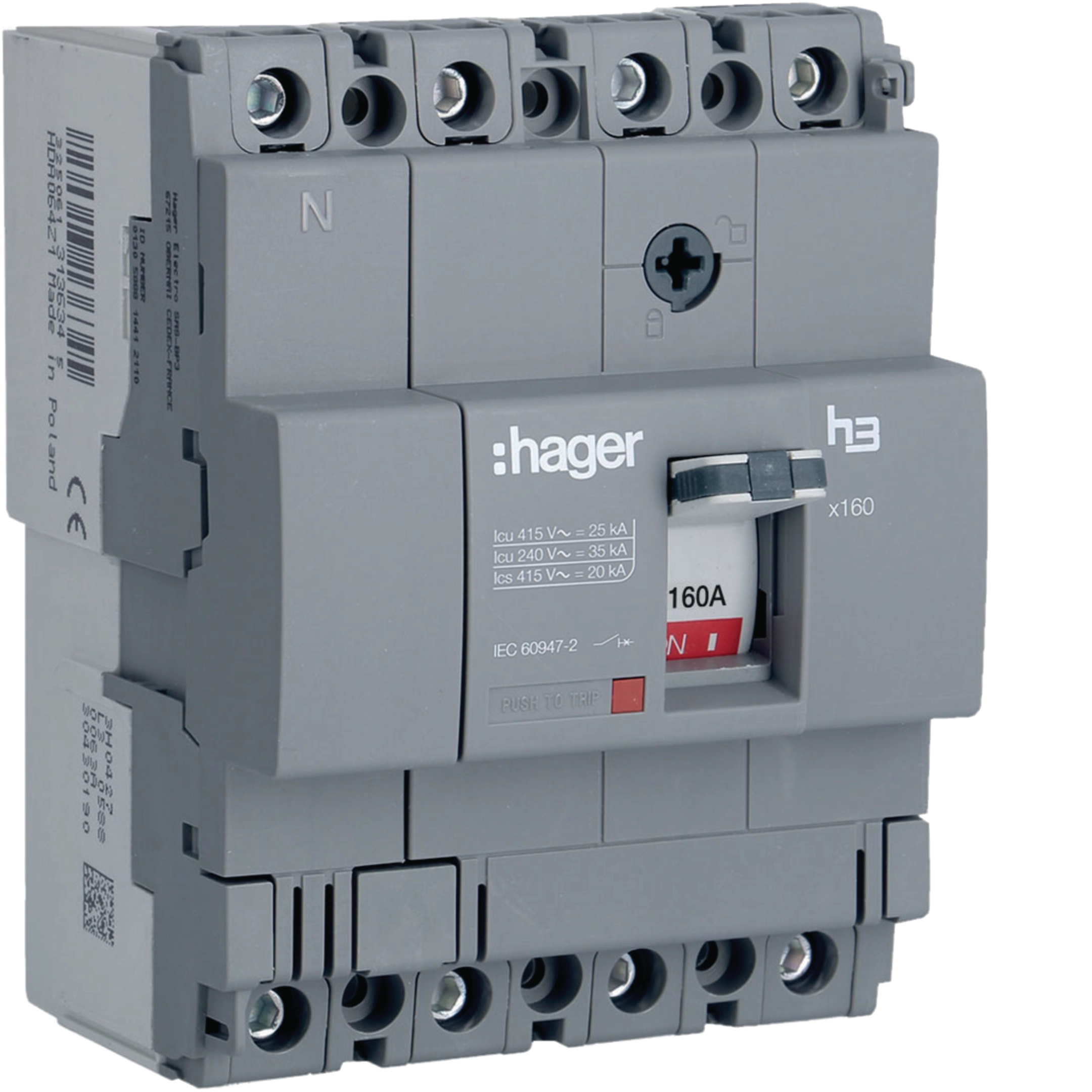

Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 160A 25kA CTC HHA161Z
EAN-Nr.
3250613149857
Packaging
1 piece
Price
£558.24
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 5 products available -
Under voltage coil 8 products available -
Auxiliaries contact block 4 products available -
Handle for power circuit breaker 2 products available -
Locking interlocking functions 1 products available -
See more 9 other products available
Complete your system
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA021H
Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece* -
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece*
-
HXA030H
Direct rotary handle x160
£86.81 / piece* -
HXA031HExtended rotary handle x160
£151.73 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece*
-
HYA013HExtended connection x160 4P collar
£60.63 / piece* -
HYA015HSpreader x160 4P collar
£68.60 / piece*
-
HYA019HInterphase barrier x160 3/4P
£29.03 / piece*
-
HYA033HDIN Rail adaptator x160 3P/4P
£32.35 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYA022HTerminal cover x160 4P long
£46.86 / piece* -
HYA024HTerminal cover x160 4P spreader
£61.94 / piece* -
HYA026HTerminal cover x160 4P short
£53.73 / piece* -
HYA028HTerminal cover for collar terminal x160 4P
£58.34 / piece*

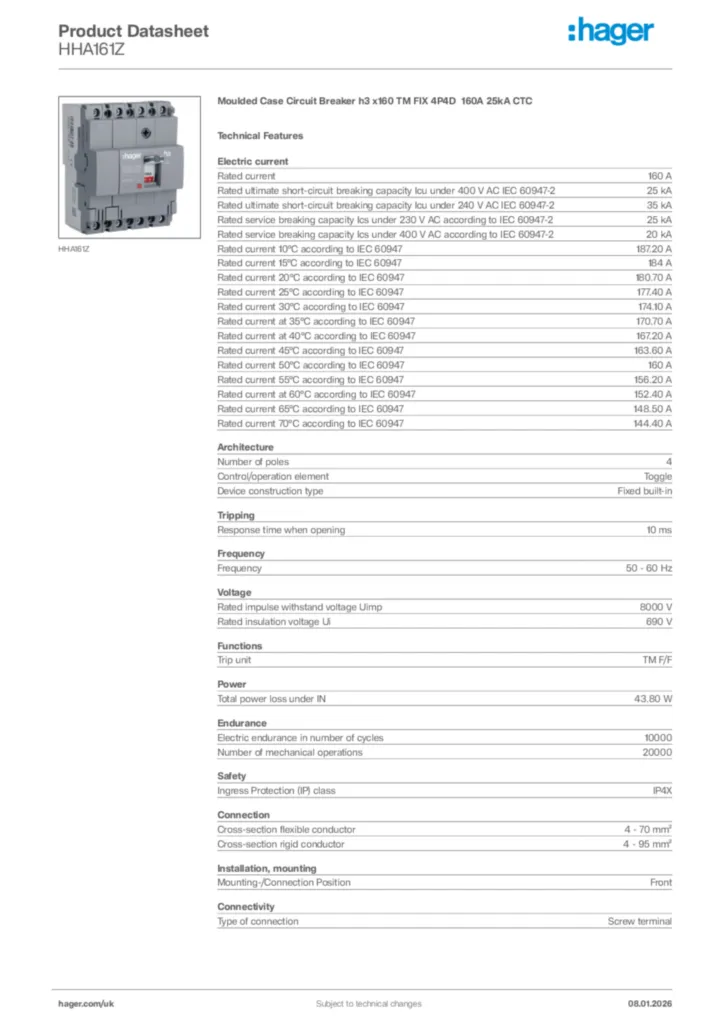

Technical characteristics
Electric current
-
Rated current160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
-
Rated current 10°C according to IEC 60947187.20 A
-
Rated current 15°C according to IEC 60947184 A
-
Rated current 20°C according to IEC 60947180.70 A
-
Rated current 25°C according to IEC 60947177.40 A
-
Rated current 30°C according to IEC 60947174.10 A
-
Rated current at 35°C according to IEC 60947170.70 A
-
Rated current at 40°C according to IEC 60947167.20 A
-
Rated current 45°C according to IEC 60947163.60 A
-
Rated current 50°C according to IEC 60947160 A
-
Rated current 55°C according to IEC 60947156.20 A
-
Rated current at 60°C according to IEC 60947152.40 A
-
Rated current 65°C according to IEC 60947148.50 A
-
Rated current 70°C according to IEC 60947144.40 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui690 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN43.80 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width100 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailYes
Installation, mounting
-
Mounting-/Connection PositionFront
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Environmental value
