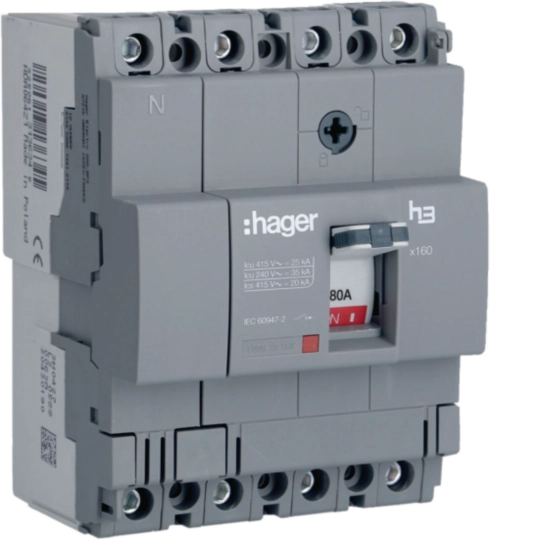

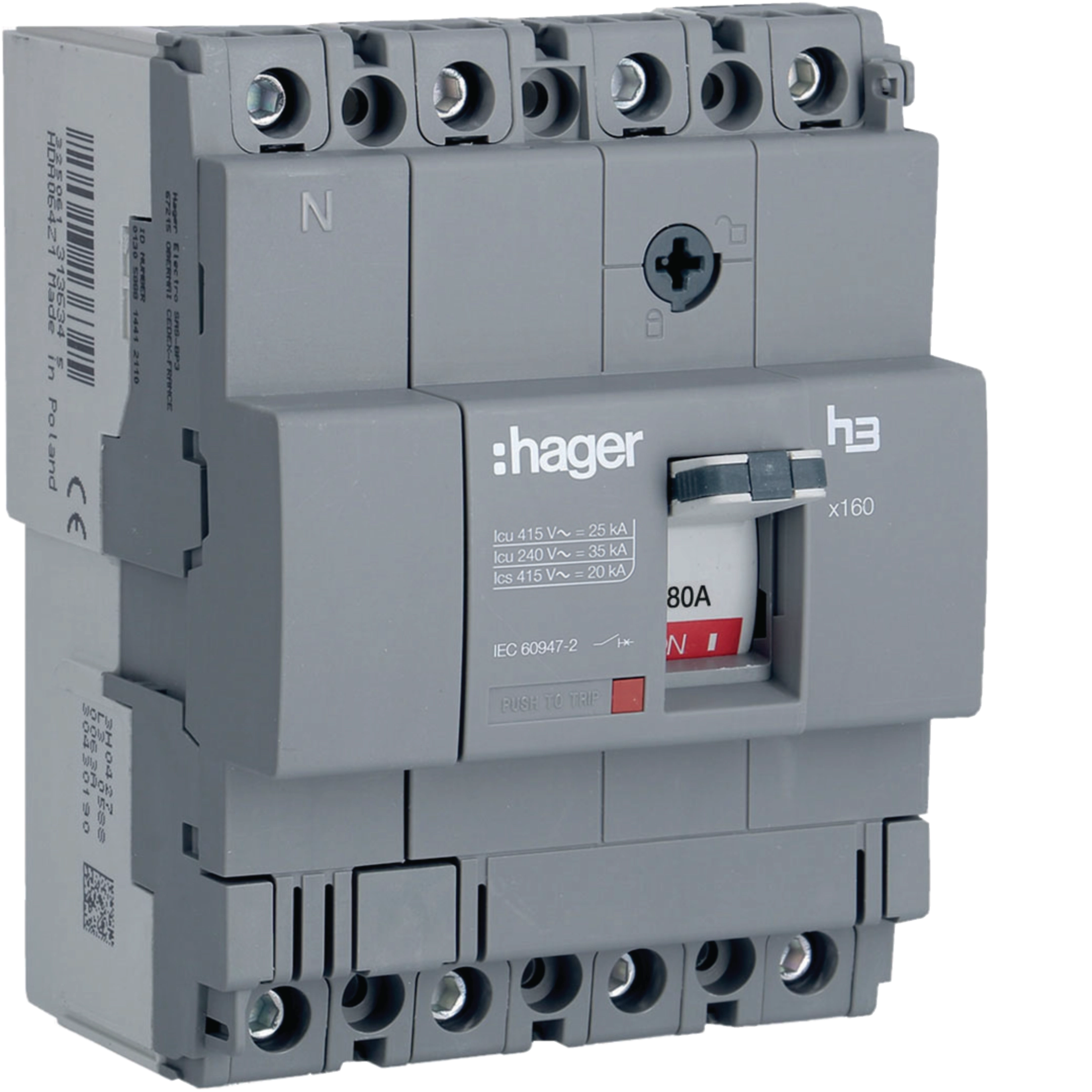

Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 80A 25kA CTC HHA081Z
EAN-Nr.
3250613149826
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Under voltage coil 8 products available -
Auxiliaries contact block 4 products available -
Shunt release 5 products available -
Locking interlocking functions 1 products available -
AOB MCCB type A-HI 1 products available -
Auxiliaries cable adaptor 1 products available
Complete your system
-
HXA051H
UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA026H
Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£51.71 / piece* -
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£110.27 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£65.27 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£189.60 / piece*
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece*
-
HYA035H
Connecting kit 3P/4P
£32.36 / piece*
-
HXA030HDirect rotary handle x160
£86.81 / piece* -
HXA031HExtended rotary handle x160
£151.73 / piece*
-
HYA013HExtended connection x160 4P collar
£60.63 / piece* -
HYA015HSpreader x160 4P collar
£68.60 / piece*
-
HYA019HInterphase barrier x160 3/4P
£29.03 / piece*
-
HYA033HDIN Rail adaptator x160 3P/4P
£32.35 / piece*
-
HYA022HTerminal cover x160 4P long
£46.86 / piece* -
HYA024HTerminal cover x160 4P spreader
£61.94 / piece* -
HYA026HTerminal cover x160 4P short
£53.73 / piece* -
HYA028HTerminal cover for collar terminal x160 4P
£58.34 / piece*
Technical characteristics
Electric current
-
Rated current80 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
-
Rated current 10°C according to IEC 60947101.90 A
-
Rated current 15°C according to IEC 6094799.40 A
-
Rated current 20°C according to IEC 6094796.90 A
-
Rated current 25°C according to IEC 6094794.30 A
-
Rated current 30°C according to IEC 6094791.60 A
-
Rated current at 35°C according to IEC 6094788.80 A
-
Rated current at 40°C according to IEC 6094786 A
-
Rated current 45°C according to IEC 6094783 A
-
Rated current 50°C according to IEC 6094780 A
-
Rated current 55°C according to IEC 6094776.80 A
-
Rated current at 60°C according to IEC 6094773.40 A
-
Rated current 65°C according to IEC 6094770 A
-
Rated current 70°C according to IEC 6094766.30 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui690 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN18.90 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations20,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width100 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailYes
Installation, mounting
-
Mounting-/Connection PositionFront
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet
Hager Product data sheet HHA081Z
Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 80A 25kA CTC
PDF -
Installation manual
Installation manual International 2021-06-07
PDF8,51 MB
Installation manual International 2021-06-07
PDF12,00 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-03-20
PDF430,96 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-03-20
PDF435,49 kB
More documentation
