The Hager h3 x160 TM ADJ 3P3D 80A 25kA MCCB protects three-phase circuits in commercial and industrial installations. Rated 80 A, 220-415 V, 50/60 Hz, it delivers Icu 25 kA (400 V) and 35 kA (240 V), Ics up to 20 kA. TM A/F trip with adjustable thermal 0.63-1 x In optimizes coordination. IP4X, Uimp 8 kV, Ui 690 V. Screw terminals for 4-95 mm² conductors. Compact and durable (10k electrical/20k mechanical cycles).
EAN-Nr.
3250613130763
Packaging
1 piece

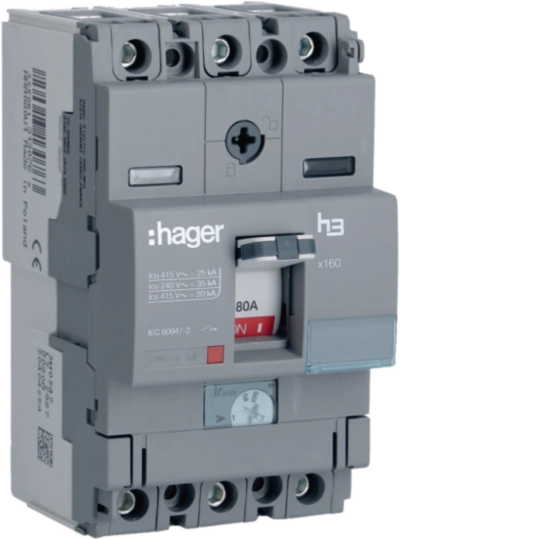

Moulded Case Circuit Breaker 3P 80A 25kA TM adjustable thermal h3 x160 HHA080U
Price
£450.23
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 5 products available -
Under voltage coil 8 products available -
AOB MCCB type A-HI 2 products available -
Auxiliaries contact block 4 products available -
Terminal cover 3 products available -
Locking interlocking functions 1 products available
Complete your system
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£259.37 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£194.96 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£143.78 / piece* -
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£149.69 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£256.92 / piece*
-
HXA051H
UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
£194.96 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£180.56 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£147.33 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£675.70 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£159.13 / piece*
-
HXA026H
Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£54.30 / piece* -
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£115.78 / piece* -
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
£68.53 / piece* -
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
£199.08 / piece*
-
HYA021H
Terminal cover x160 3P long
£37.73 / piece* -
HYA023HTerminal cover x160 3P spreader
£59.89 / piece* -
HYA025HTerminal cover x160 3P short
£53.68 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£21.63 / piece*
-
HXA030HDirect rotary handle x160
£91.15 / piece* -
HXA031HExtended rotary handle x160
£159.32 / piece*
-
HYA013HExtended connection x160 4P collar
£63.66 / piece* -
HYA014HSpreader x160 3P collar
£55.06 / piece*
-
HYA019HInterphase barrier x160 3/4P
£30.48 / piece*
-
HYA033HDIN Rail adaptator x160 3P/4P
£33.97 / piece*
Technical characteristics
Electric current
-
Rated current IN80 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
Architecture
-
Number of poles3
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/F
Power
-
Power dissipation at IN32.10 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations20,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
Dimensions
-
Height130 mm
-
Width75 mm
-
Depth68 mm
Environmental value
