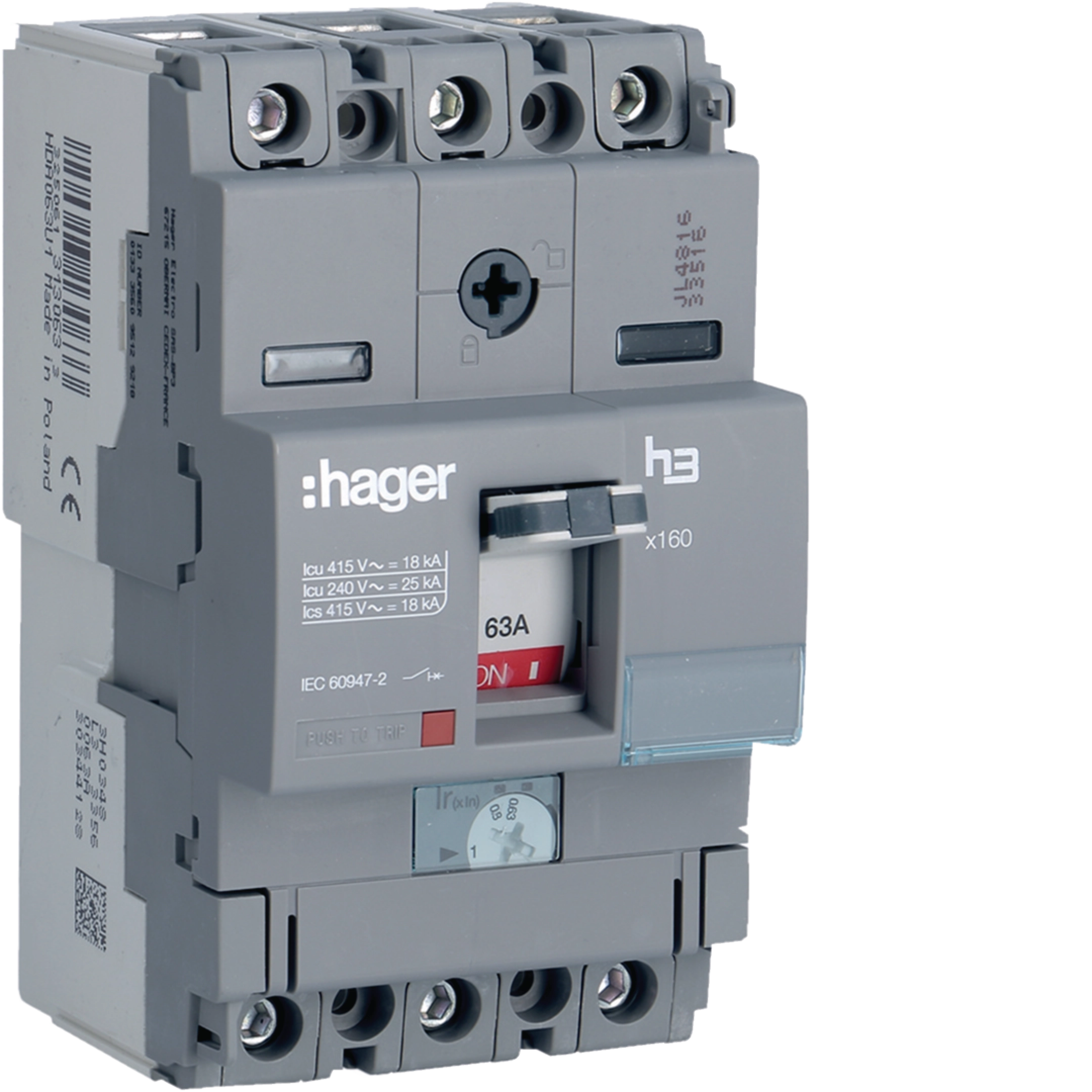

Moulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 63A 18kA CTC HDA063U
EAN-Nr.
3250613130633
Packaging
1 piece
£348.57
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles3 P
-
Type of pole3P3D
Main electrical features
-
Rated operational voltage Ue220 / 415 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage690 V
-
Rated impulse withstand voltage8 kV
Electric current
-
Rated service breaking capacity Ics under 400V AC according IEC 60947-218 kA
Dimensions
-
Depth of installed product68 mm
-
Height of installed product130 mm
-
Width of installed product75 mm
Power
-
Total power loss under IN30 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Connection
-
Type of connectionwith screw
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Can be accessorizedYes
Standards
-
Standard textIEC 60947-2
-
European directive WEEEconcerned
