MCB with dangerous arc detection 1P+N 10kA B-6A 2M ARC506U
EAN-Nr.
3250611311737
Packaging
1 piece
Price
£230.45
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Modular phase busbar 2 products available -
Mechanic accessories for low-voltage components 1 products available -
Locking interlocking functions 1 products available -
Protective cap/strip for phase busbar 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available
Complete your system
-
KDN263B
Insulated busbar 2P 63A fork 10mm² 57M
£61.38 / piece* -
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
£11.86 / piece*
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZN176
Locking wire for modular product
£9.24 / piece*
-
KZN024
Endcap for busbar 4P
£14.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206Under voltage release 230V AC
£68.72 / piece*
Technical characteristics
Electric current
-
Rated current6 A
-
Rated current -25°C7.23 A
-
Rated current at -20°C7.13 A
-
Rated current -15°C7.03 A
-
Rated current -10°C6.92 A
-
Rated current -5°C6.81 A
-
Rated current at 0°C6.70 A
-
Rated current 5°C6.59 A
-
Rated current 10°C6.48 A
-
Rated current 15°C6.36 A
-
Rated current at 20°C6.24 A
-
Rated current 25°C6.12 A
-
Rated current 30°C6 A
-
Rated current 35°C5.90 A
-
Rated current at 40°C5.80 A
-
Rated current at 45°C5.70 A
-
Rated current at 50°C5.60 A
-
Rated current 55°C5.49 A
-
Rated current 60°C5.38 A
Architecture
-
CurveB
-
Type of pole1P+N
Installation, mounting
-
Nominal tightening torque top terminal2 - 2 Nm
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque2 - 2 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 230 V
Power
-
Total power loss under IN2.16 W
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 70 °C
Endurance
-
Number of mechanical operations4,000
-
Electric endurance in number of cycles2,000
Capacity
-
Number of modules2
Dimensions
-
Height85 mm
-
Width35.50 mm
-
Depth70 mm
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

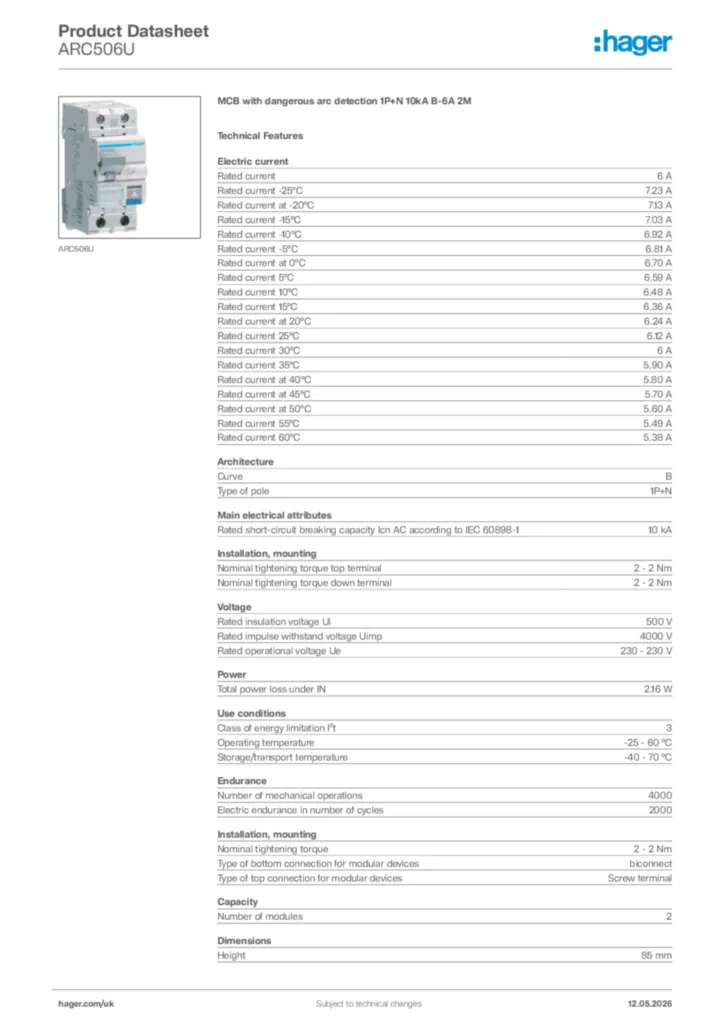

Hager Product data sheet ARC506U
