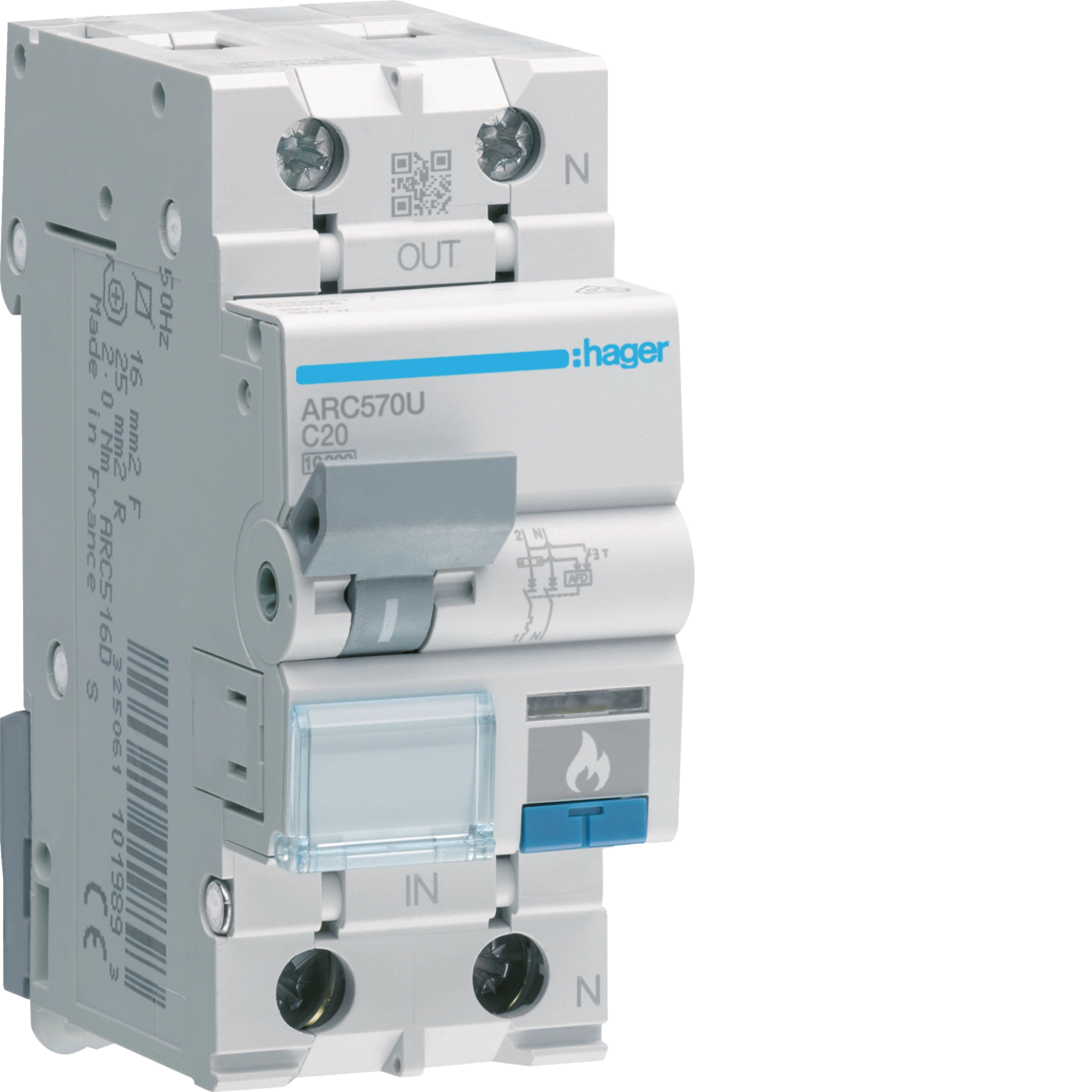

MCB with dangerous arc detection 1P+N 10kA C-20A 2M ARC570U

EAN-Nr.
3250611311850
Packaging
1 piece
Price
£230.45
/ piece *

Complete your system

Optional accessories

  • See more (10)
    • Modular phase busbar 2 products available
    • Mech­anic accessories for low-­voltage compon­ents 1 products available
    • Locking inter­locking func­tions 1 products available
    • Protective cap/strip for phase busbar 1 products available
    • Auxil­i­aries contact block 2 products available
    • Shunt release 2 products available

    Technical characteristics

    Elec­tric current
    • Rated current
      20 A
    • Rated current -25°C
      22.69 A
    • Rated current at -20°C
      22.46 A
    • Rated current -15°C
      22.23 A
    • Rated current -10°C
      21.99 A
    • Rated current -5°C
      21.75 A
    • Rated current at 0°C
      21.51 A
    • Rated current 5°C
      21.27 A
    • Rated current 10°C
      21.02 A
    • Rated current 15°C
      20.77 A
    • Rated current at 20°C
      20.52 A
    • Rated current 25°C
      20.26 A
    • Rated current 30°C
      20 A
    • Rated current 35°C
      19.80 A
    • Rated current at 40°C
      19.60 A
    • Rated current at 45°C
      19.39 A
    • Rated current at 50°C
      19.18 A
    • Rated current 55°C
      18.98 A
    • Rated current 60°C
      18.76 A
    Archi­tec­ture
    • Curve
      C
    • Type of pole
      1P+N
    Install­a­tion, mounting
    • Nominal tight­ening torque top terminal
      2 - 2 Nm
    • Nominal tight­ening torque down terminal
      2 - 2 Nm
    • Nominal tight­ening torque
      2 - 2 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    • Type of top connec­tion for modular devices
      Screw terminal
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      10 kA
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4,000 V
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    Power
    • Total power loss under IN
      5.20 W
    Use condi­tions
    • Class of energy limit­a­tion I²t
      3
    • Oper­ating temper­ature
      -25 - 60 °C
    • Stor­age/trans­port temper­ature
      -40 - 70 °C
    Endur­ance
    • Number of mech­an­ical oper­a­tions
      4,000
    • Elec­tric endur­ance in number of cycles
      2,000
    Capa­city
    • Number of modules
      2
    Dimen­sions
    • Height
      85 mm
    • Width
      35.50 mm
    • Depth
      70 mm
    Frequency
    • Frequency
      50 - 50 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

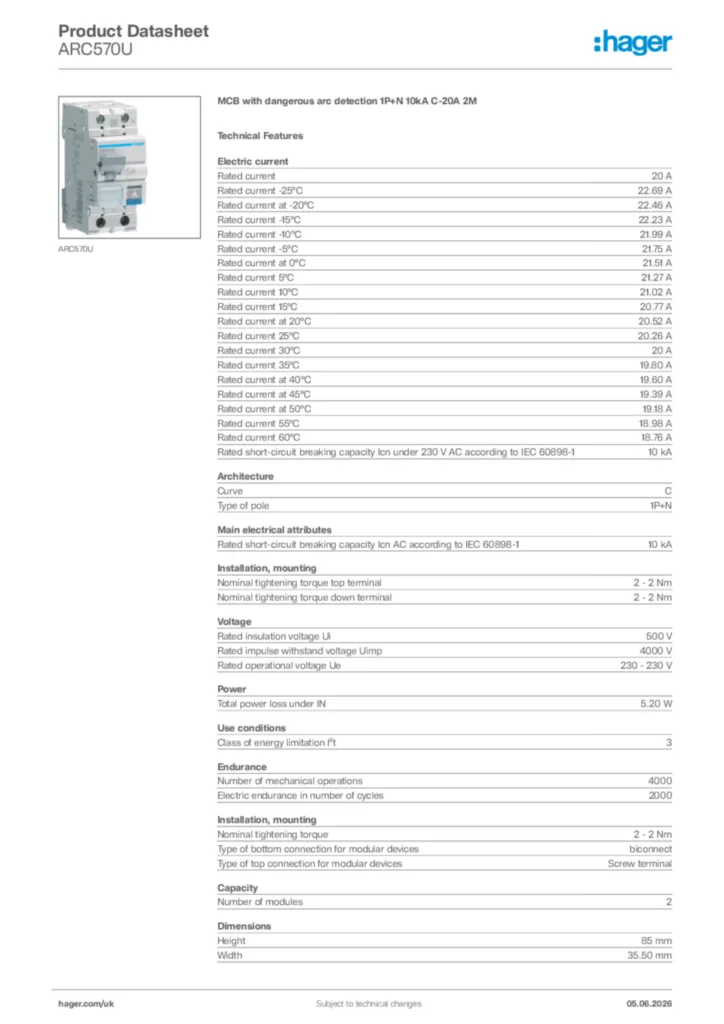

    Hager REACH declaration ARC570U
