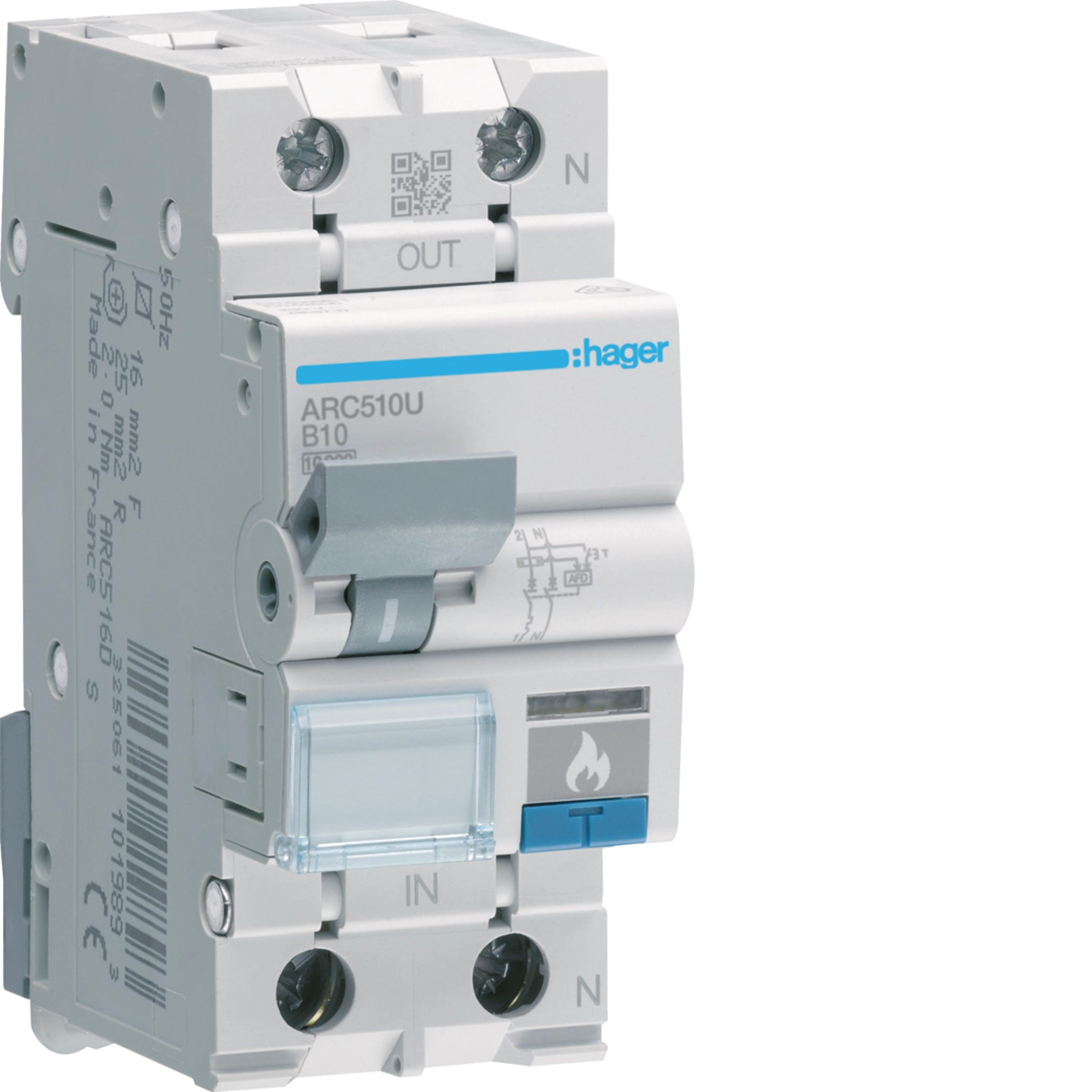

MCB with dangerous arc detection 1P+N 10kA B-10A 2M ARC510U
EAN-Nr.
3250611311744
Packaging
1 piece
Price
£230.45
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Modular phase busbar 2 products available -
Mechanic accessories for low-voltage components 1 products available -
Locking interlocking functions 1 products available -
Protective cap/strip for phase busbar 1 products available -
Auxiliaries contact block 2 products available -
Shunt release 2 products available
Complete your system
-
KDN263B
Insulated busbar 2P 63A fork 10mm² 57M
£61.38 / piece* -
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
£11.86 / piece*
-
LZ060
Heat dissipation insert
£9.96 / piece*
-
MZN176
Locking wire for modular product
£9.24 / piece*
-
KZN024
Endcap for busbar 4P
£14.96 / piece*
-
MZ201
Auxiliary contact 1C+1O 6A 240V AC
£68.07 / piece* -
MZ202Alarm contact 1C+1O 6A 240V AC
£92.10 / piece*
-
MZ203
Shunt trip 230-415V AC 110-130V DC
£68.72 / piece* -
MZ204Shunt trip 24-48V AC 12-48V DC
£68.07 / piece*
-
MZ206Under voltage release 230V AC
£68.72 / piece*
Technical characteristics
Electric current
-
Rated current10 A
-
Rated current -25°C12.02 A
-
Rated current at -20°C11.85 A
-
Rated current -15°C11.68 A
-
Rated current -10°C11.50 A
-
Rated current -5°C11.33 A
-
Rated current at 0°C11.15 A
-
Rated current 5°C10.97 A
-
Rated current 10°C10.78 A
-
Rated current 15°C10.59 A
-
Rated current at 20°C10.40 A
-
Rated current 25°C10.20 A
-
Rated current 30°C10 A
-
Rated current 35°C9.86 A
-
Rated current at 40°C9.71 A
-
Rated current at 45°C9.56 A
-
Rated current at 50°C9.41 A
-
Rated current 55°C9.26 A
-
Rated current 60°C9.10 A
Architecture
-
CurveB
-
Type of pole1P+N
Installation, mounting
-
Nominal tightening torque top terminal2 - 2 Nm
-
Nominal tightening torque down terminal2 - 2 Nm
-
Nominal tightening torque2 - 2 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 230 V
Power
-
Total power loss under IN2.65 W
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 70 °C
Endurance
-
Number of mechanical operations4,000
-
Electric endurance in number of cycles2,000
Capacity
-
Number of modules2
Dimensions
-
Height85 mm
-
Width35.50 mm
-
Depth70 mm
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

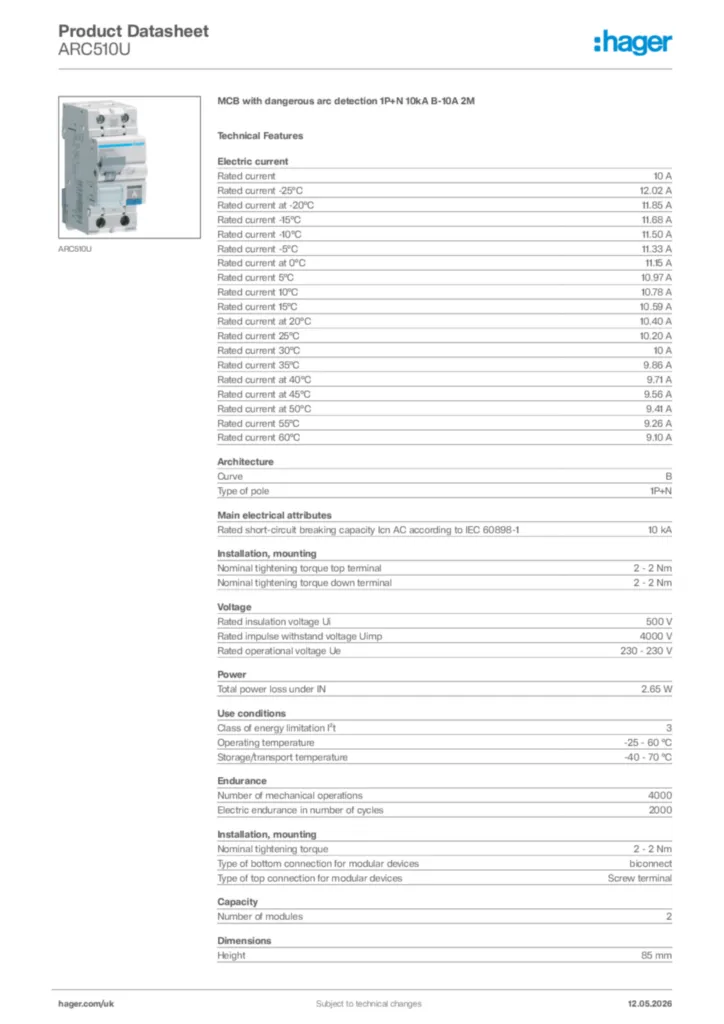

Hager Product data sheet ARC510U
