The Hager cubyko PB 1F composite grey push-button with front plate is a 1-gang momentary rocker for lighting and control circuits. Rated 10A, 250V, 50-60Hz, it suits residential and commercial uses. IP55 and IK05 ensure weather and impact resistance for outdoor or damp areas. Flush or surface mounting with turn screw lock for quick wiring. Matte thermoplastic finish with labelling field for clear identification.
EAN
3250617174251
Packaging
10
Double socket 2P+E 16A for wall duct, click mount, rotated insert, IK07 WNA025
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 6 products available -
Cover frame for domestic switching devices 4 products available -
Illumination insert for domestic switching devices 1 products available
Compatible products
-
Referenced by 23 products available
Complete your system
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
Referenced by
-
WNA681
cubyko Single box empty grey IP55
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementRocker
Materials
-
ColourGrey
-
Surface finishMatt, Satin finish
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height70.90 mm
-
Width70.90 mm
-
Depth41.50 mm
-
Built-in depth flush-mounted boxes40 mm
-
Height of P-touch band for labelling field12 mm
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
Accessories
-
Has labelling fieldYes
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

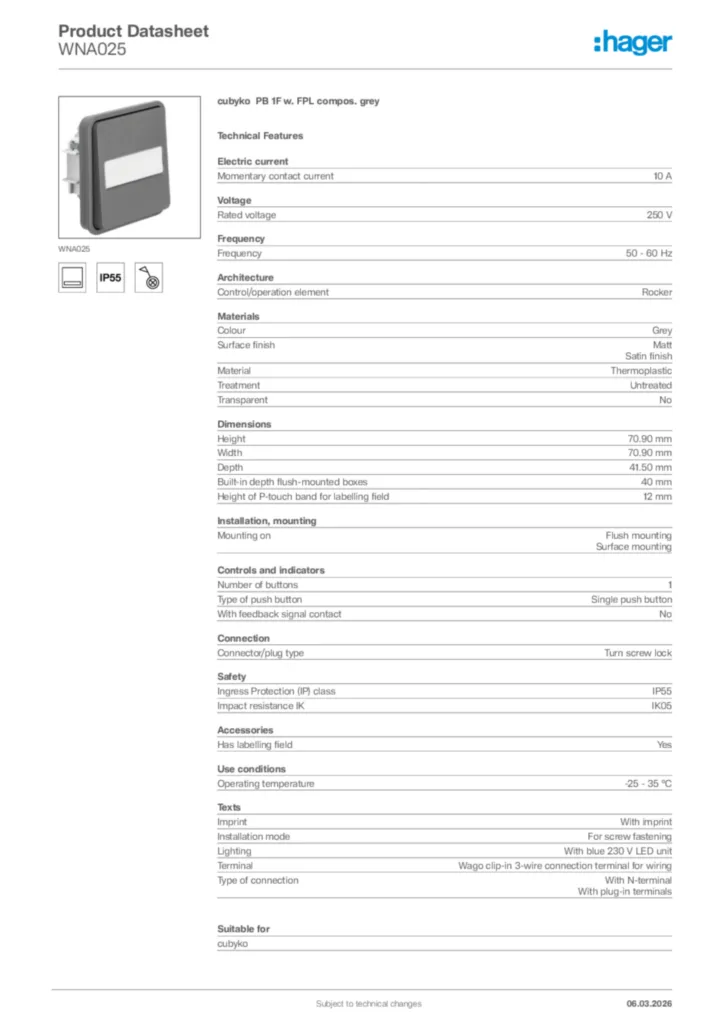

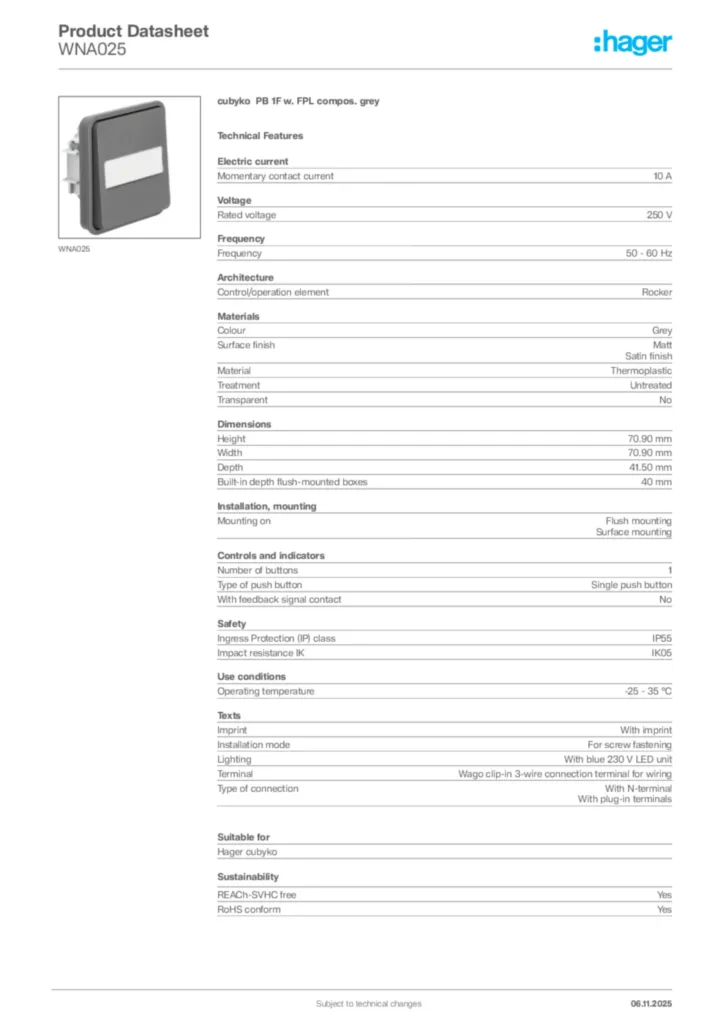

Product datasheet
