Floor standing steel enclosure, Quadro5, 2010x400x400 mm FM119
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for busbars 5 products available -
Document holder 2 products available -
Square cage nut 1 products available -
Hinge for distribution systems 1 products available -
DIN rail 4 products available -
Lock system 2 products available
Complete your system
-
UC825Busbars bearing 4P 630-1600A 1 or 2 bars
-
UC824Busbars support 4P 630-1600A 1 or 2 bars
-
UC823Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC822Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC830Lateral busbar support, quadro.system, 250 A
-
UC820Busbar flat support, quadro.system, 250-630 A 4P
-
UC817Busbar support, quadro.system, 400-1250 A 2x(3P+N)
-
UC843Perforated copper rail, quadro.system, M6 32x5 L1750 mm
-
UT87APerforated copper rail, quadro.system, 25x5 L400 mm
-
UT87GPerforated copper rail, quadro.system, 50x5 L700 mm
-
UT87FPerforated copper rail, quadro.system, 50x5 L400 mm
-
UM92VCopper insulated bar, quadro.system, 40x6 L2000 mm
-
UC833Perforated copper rail, quadro.system, M6 20x5 L1750 mm
-
UM92ZE
Copper insulated bar, quadro.system, 24x5 L2000 mm
-
UM92WE
Copper insulated bar, quadro.system, 24x8 L2000 mm
-
UM92VE
Copper insulated bar, quadro.system, 40x8 L2000 mm
-
UT88BCopper corner connection, quadro.system, 50x5 mm
-
UC832Perforated copper rail, quadro.system, M6 20x5 L1000 mm
-
UC875Cableset connecting kit, quadro.system, HA250 A
-
KS72CCopper rail, univers, 12x5x1000mm, with 56 connection screws 5x8mm
-
UM92X
Copper insulated bar, quadro.system, 20x2 L2000 mm
-
UM92Y
Copper insulated bar, quadro.system, 20x3 L2000 mm
-
UM92Z
Copper insulated bar, quadro.system, 32x4 L2000 mm
-
UT88ACopper corner connection, quadro.system, 25x5 mm
-
UC330H
Operating switch kit, quadro.system, HIB250 350x400 mm
-
UC200MCB kit, quadro.system, 150x350 mm 10 mod
-
UC009Operating switch kit, quadro.system, HA250 A 300x350 mm
-
UC008Operating switch kit, quadro.system, HA125/160 A 300x350 mm
-
UC010HVertical MCCB kit, quadro.system, x160 200x600 mm
-
UC020HVertical MCCB kit, quadro.system, x250 300x350 mm
-
UC030HVertical MCCB kit, quadro.system, x250 350x800 mm
-
UC226Mounting plain front plate, quadro.system, 600x350 mm
-
UC225Mounting plain front plate, quadro.system, 400x350 mm
-
UC224Mounting plain front plate, quadro.system, 300x350 mm
-
UC223Mounting plain front plate, quadro.system, 200x350 mm
-
UC222Mounting plain front plate, quadro.system, 150x350 mm
-
UC221Mounting plain front plate, quadro.system, 50x350 mm
-
UC220Mounting plain front plate, quadro.system, 75x350 mm
-
UC227Mounting plain front plate, quadro.system, 800x350 mm
-
KZ075Connecting cable, 500mm, black, 10mm², with plug, for Distribution bar 250Ae
-
KZ074Connecting cable, 500mm, blue, 10mm², with plug, for Distribution bar 250Ae
-
KZ052Connecting cable, 500mm, black, 6mm², with plug, for Distribution bar 250A
-
KZ051Connecting cable, 500mm, blue, 6mm², with plug, for distribution bar 250A
-
KZ007Crimp connector 4²-10mm², for distribution bar 250A
-
KZ005Connecting cable, 120mm, black, 10mm², with plug, for distribution bar 250A
-
KZ004Connecting cable, 120mm, blue, 10mm², with plug, for distribution bar 250A
-
KZ002Connecting cable, 120mm, black, 6mm², with plug, for distribution bar 250A
-
KZ001Connecting cable, 120mm, blue, 6mm², with plug, for distribution bar 250A
Technical properties
Dimensions
-
Height2010 mm
-
Width400 mm
-
Depth400 mm
-
Thickness of sidewall1.20 mm
Safety
-
Ingress Protection (IP) classIP55
-
Protection classIsolation class I
-
Locking typeWithout lock
-
Impact resistance IKIK10
Equipment
-
Number of section in width1
-
Number of flange plate openings2
-
Number of rows13
Installation, mounting
-
Mounting onFloor mounting
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentGalvanised
-
MaterialSteel
Cover, door
-
Number of cabinet doors0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Electric current
-
Rated current630 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

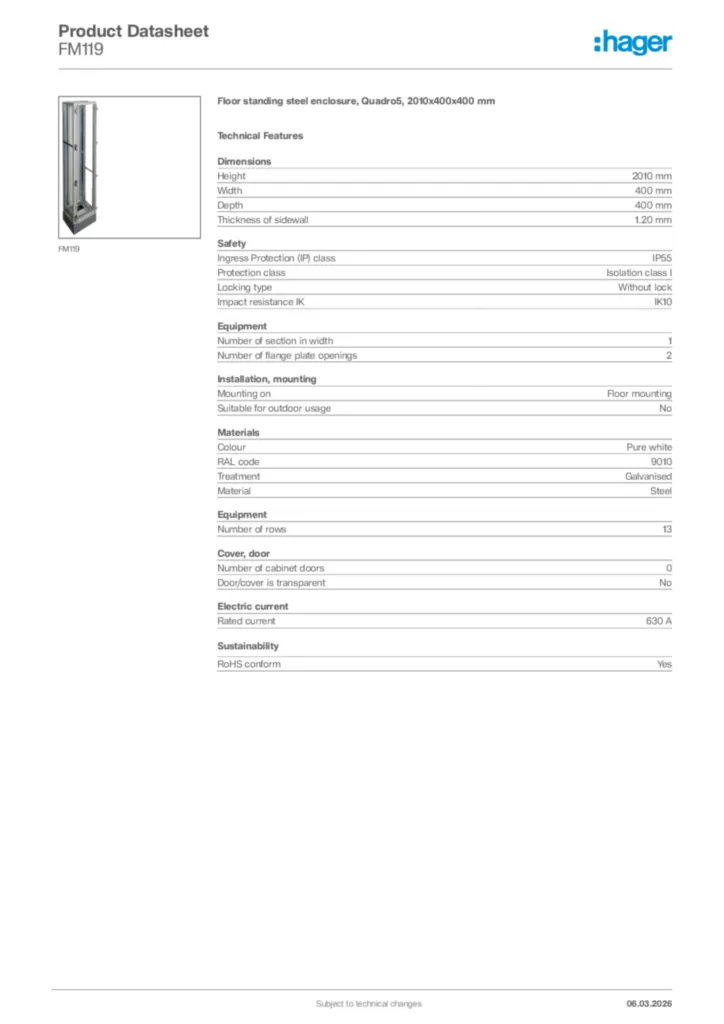

Product datasheet
