Cartridge 1P T2 N-PE SPB420 SPB020N
EAN-Nr.
3250615515285
Packaging
1 piece
Price
£68.63
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical characteristics
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1264 V
-
Voltage protection level Up according to IEC 61643-11.50 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.50 kV
-
Voltage level Up L-N/PEN IEC 61643-111,500 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height44.8 mm
-
Width11.7 mm
-
Depth56.1 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 35.0 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Downloads
-
Product image
-
Product datasheet

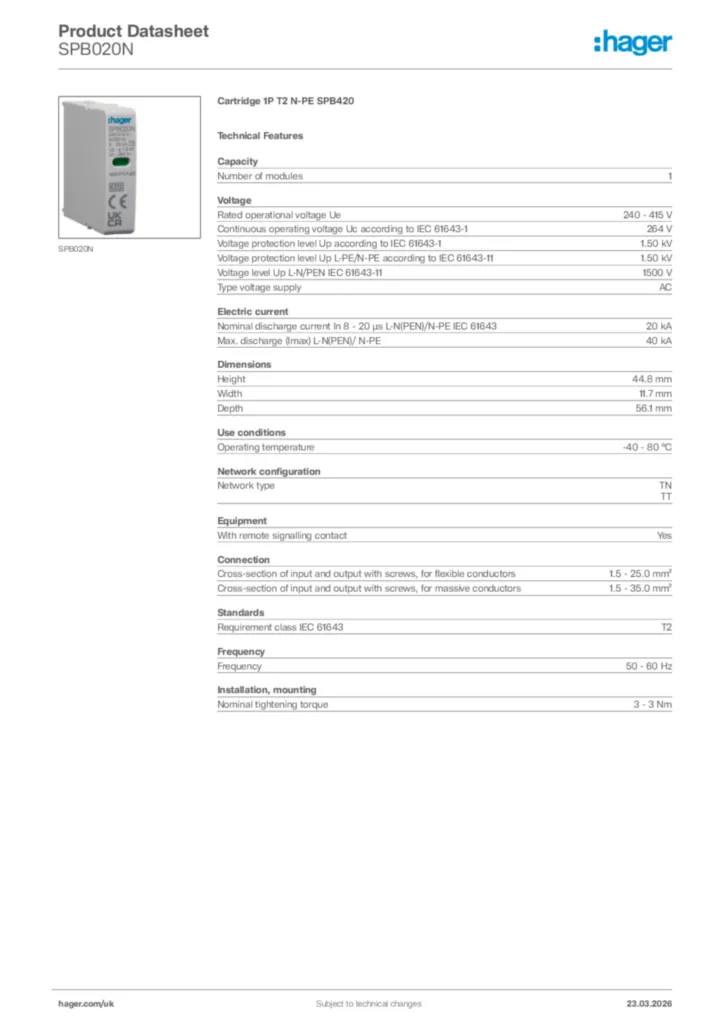

Hager Product data sheet SPB020N
Cartridge 1P T2 N-PE SPB420
PDF
