Cartridge T2 L-N Uc 275V Imax 40kA Up 1.35kV

SPB015

  • Circuit Protec­tion & Modular Switches

Cartridge T2 L-N Uc 275V Imax 40kA Up 1.35kV SPB015

EAN-Nr.
3250615514851
Packaging
1 piece
Price
£107.74
/ piece *
£107.74
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

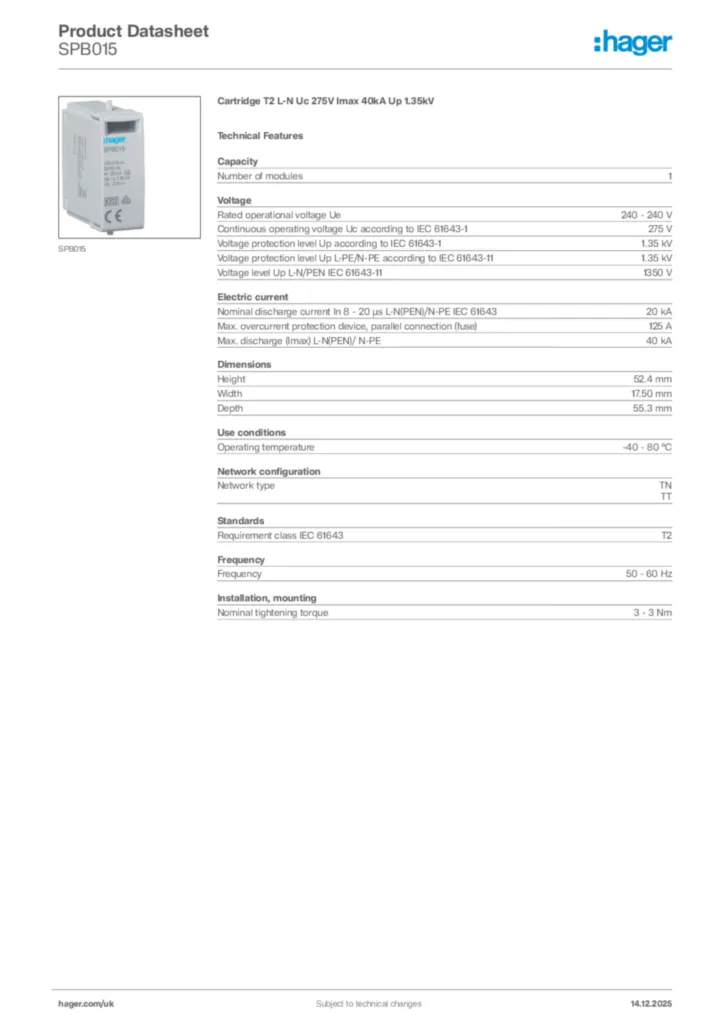

Download the sheet

Technical characteristics

Capa­city
  • Number of modules
    1
Voltage
  • Rated oper­a­tional voltage Ue
    240 - 240 V
  • Continuous oper­ating voltage Uc according to IEC 61643-1
    275 V
  • Voltage protec­tion level Up according to IEC 61643-1
    1.35 kV
  • Voltage protec­tion level Up L-PE/N-PE according to IEC 61643-11
    1.35 kV
  • Voltage level Up L-N/PEN IEC 61643-11
    1,350 V
Elec­tric current
  • Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643
    20 kA
  • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
    125 A
  • Max. discharge (Imax) L-N(PEN)/ N-PE
    40 kA
Dimen­sions
  • Height
    52.4 mm
  • Width
    17.50 mm
  • Depth
    55.3 mm
Use condi­tions
  • Oper­ating temper­ature
    -40 - 80 °C
Network config­ur­a­tion
  • Network type
    TN, TT
Stand­ards
  • Require­ment class IEC 61643
    T2
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    3 - 3 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

Certifications and documents

PEP_HAGER_HAGE_00444_V01.01_EN_27082021.PDF
PDF
231,28 kB
REACH declaration SPB015 (english)
PDF
103,10 kB
RoHS declaration SPB015 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SPB015 | Hager

    Product Image SPB015

  • Declaration of conformity

    Image CE_22.3494.10.22_universZ_U84... | Hager

    CE_22.3494.10.22_universZ_U84...

    Declaration of conformity International 2022-12-16

    PDF
    390,47 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-05-31

    PDF
    861,42 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-12-16

    PDF
    299,57 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-05-31

    PDF
    918,90 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    375,42 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    381,49 kB
