Cartridge N-PE Uc 350V Iimp 100kA Up 1.5kV SPA001N
EAN-Nr.
3250615514813
Packaging
1 piece
Price
£387.71
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 3 products available
Referenced by
-
SPA180Combined SPD T1+T2 1P Iimp 25kA Up 1.5kV with remote contact integrated fuse
£662.49 / piece* -
SPA180NCombined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse
£232.22 / piece* -
SPA801Combined SPD T1+T2 4P Uc 350V Iimp 25kA Up 1.5kV TNS/TT with remote contact
£1,166.53 / piece*
Technical characteristics
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE100 kA
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE100 kA
Network configuration
-
Network typeTN, TT
Connectivity
-
Type of connectionPlug-in connection
Equipment
-
With remote signalling contactNo
Capacity
-
Number of modules2
Voltage
-
Voltage protection level Up according to IEC 61643-11.50 kV
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Rated operational voltage Ue240 - 240 V
Architecture
-
Number of poles1
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height46.40 mm
-
Width35.50 mm
-
Depth59.4 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

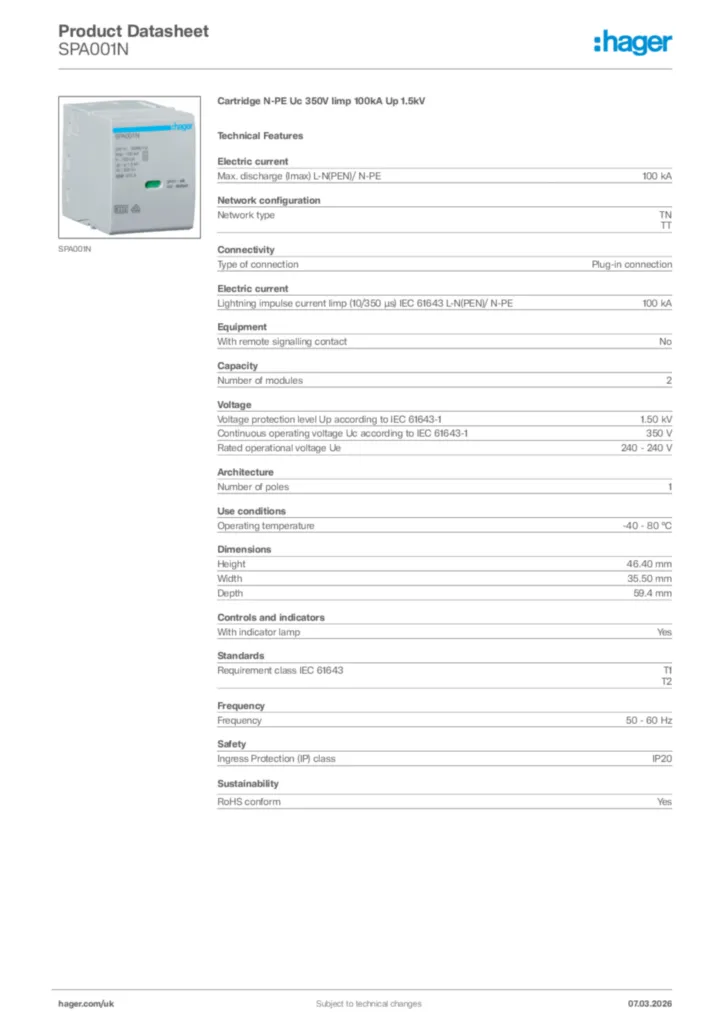

Hager Product data sheet SPA001N
Cartridge N-PE Uc 350V Iimp 100kA Up 1.5kV
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25
PDF793,66 kB
