NBN163A

MCB 1P 10kA/15kA B-63A 1M
EAN
3250614618109
Quantity
1
Trade price*
£19.25 /prt.*
  • Architecture
    • Neutral position
      without neutral
    • Number of poles
      1 P
    • Type of pole
      1 P
    • Fixing mode
      Din-Rail
    • Curve
      B
  • Main electrical features
    • Rated operational voltage Ue
      230 V
      400 V
    • Rated current
      63 A
    • Type of supply voltage
      AC
  • Voltage
    • Rated insulation voltage
      500 V
    • Rated impulse withstand voltage
      6000 V
  • Electric current
    • Rated service breaking capacity Ics AC according IEC 60898-1
      7.5 kA
  • Electric current / temperature
    • Rating current 30°C
      63 A
  • Dimensions
    • Depth of installed product
      70 mm
    • Height of installed product
      83 mm
    • Width of installed product
      17.5 mm
  • Power
    • Total power loss under IN
      5.73 W
  • Endurance
    • Electric endurance in number of cycles
      4000
    • Number of mechanical operations
      20000
  • Capacity
    • Number of modules
      1
  • Installation, mounting
    • Tightening torque
      2,8Nm
  • Equipment
    • Can be accessorized
      Yes
  • Standards
    • Standard text
      EN 60898-1
      IEC 60947-2
    • European directive WEEE
      concerned
  • Safety
    • Protection index IP
      IP20
Documentations
Product environmental profile for NBN163A 432 KBpdfDownload

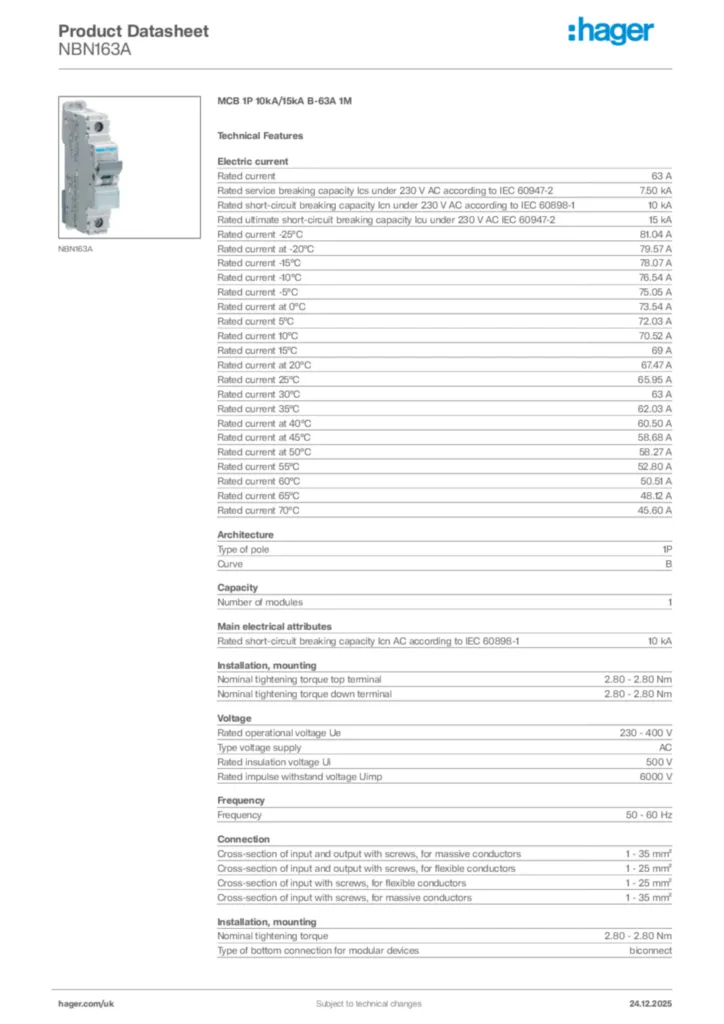

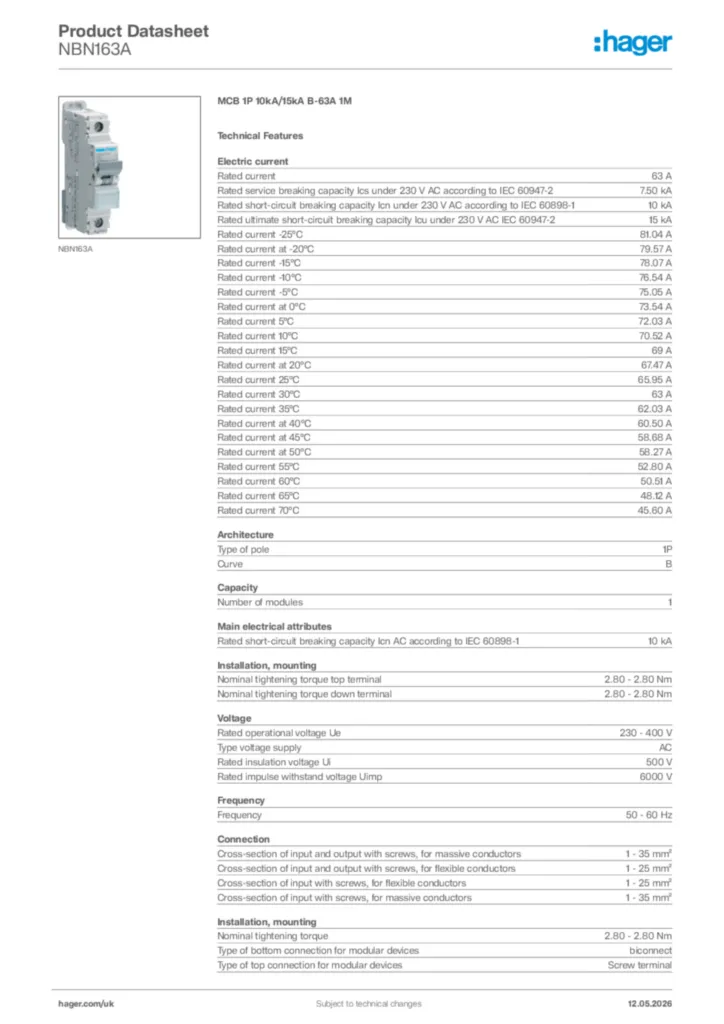

Product data sheets for NBN163A 204 KBpdfDownload
Commercial Distribution Catalogue 13753 kbpdfDownload
