MCB 1P 10kA/15kA B-16A 1M NBN116A

EAN-Nr.
3250614618048
Packaging
12 PCEs
Price
£23.35
/ piece *

Technical characteristics

Architecture
  • Neutral position
    without neutral
  • Number of poles
    1 P
  • Type of pole
    1 P
  • Curve
    B
Main electrical features
  • Rated operational voltage Ue
    230 / 400 V
  • Type of supply voltage
    AC
Voltage
  • Rated insulation voltage
    500 V
  • Rated impulse withstand voltage
    6000 V
Electric current
  • Rated service breaking capacity Ics AC according IEC 60898-1
    7.5 kA
  • Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
    10 kA
Electric current / temperature
  • Rating current 30°C
    16 A
Dimensions
  • Depth of installed product
    70 mm
  • Height of installed product
    83 mm
  • Width of installed product
    17.5 mm
Power
  • Total power loss under IN
    2.62 W
Endurance
  • Electric endurance in number of cycles
    4000
  • Number of mechanical operations
    20000
Installation, mounting
  • Tightening torque
    2,8Nm
Equipment
  • Can be accessorized
    Yes
Standards
  • Standard text
    EN 60898-1
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
Use conditions
  • Operating temperature
    -25…70 °C

Downloads

  • Product image

    Image NBN116A  | Hager

    Product Image NBN116A

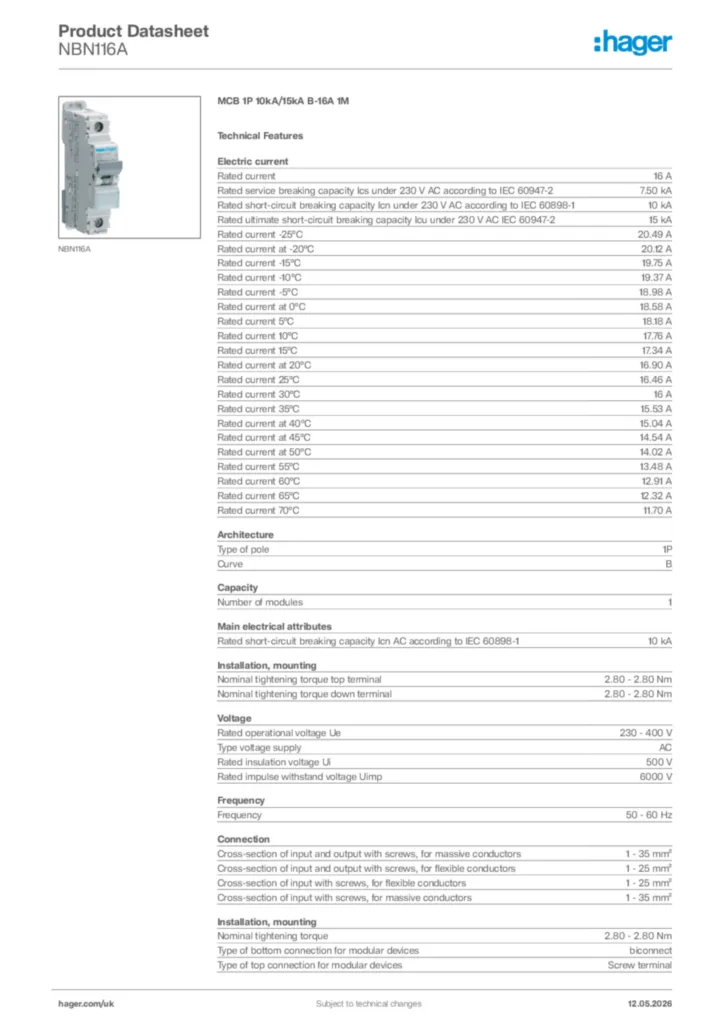

  • Product datasheet

    Image Product data sheets for NBN116A  | Hager

    Product data sheets for NBN116A

    UK_PD_TDS_TransformerMotorprotection.pdf

    PDF
    204 KB
  • Product declaration

    Image EU Declaration of conformity for NBN116A  | Hager

    EU Declaration of conformity for NBN116A

    Declaration

    PDF
    710 KB
  • Product environment profile

    Image Product environmental profile for NBN116A  | Hager

    Product environmental profile for NBN116A

    PDF
    432 KB
  • Product ROHS

    Image RoHS certificate for NBN116A  | Hager

    RoHS certificate for NBN116A

    PDF
    33 KB
    Image RoHS certificate for NBN116A  | Hager

    RoHS certificate for NBN116A

    PDF
    32 KB
