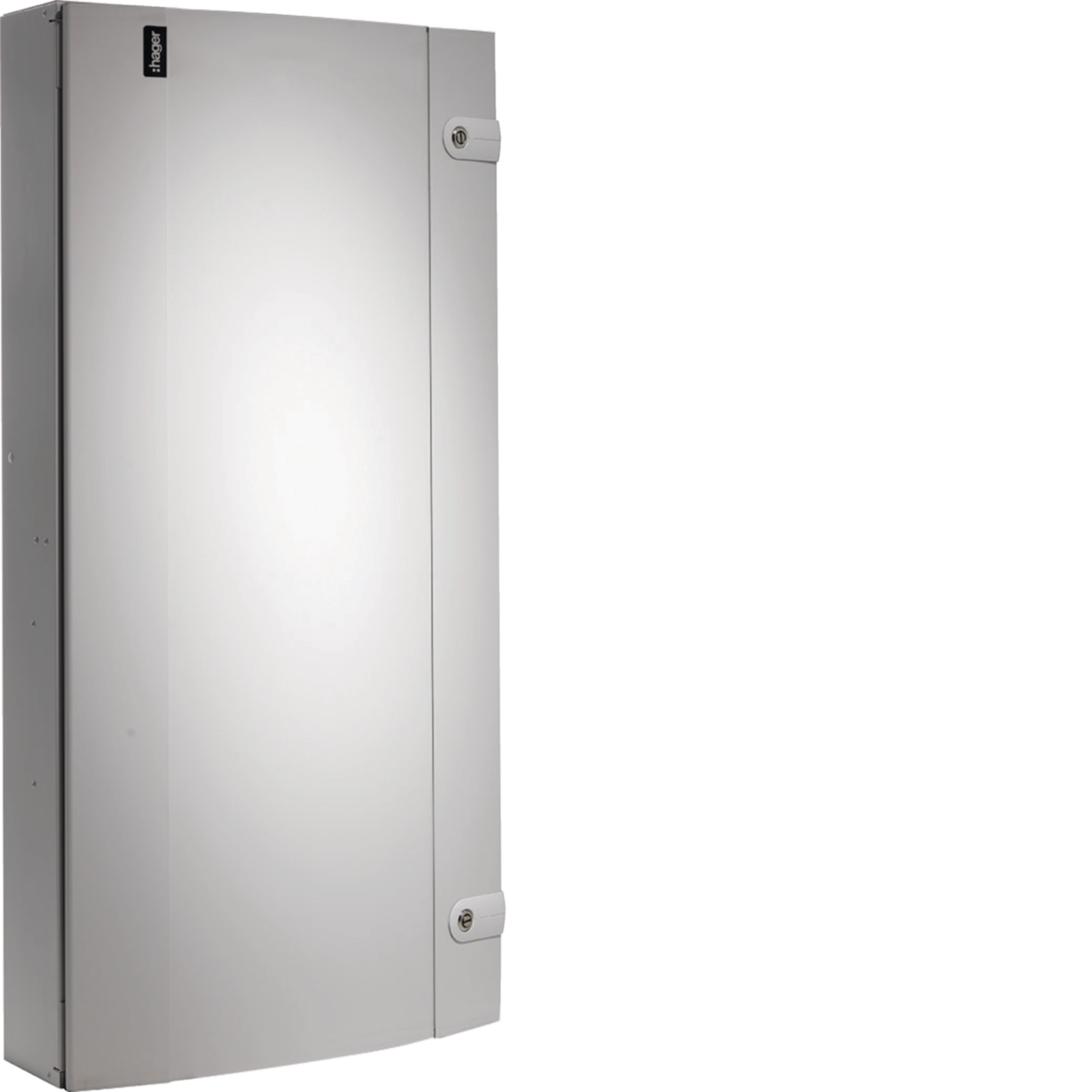

250A 2+10 Way Hybrid TPN Board With Plain Door JK20210B
Price
£616.70
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Insert for lock system 1 product.page.accessories.products-available -
Small equipped distribution board 9 product.page.accessories.products-available -
Gland plate for enclosure 3 product.page.accessories.products-available -
Distributor assembly with main switch 1 product.page.accessories.products-available -
Transition cover section for installation duct 2 product.page.accessories.products-available -
Cable entry cabinet 6 product.page.accessories.products-available
product.page.accessories.title-modal
-
JK222PK
JK1/JK2 Door Lock Kit
£26.67 / piece*
-
JK22504M
250A 4 Pole JK2 MCCB Incomer Kit
£1,204.02 / piece* -
JK22504D250A 4 Pole JK2 Direct Incomer Kit
£92.27 / piece* -
JK22503S250A 3 Pole JK2 Switch Incomer Kit
£602.80 / piece* -
JK22503M250A 3 Pole JK2 MCCB Incomer Kit
£896.04 / piece* -
JK21003S100A 3 Pole JK2 Switch Incomer Kit
£98.23 / piece* -
JK21004S
100A 4 Pole JK2 Switch Incomer Kit
£142.07 / piece* -
JK21254M125A 4 Pole JK2 MCCB Incomer Kit
£632.29 / piece* -
JK21604C160A 4 Pole Contactor Incomer Kit
£2,254.64 / piece* -
JK22504MCS250A 4 Pole JK2 Switch Incomer Kit
£958.95 / piece*
-
JN2PLATE
JN Endplate
£73.16 / piece* -
JK2PLATEMSpare Gland Plate 1.2mm
£64.51 / piece* -
JK2PLATEBSpare Brass gland Plate 2mm
£97.60 / piece*
-
JK21253M
125A 3 Pole JK2 MCCB Incomer Kit
£570.31 / piece*
-
JK06TK
Trunking Kit for TPN 6"
£171.66 / piece* -
JK04TKTrunking Kit for TPN 4"
£120.81 / piece*
-
JN206BE
Large Extension Box, No Door
£418.23 / piece* -
JN205BE
Small Extension Box, No Door
£278.95 / piece* -
JN203BEGLarge DIN Rail Box Glazed
£459.95 / piece* -
JN203BELarge DIN Rail Box Plain
£432.53 / piece* -
JN201BEGSmall DIN Rail Box Glazed
£314.67 / piece* -
JN201BESmall DIN Rail Box Plain
£312.83 / piece*
-
JKLABELPACKSpare Label Pack - All Sizes (One Pack)
£12.83 / piece*
-
JK030BEB
Earth Bar Hi Int, 2 x 15 Connections
£94.46 / piece*
-
JN212BPA
250A 12 Way Pan Assembly
£1,398.44 / piece*
-
JK01DC
JK Door Document Clip (Pack of 10)
£22.07 / piece*
-
JK222AKEYLOCK
£38.73 / piece*
-
JF250NDL250A Neutral Disconnection Link With Shroud 35mm Pitch
£210.25 / piece*
-
JK100HKJK1 Horizontal Mechanical Connecting Kit
£58.84 / piece*
-
JK02B
1.5 Module Busbar Blank pack qty 3
£8.87 / piece* -
JK1/2TOPSHROUDJK Busbar Stack Top Shroud
£26.15 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN250 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules30
Dimensions
-
Height1,250 mm
-
Width465 mm
-
Depth165.50 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Quarter turn lock
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

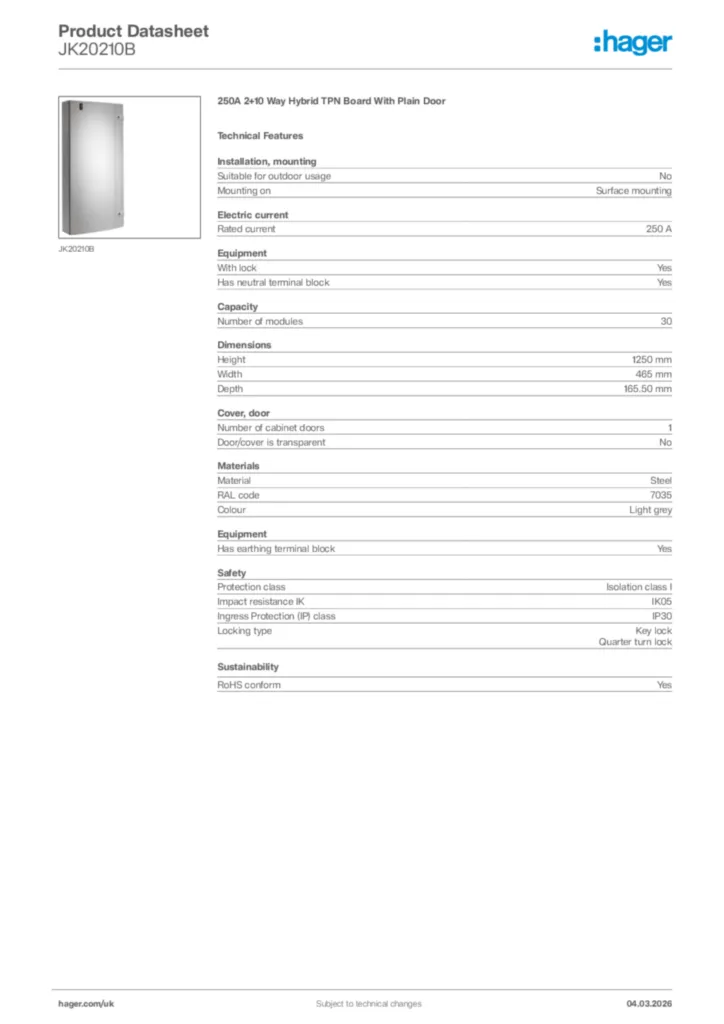

Hager Product data sheet JK20210B
250A 2+10 Way Hybrid TPN Board With Plain Door
PDF -
ProductInstallationManual
Installation manual en-GB 2018-01-18
PDF1,13 MB -
ProductBimModels
Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-GB-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025
RFA1,36 MB
Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-GB-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025
RFA1,34 MB
Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,09 MB
Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,08 MB
Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,08 MB
Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,07 MB -
ProductDataSheet
UK_COMMERCIAL_TDS_HYBRIDBOARD.PDF
Product data sheet en-GB 2017-10-05
PDF248,73 kB -
ProductECDeclaration
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration
Declaration of conformity International 2021-07-12
PDF180,39 kB
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration of conformity International 2023-12-20
PDF278,56 kB
Declaration of conformity International 2023-12-20
PDF288,18 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB

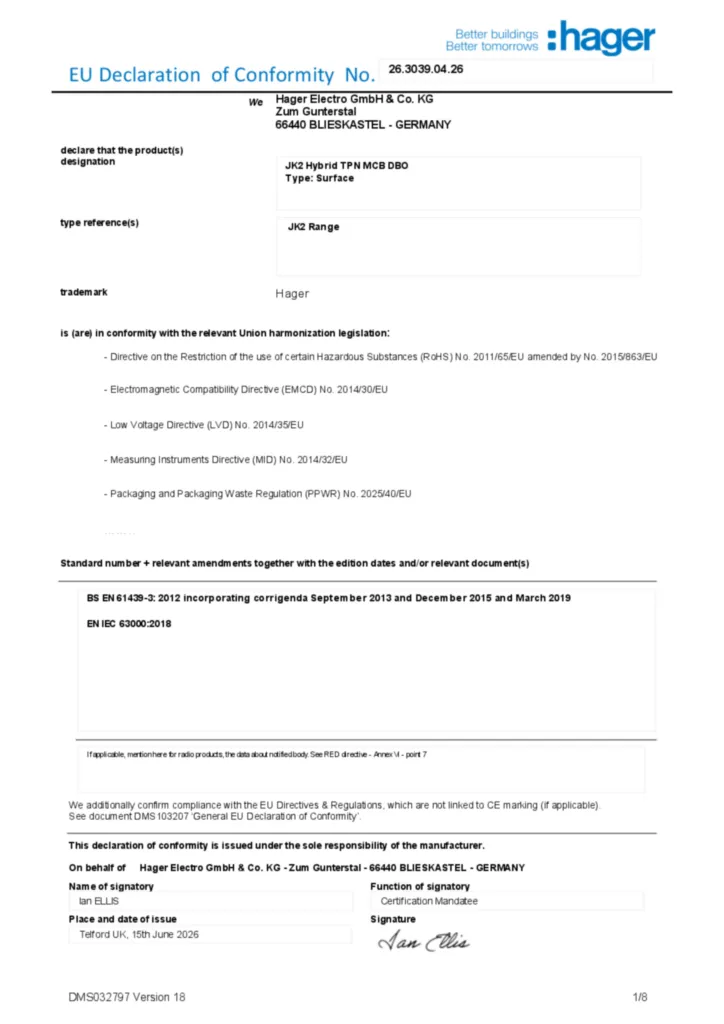

Declaration of conformity en-GB 2026-07-22
PDF473,26 kB
Declaration of conformity en-GB 2026-07-22
PDF441,07 kB
