125A 24 Way TPN Board Plain Door Amendment 3 JK124BA3

EAN-Nr.
3250613412760
Packaging
1 piece
Price
£754.85
/ piece *
£754.85
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

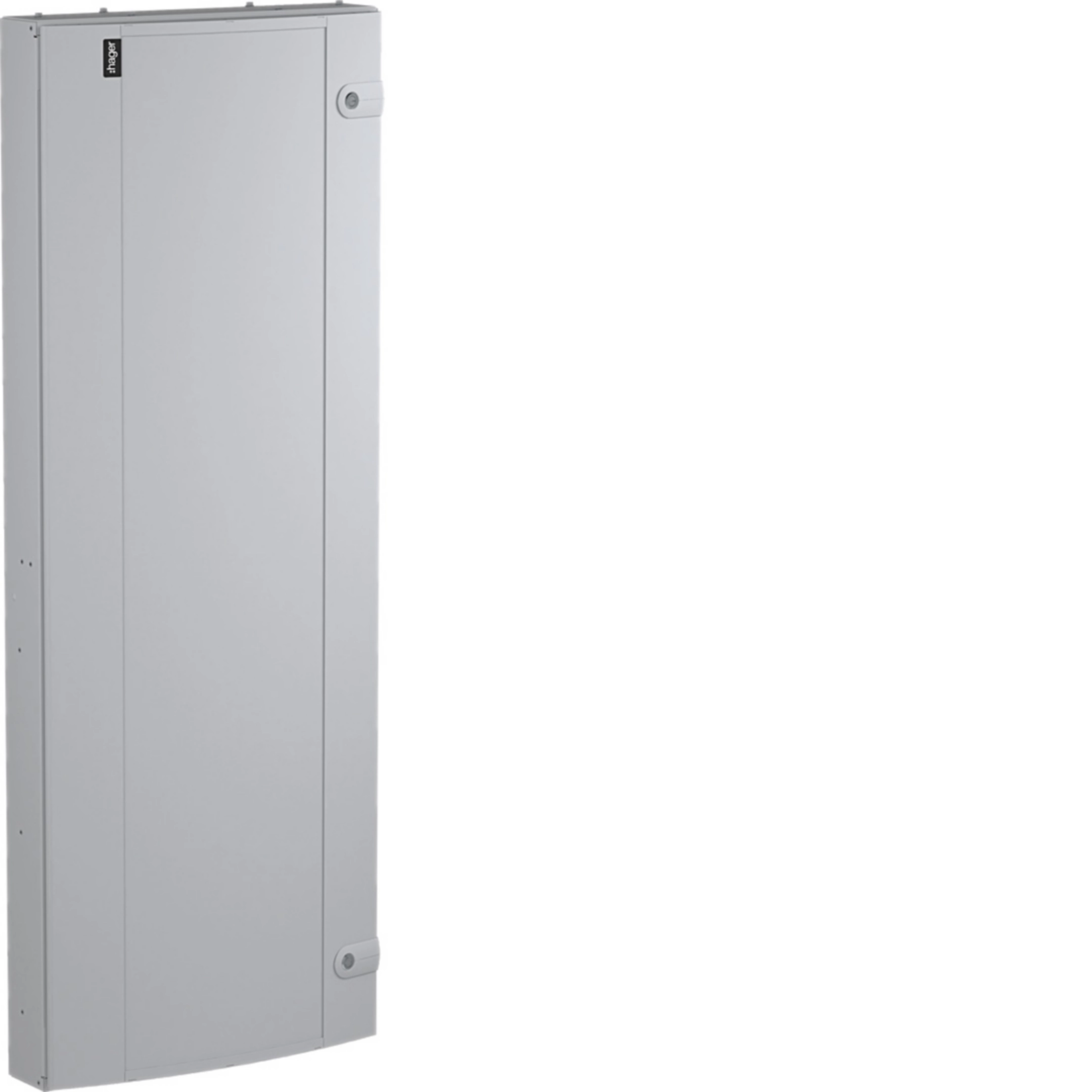

125A 24 Way TPN Board Plain Door Amendment 3

JK124BA3

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Power phase busbar 1 products available
  • Distrib­utor assembly for device surface mounting 1 products available
  • Small distri­bu­tion board 1 products available
  • Kilo­wat­t-hour meter 1 products available
  • Small equipped distri­bu­tion board 5 products available
  • Door/­op­er­ating panel 1 products available

Complete your system

  • Power phase busbar
  • Distrib­utor assembly for device surface mounting
  • Small distri­bu­tion board
  • Kilo­wat­t-hour meter
  • Small equipped distri­bu­tion board
  • Door/­op­er­ating panel
  • JK125BSP

    125A Single Phasing Kit
    £39.20  / piece*
  • JK11254D

    125A Direct Connect Incomer Kit
    £97.37  / piece*
  • JK116EG

    JK1 16 Module DIN Rail Box Glazed
    £201.24  / piece*
  • JKD1125MID

    125A Pulsed & ModBus Meter MID Extension Box
    £938.93  / piece*
  • JK1100ATS

    100A Enclosed Automatic Transfer Switch
    £5,706.38  / piece*
  • JK1125ATS

    125A Enclosed Automatic Transfer Switch
    £6,340.42  / piece*
  • JK140ATS

    40A Enclosed Automatic Transfer Switch
    £4,913.83  / piece*
  • JKD125MID

    125A Dual Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side.
    £2,688.94  / piece*
  • JKD125TMID

    125A Triple Multi Function MID Metered Incomer. Pulsed and Modbus. Side by Side
    £3,217.64  / piece*
  • JK124BA3-DK

    125A 24 Way TPN Plain Spare Door Kit Amendment 3
    £316.02  / piece*

Technical characteristics

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    125 A
Equip­ment
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,250 mm
  • Width
    465 mm
  • Depth
    132.50 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Key lock, Quarter turn lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration JK124BA3
PDF
Hager RoHS report JK124BA3
PDF

Downloads

  • Product image

    Image JK124BA3 | Hager

    Product Image JK124BA3

  • Product datasheet

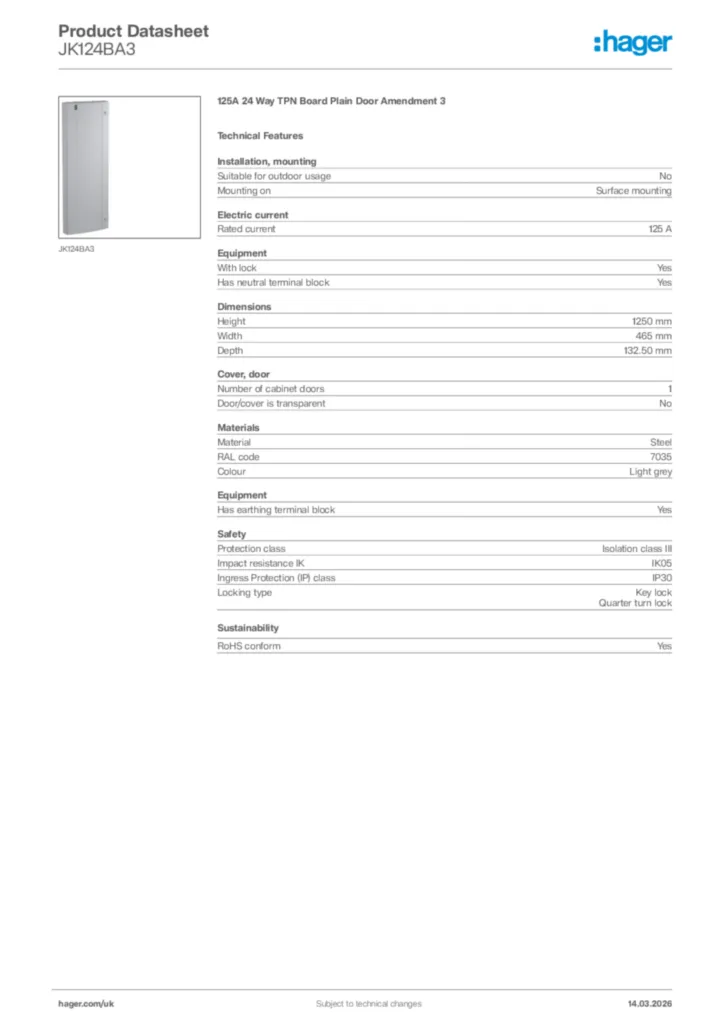

    Image Hager Product data sheet JK124BA3 | Hager

    Hager Product data sheet JK124BA3

    125A 24 Way TPN Board Plain Door Amendment 3

    PDF

  • BIM Revit objects

    Image Range : Type B TP&N Distribution Boards. Switchboard IP3X. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Type B TP&N Distribution Boards. Switchboard IP3X. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,18 MB
    Image Range : Type B TP&N Distribution Boards. Switchboard IP3X. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Type B TP&N Distribution Boards. Switchboard IP3X. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,17 MB
    Image Range Typ.B TP&N Invicta 3 (125A) -Revit Family 2020 hosted-V2021 | Hager

    Range Typ.B TP&N Invicta 3 (125A) -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,18 MB
    Image Range Typ.B TP&N Invicta 3 (125A) -Revit Family 2020 no hosted-V2021 | Hager

    Range Typ.B TP&N Invicta 3 (125A) -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,16 MB

  • Product data sheet

    Image UK_Invicta_TPN_125ADistributionBoard.pdf | Hager

    UK_Invicta_TPN_125ADistributionBoard.pdf

    Product data sheet en-GB 2018-02-05

    PDF
    307,29 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-09-29

    PDF
    276,98 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-09-29

    PDF
    269,32 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    302,50 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    296,11 kB
