JK1 16 Module DIN Rail Box Glazed JK116EG
EAN-Nr.
5015652252689
Packaging
1 piece
Price
£201.24
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 33 products available
Referenced by
-
JK112BG125A 12 Way TPN Board Glazed Door
£389.12 / piece* -
JK106BDFGJK106 32 Module Side DIN Box Glazed
£306.46 / piece* -
JK106BG125A 6 Way TPN Board Glazed Door
£289.72 / piece* -
JK108B125A 8 Way TPN Board Plain Door
£316.32 / piece* -
JK124BG125A 24 Way TPN Board Glazed Door
£753.14 / piece* -
JK108BDFG
JK108 48 Module Side DIN Box Glazed
£329.87 / piece* -
JK108BG125A 8 Way TPN Board Glazed Door
£326.04 / piece* -
JK112B
125A 12 Way TPN Board Plain Door
£379.86 / piece* -
JK106B
125A 6 Way TPN Board Plain Door
£280.46 / piece* -
JK112BDFG
JK112 64 Module Side DIN Rail Box Glazed
£388.53 / piece* -
JK116B125A 16 Way TPN Board Plain door
£534.13 / piece* -
JK104BG125A 4 Way TPN Board Glazed Door
£260.56 / piece* -
JK116BDFG
JK116 80 Module Side DIN Box Glazed
£439.59 / piece* -
JK116BG125A 16 Way TPN Board Glazed Door
£542.34 / piece* -
JK118B
125A 18 Way TPN Board Plain Door
£569.58 / piece* -
JK104BDFG
JK104 32 Module Side DIN box Glazed
£280.74 / piece* -
JK118BG125A 18 Way TPN Board Glazed Door
£601.52 / piece* -
JK124B125A 24 Way TPN Board Plain Door
£688.27 / piece* -
JK104B125A 4 Way TPN Board Plain Door
£249.52 / piece* -
JK104BGSPD125A 4 Way TPN Board with 4 pole SD & Type II SPD Glazed
£984.95 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current125 A
Equipment
-
Number of rows1
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules16
Dimensions
-
Height300 mm
-
Width465 mm
-
Depth165.50 mm
-
Number of width units16
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Quarter turn lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

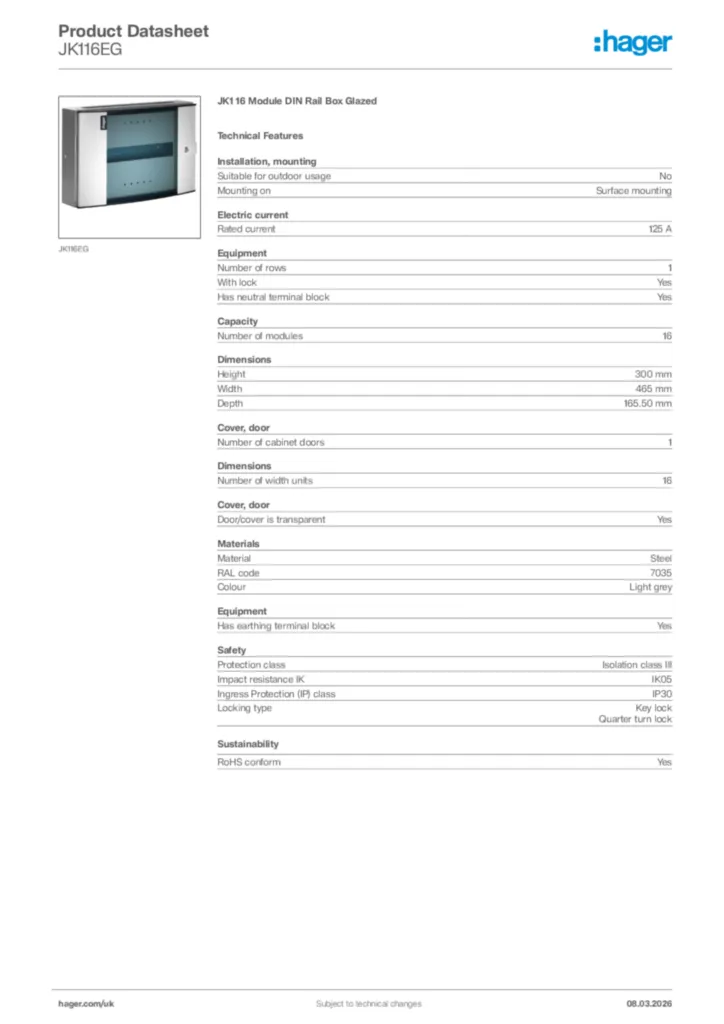

Hager Product data sheet JK116EG
JK1 16 Module DIN Rail Box Glazed
PDF -
BIM Revit objects
Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,61 MB
Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,22 MB
Range Typ.B TP&N DIN Extension Boxes 125A -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,23 MB
Range Typ.B TP&N DIN Extension Boxes 125A -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,21 MB -
Product data sheet
UK_CD_TDS_DINEXTCABLESPREADER.pdf
Technical data sheet including dimensions for DIN extension and cable spreader boxes.
PDF77,62 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
