125A 4 Way IP65 GRP TPN Board Plain Door JK104BF
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
-
Fixing modesurface-mounting
-
Depth of installed product300 mm
-
Height of installed product800 mm
-
Width of installed product600 mm
-
Type of door closingQuarter turn lock
-
Door lockingwith key
-
ColourRAL 7035
-
RAL colourRAL 7035 - Light grey
-
Materialplastic
-
European directive WEEEconcerned
-
Protection classProtection class III
Downloads
-
Product image
-
Instruction manual
Instruction manuals for JK104BF
UK_HAGER_INS_IPRATINGS.pdf
PDF356 KB -
Installation handbook
Installation handbooks for JK104BF
JK1**BF/BD
PDF1 MB -
Catalogue
Commercial Distribution Catalogue
PDF14 MB -
BIM Revit objects
BIM models for JK104BF
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK104BF
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for JK104BF
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 no hosted-V2021
RFA1 MBBIM models for JK104BF
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 hosted-V2021
RFA1 MBBIM models for JK104BF
UK_INVICTA_BIM_TPN125A
ZIP1 MB -

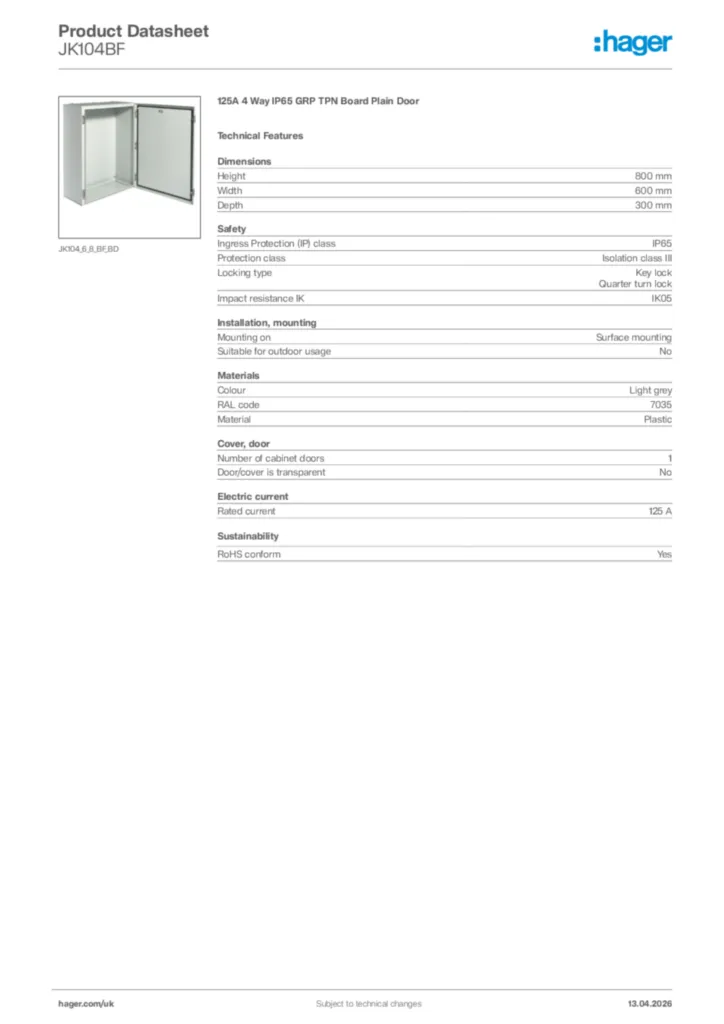

Product data sheet
Product data sheets for JK104BF
PDF1 MB -
Declaration of conformity
EU Declaration of conformity for JK104BF
Declaration
PDF158 KBEU Declaration of conformity for JK104BF
Declaration
PDF152 KBEU Declaration of conformity for JK104BF
PDF163 KBEU Declaration of conformity for JK104BF
PDF158 KB -
RoHS report
Pollutant guidelines for JK104BF
REACH-declaration 2023-10-20 (english)
PDF33 KB
