125A Pulsed & ModBus Meter MID Extension Box

JKD1125MID

  • Commer­cial & Resid­en­tial Distri­bu­tion Boards

125A Pulsed & ModBus Meter MID Extension Box JKD1125MID

EAN-Nr.
5015652607304
Packaging
1 piece
Price
£938.93
/ piece *
£938.93
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

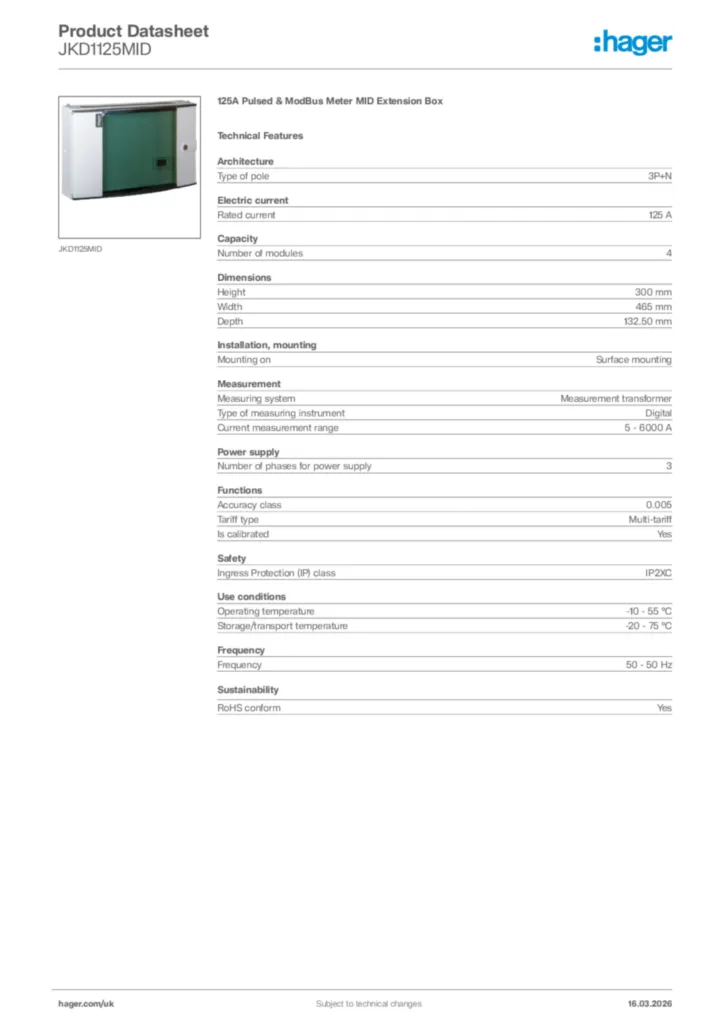

Download the sheet

Technical characteristics

Archi­tec­ture
  • Type of pole
    3P+N
Elec­tric current
  • Rated current
    125 A
Capa­city
  • Number of modules
    4
Dimen­sions
  • Height
    300 mm
  • Width
    465 mm
  • Depth
    132.50 mm
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Meas­ure­ment
  • Meas­uring system
    Meas­ure­ment trans­former
  • Type of meas­uring instru­ment
    Digital
  • Current meas­ure­ment range
    5 - 6,000 A
Power supply
  • Number of phases for power supply
    3
Func­tions
  • Accuracy class
    0.005
  • Tariff type
    Multi-tariff
  • Is calib­rated
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP2XC
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
  • Stor­age/trans­port temper­ature
    -20 - 75 °C
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration JKD1125MID (english)
PDF
103,10 kB
RoHS declaration JKD1125MID (english)
PDF
103,59 kB

Downloads

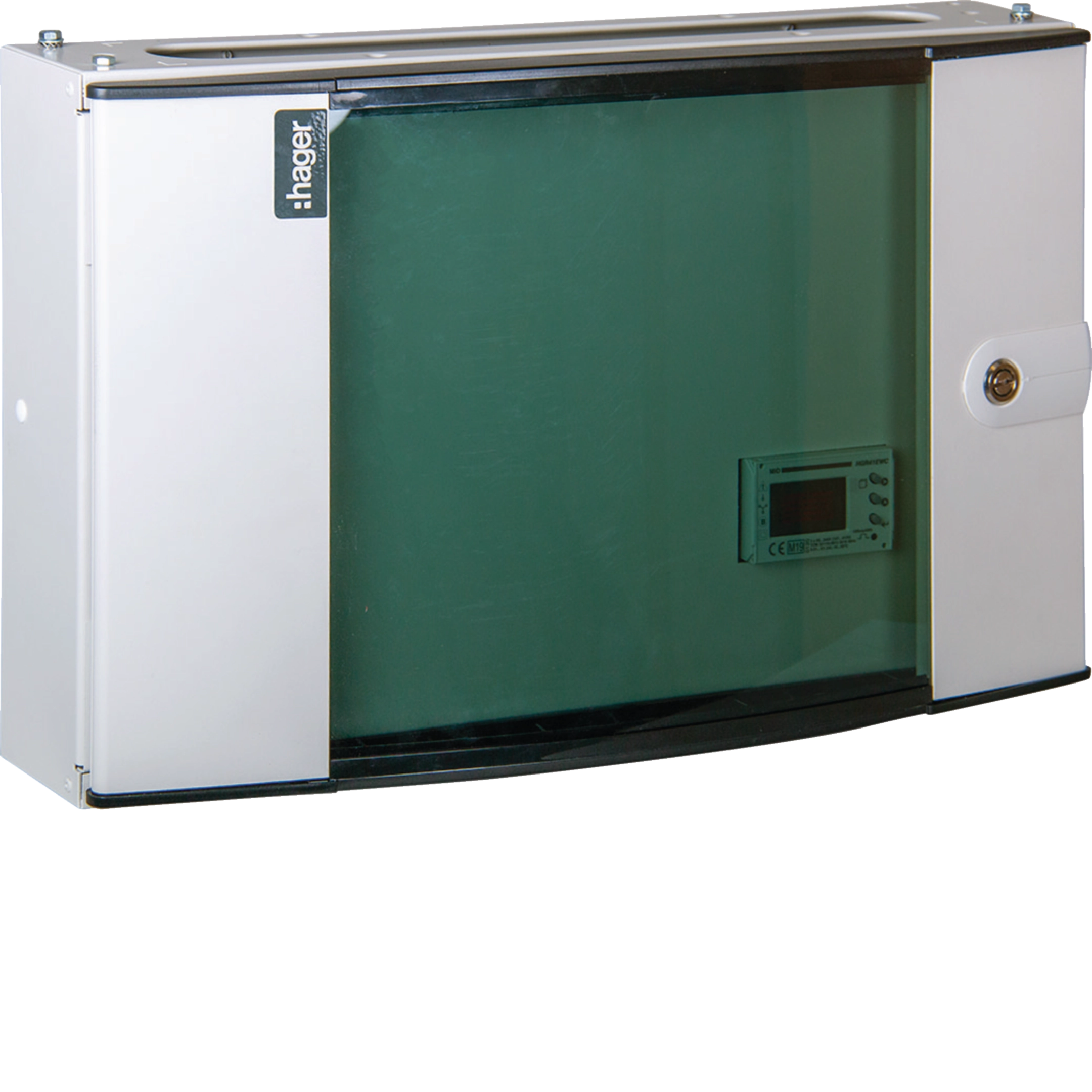

  • Product image

    Image JKD1125MID | Hager

    Product Image JKD1125MID

  • Instruction manual

    Image Instruction manual en-GB 2017-05-17 | Hager

    Instruction manual en-GB 2017-05-17

    Instruction manual en-GB 2023-03-16

    PDF
    439,44 kB

  • Installation manual

    Image Installation manual en-GB 2016-03-07 | Hager

    Installation manual en-GB 2016-03-07

    PDF
    621,53 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-11-30

    PDF
    190,53 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-04-25

    PDF
    223,43 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-03-01

    PDF
    216,78 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-07-12

    PDF
    154,64 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-07-05

    PDF
    174,09 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-02-28

    PDF
    222,60 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-04-25

    PDF
    217,32 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    219,98 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    226,05 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    158,18 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    163,96 kB
    Image Declaration of conformity International 2024-01-18 | Hager

    Declaration of conformity International 2024-01-18

    PDF
    247,14 kB
    Image Declaration of conformity International 2024-01-18 | Hager

    Declaration of conformity International 2024-01-18

    PDF
    253,21 kB
